G-31
05-E3B, 05-E3BG, WSM
G GENERAL

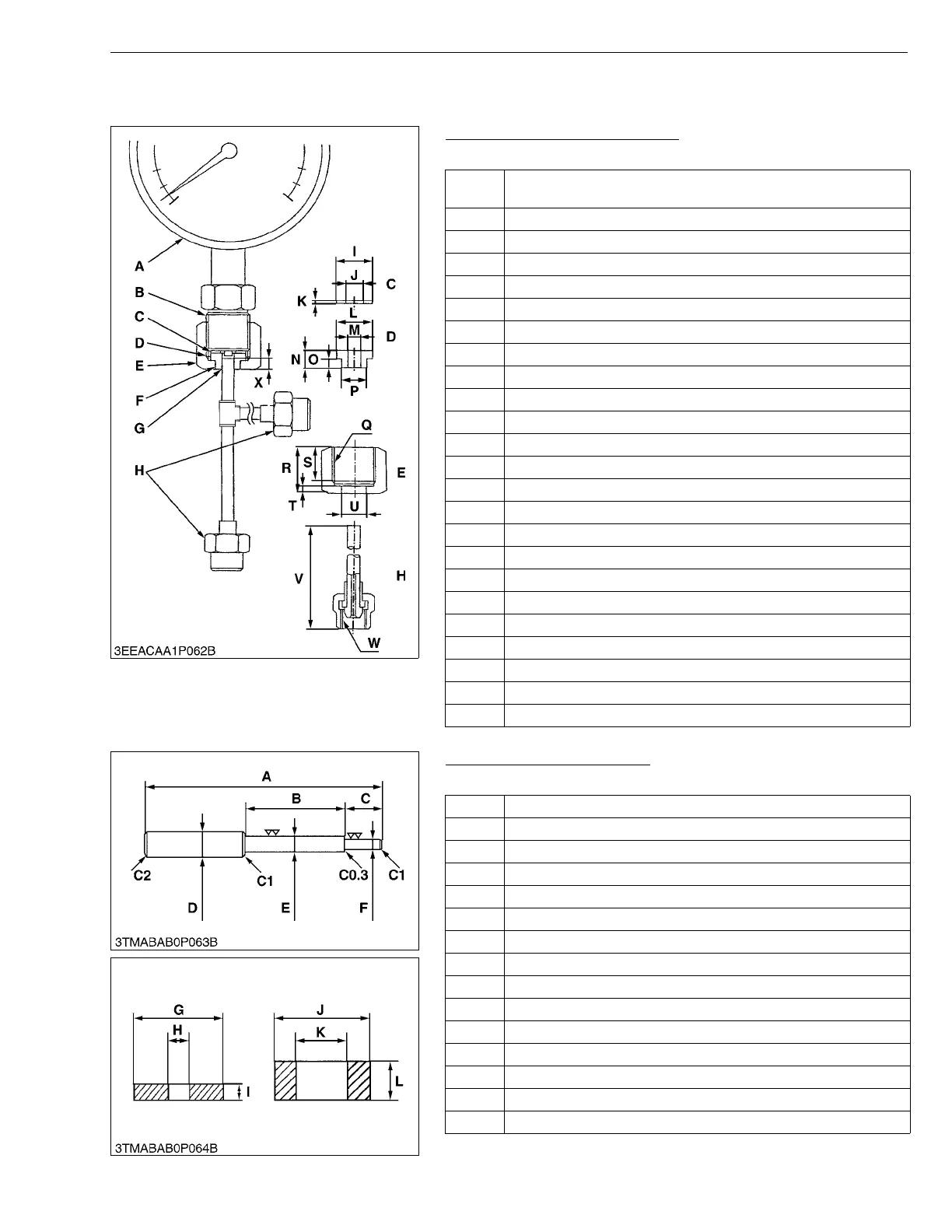

• The following special tools are not provided, so make them referring to the figure.
Injection Pump Pressure Tester
Application: Use to check fuel tightness of injection pumps.
W10252400
Valve Guide Replacing Tool
Application: Use to press out and press in the valve guide.
W10250170
A
Pressure gauge full scale : More than 29.4 MPa (300 kgf/cm
2
, 4267
psi)
B PF 1/2
C Copper gasket
D Flange (Material : Steel)
E Hex. nut 27 mm (1.1 in.) across the plat
F Adhesive application
G Fillet welding on the enter circumference
H Retaining nut
I 17 mm dia. (0.67 in. dia.)
J 8.0 mm dia. (0.31 in. dia.)
K 1.0 mm (0.039 in.)
L 17 mm dia. (0.67 in. dia.)
M 6.10 to 6.20 mm dia. (0.241 to 0.244 in. dia.)
N 8.0 mm (0.31 in.)
O 4.0 mm (0.16 in.)
P 11.97 to 11.99 mm dia. (0.4713 to 0.4720 in. dia.)
Q PF 1/2
R 23 mm (0.91 in.)
S 17 mm (0.67 in.)
T 4.0 mm (0.16 in.)
U 12.00 to 12.02 mm dia. (0.472 to 0.4732 in. dia.)
V 100 mm (3.94 in.)
W M12 × P1.5
X 5.0 mm (0.20 in.)
A 225 mm (8.86 in.)
B 70 mm (2.8 in.)
C 45 mm (1.8 in.)
D 20 mm dia. (0.79 in. dia.)
E 11.7 to 11.9 mm dia. (0.461 to 0.468 in. dia.)
F 6.50 to 6.60 mm dia. (0.256 to 0.259 in. dia.)
G 25 mm dia. (0.98 in. dia.)
H 6.70 to 7.00 mm dia. (0.264 to 0.275 in. dia.)
I 5.0 mm (0.20 in.)
J 20 mm dia. (0.79 in. dia.)
K 12.5 to 12.8 mm dia. (0.493 to 0.503 in. dia.)
L 8.90 to 9.10 mm (0.351 to 358 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.30 mm (0.012 in.)
