OC60-E2, OC95-E2, WSM PTO SHAFT DIMENSIONS
10

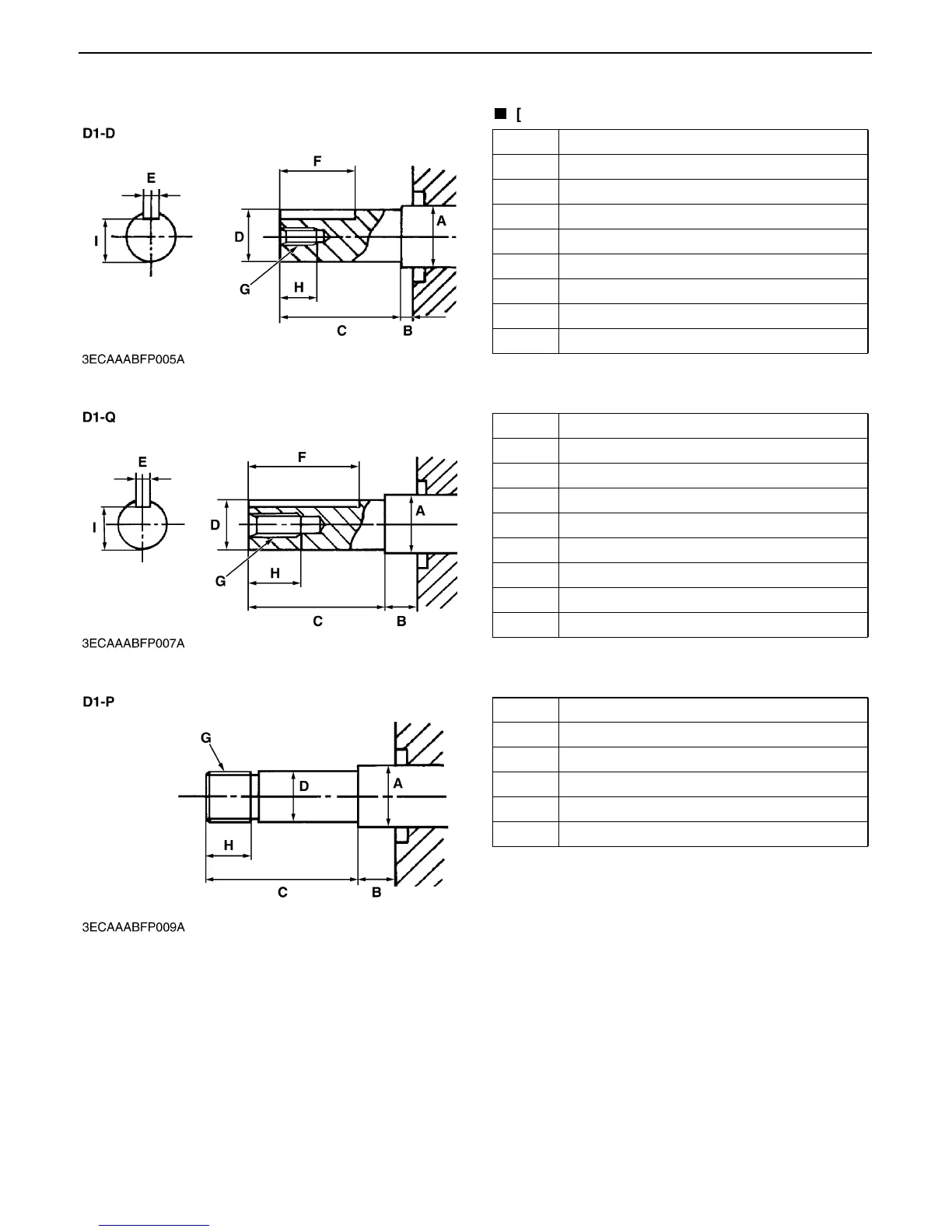

PTO SHAFT DIMENSIONS
B
[OC60-E2]
A 30 mm dia. (1.18 in. dia.)
B 2.9 mm (0.12 in.)
C 60 mm (2.36 in.)
D 24.979 to 25.000 mm dia. (0.9835 to 0.9842 in. dia.)
E 7.000 to 7.022 mm (0.2756 to 0.2764 in.)
F 38 mm (1.50 in.)
G M 8 x 1.25 mm (M 0.31 x 0.05 in.)
H 22 mm (0.87 in.)
I 20.800 to 21.000 mm (0.8189 to 0.8267 in.)
0000009667E
A 30 mm dia. (1.18 in. dia.)
B 15.7 mm (0.62 in.)
C 72.2 mm (2.84 in.)
D 25.379 to 25.400 mm dia. (0.9992 to 1.000 in. dia.)
E 6.312 to 6.342 mm (0.2486 to 0.2496 in.)
F 56 mm (2.20 in.)
G 7 / 16 - 20 UNF
H 28 mm (1.10 in.)
I 21.619 to 21.819 mm (0.8512 to 0.8590 in.)
0000009668E
A 30 mm dia. (1.18 in. dia.)
B 16.4 mm (0.65 in.)
C 72.2 mm (2.84 in.)
D 25.379 to 25.400 mm dia. (0.9992 to 1.000 in.dia.)
G1 - 14 UNS
H 25 mm (0.98 in.)
0000009669E
