OC60-E2, OC95-E2, WSM GENERAL
G-14

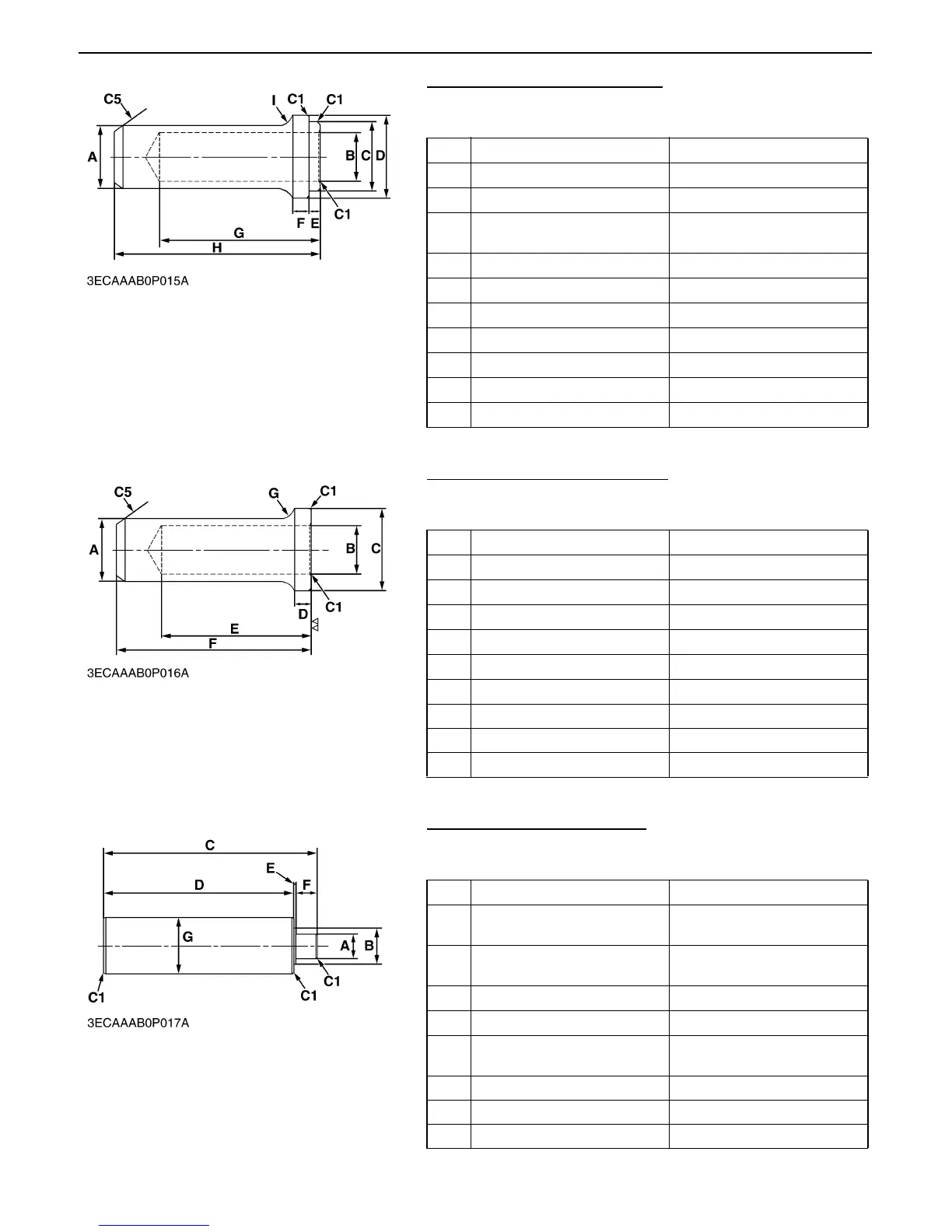

Side Cover Oil Seal Installing Tool
Application : Use to install the oil seal.
Material : S43C
Crank Case Oil Seal Installing Tool
Application : Use to install the crank case oilseal.
Material : S43C
Balancer Bearing Installing Tool
Application : Use to install the balancer bearing.
Material : S43C
OC60-E2 OC95-E2
A 40 mm dia. (1.575 in. dia.) 46 mm dia. (1.811 in. dia.)
B 31 mm dia. (1.220 in. dia.) 36 mm dia. (1.417 in. dia.)
C
44.0 to 44.3 mm dia.
(1.733 to 1.744 in. dia.)
49.0 to 49.3 mm dia.
(1.930 to 1.940 in. dia.)
D 52 mm dia. (2.047 in. dia.) 58 mm dia. (2.283 in. dia.)
E 7 mm (0.276 in.) 7 mm (0.276 in.)
F 10 mm (0.394 in.) 10 mm (0.394 in.)
G 100 mm (3.937 in.) 100 mm (3.937 in.)
H 127 mm (5.000 in.) 127 mm (5.000 in.)
I R20 mm (R0.79 in.) R20 mm (R0.79 in.)
C1 Chamfer 1 mm (0.039 in.) Chamfer 1 mm (0.039 in.)
0000009531E
OC60-E2 OC95-E2
A 40 mm dia. (1.575 in. dia.) 46 mm dia. (1.811 in. dia.)
B 31 mm dia. (1.220 in. dia.) 36 mm dia. (1.417 in. dia.)
C 52 mm dia. (2.047 in. dia.) 58 mm dia. (2.283 in. dia.)
D 10 mm (0.394 in.) 10 mm (0.394 in.)
E 100 mm (3.937 in.) 100 mm (3.937 in.)
F 120 mm (4.724 in.) 120 mm (34.724 in.)
G R20 mm (R0.79 in.) R20 mm (R0.79 in.)
C1 Chamfer 1 mm (0.039 in.) Chamfer 1 mm (0.039 in.)
C5 Chamfer 5 mm (0.20 in.) Chamfer 5 mm (0.20 in.)
0000009532E
OC60-E2 OC95-E2
A
13.8 to 13.9 mm dia.
(0.544 to 0.547 in. dia.)
15.8 to 15.9 mm dia.
(0.623 to 0.625 in. dia.)
B
19.8 to 19.9 mm dia.
(0.780 to 0.783 in. dia.)
21.8 to 21.9 mm dia.
(0.859 to 0.862 in. dia.)
C 112.5 mm (4.429 in.) 112.5 mm (4.429 in.)
D 100 mm (3.937 in.) 100 mm (3.937 in.)
E
0.4 to 0.6 mm
(0.0158 to 0.0236 in.)
0.4 to 0.6 mm
(0.0158 to 0.0236 in.)
F 12 mm (0.472 in.) 12 mm (0.472 in.)
G 30 mm dia. (1.181 in. dia.) 30 mm dia. (1.181 in. dia.)
C1 Chamfer 1 mm (0.039 in.) Chamfer 1 mm (0.039 in.)
0000009533E
