OC60-E2, OC95-E2, WSM GENERAL
G-15

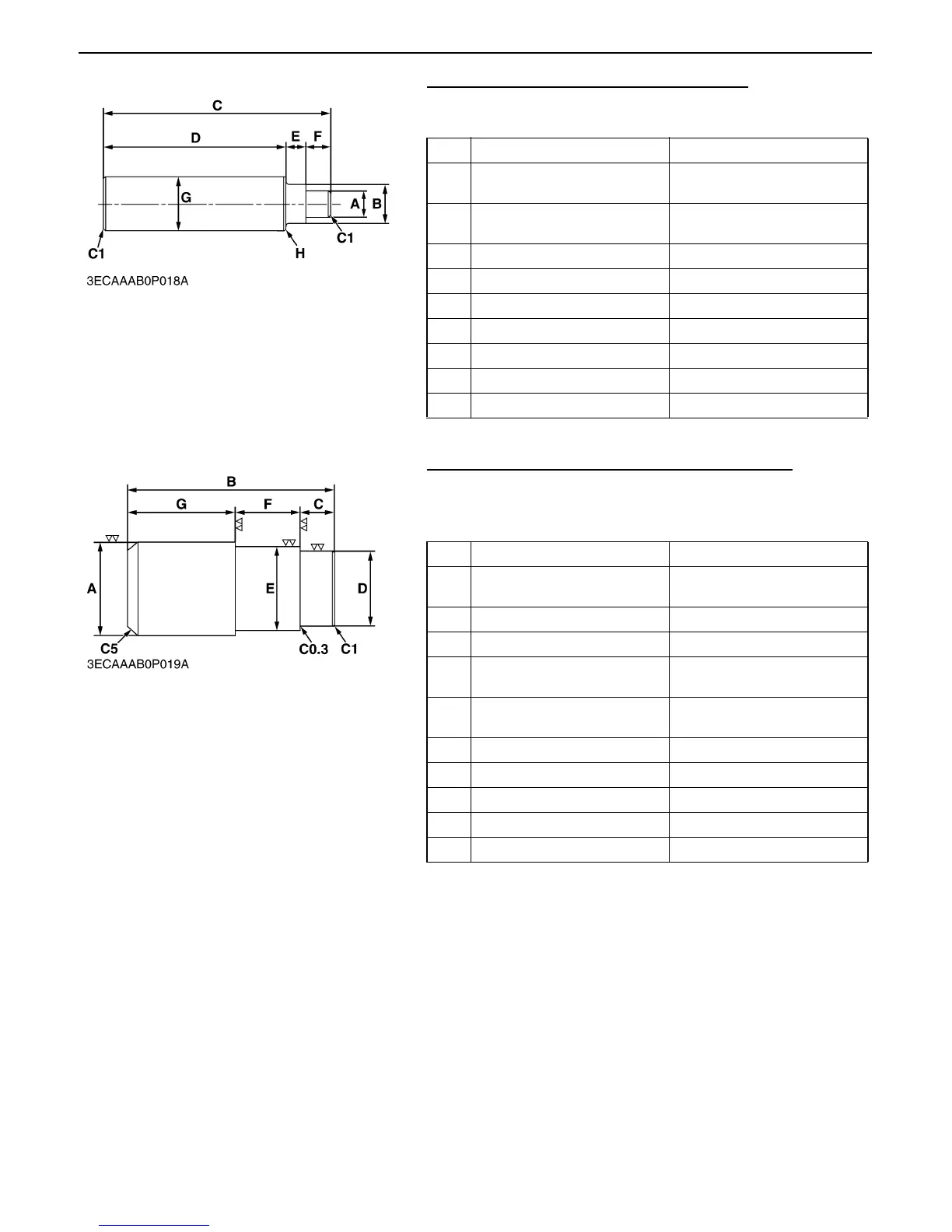

Camshaft Bearing Installing Tool (Crank Case)
Application : Use to install the camshaft bearing.
Material : S43C
Crankshaft Bearing 1 Replacing Tool (For Extracting)
Application : Use to press out and press fit the crankshaft
bearing.
Material : S43C
OC60-E2 OC95-E2
A
16.8 to 16.9 mm dia.
(0.544 to 0.547 in. dia.)
19.8 to 19.9 mm dia.
(0.780 to 0.783 in. dia.)
B
22.8 to 22.9 mm dia.
(0.898 to 0.901 in. dia.)
25.8 to 25.9 mm dia.
(1.016 to 1.019 in. dia.)
C 122 mm (4.803 in.) 122 mm (4.803 in.)
D 100 mm (3.937 in.) 100 mm (3.937 in.)
E 10 mm (0.394 in.) 10 mm (0.394 in.)
F 12 mm (0.472 in.) 12 mm (0.472 in.)
G 30 mm dia. (1.181 in. dia.) 30 mm dia. (1.181 in. dia.)
H R2 mm (R0.08 in.) R2 mm (R0.08 in.)
C1 Chamfer 1 mm (0.039 in.) Chamfer 1 mm (0.039 in.)
0000009534E
OC60-E2 OC95-E2
A
43.7 to 44.3 mm dia.
(1.721 to 1.744 in. dia.)
48.7 to 49.3 mm dia.
(1.918 to 1.940 in. dia.)
B 95 mm (3.740 in.) 96 mm (3.780 in.)
C 15 mm (0.590 in.) 16 mm (0.630in.)
D
34.6 to 34.9 mm dia.
(1.363 to 1.374 in. dia.)
39.6 to 39.9 mm dia.
(1.560 to 1.570 in. dia.)
E
38.7 to 38.9 mm dia.
(1.524 to 1.531 in. dia.)
43.7 to 43.9 mm dia.
(1.721 to 1.728 in. dia.)
F 30 mm (1.181 in.) 30 mm (1.181 in.)
G 50 mm (1.969 in.) 50 mm (1.969 in.)
C0.3 Chamfer 0.3 mm (0.012 in.) Chamfer 0.3 mm (0.012 in.)
C1 Chamfer 1 mm (0.039 in.) Chamfer 1 mm (0.039 in.)
C5 Chamfer 5 mm (0.20 in.) Chamfer 5 mm (0.20 in.)
0000009535E
