OC60-E2, OC95-E2, WSM GENERAL
G-16

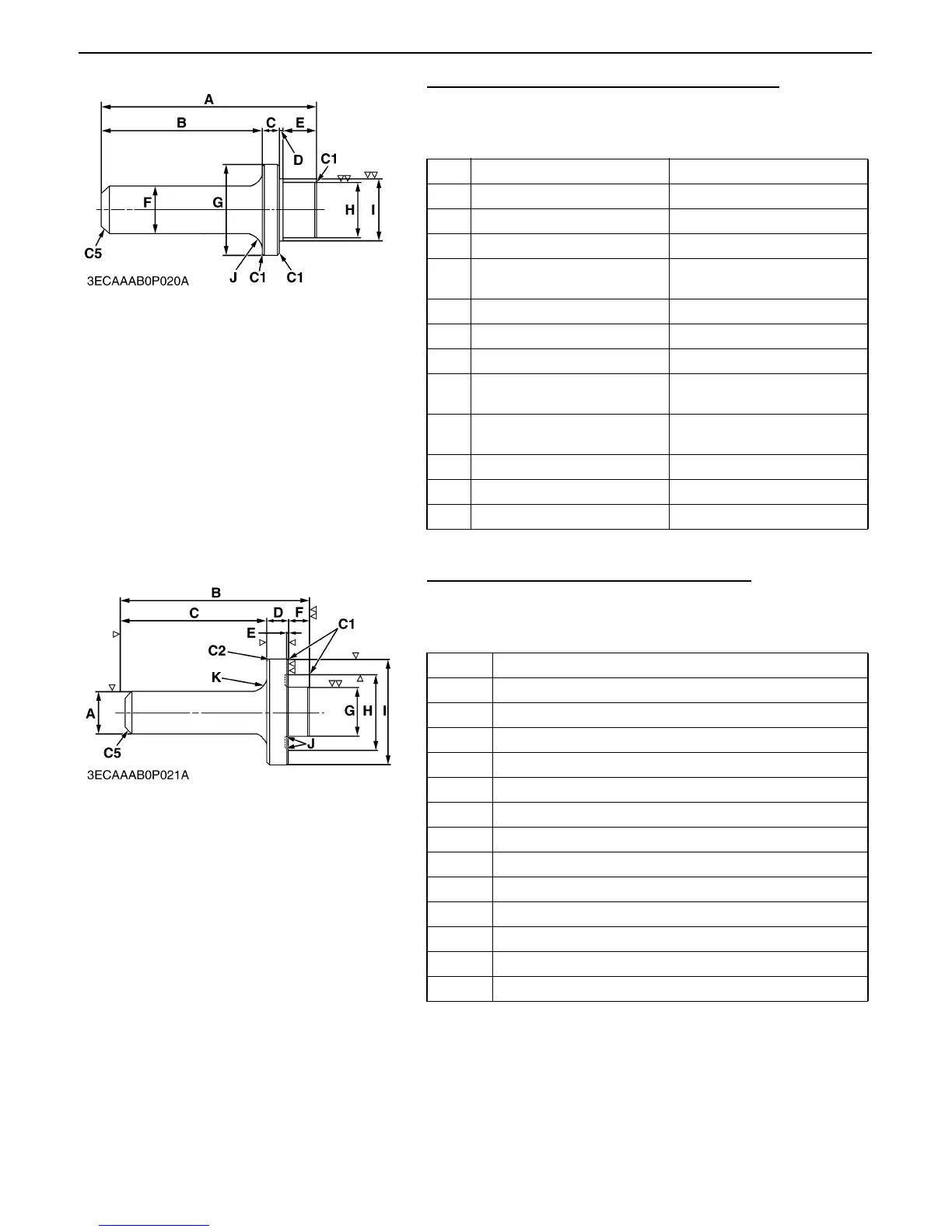

Crankshaft Bearing 1 Replacing Tool (for Installing)
Application : Use to press out and press fit the crankshaft
bearing.
Material : S43C
Crankshaft Bearing Installing Tool (Side Cover)
Application : Use to install the camshaft bearing.
Material : S43C
Model : OC95-E2
OC60-E2 OC95-E2
A 133.5 mm (5.256 in.) 133.5 mm (5.256 in.)
B 100 mm (3.937 in.) 100 mm (3.937 in.)
C 10 mm (0.394 in.) 10 mm (0.394 in.)
D
0.9 to 1.1 mm
(0.0355 to 0.0433 in.)
0.4 to 0.6 mm
(0.0158 to 0.0236 in.)
E 21 mm (0.827 in.) 23 mm (0.906 in.)
F 30 mm dia. (1.181 in. dia.) 30 mm dia. (1.181 in. dia.)
G 57 mm dia. (2.244 in. dia.) 57 mm dia. (2.244 in. dia.)
H
34.7 to 34.9 mm dia.
(1.367 to 1.374 in. dia.)
39.7 to 39.9 mm dia.
(1.563 to 1.570 in. dia.)
I
38.7 to 38.9 mm dia.
(1.524 to 1.531 in. dia.)
43.7 to 43.9 mm dia.
(1.721 to 1.728 in. dia.)
J R10 mm (R0.39 in.) R10 mm (R0.39 in.)
C1 Chamfer 1 mm (0.039 in.) Chamfer 1 mm (0.039 in.)
C5 Chamfer 5 mm (0.20 in.) Chamfer 5 mm (0.20 in.)
0000009537E
A 30 mm dia. (1.181 in. dia.)
B 130 mm (5.118 in.)
C 100 mm (3.937 in.)
D 15 mm (0.590 in.)
E 2 mm (0.0787 in.)
F 15 mm (0.590 in.)
G 34.7 to 34.9 mm dia. (1.367 to 1.374 in. dia.)
H 55 mm dia. (2.165 in. dia.)
I 75 mm dia. (2.953 in. dia.)
J R2 mm (R0.079 in.)
K R10 mm (R0.39 in.)
C1 Chamfer 1 mm (0.039 in.)
C2 Chamfer 2 mm (0.079 in.)
C5 Chamfer 5 mm (0.20 in.)
0000009538E
