OC60-E2, OC95-E2, WSM GENERAL
G-17

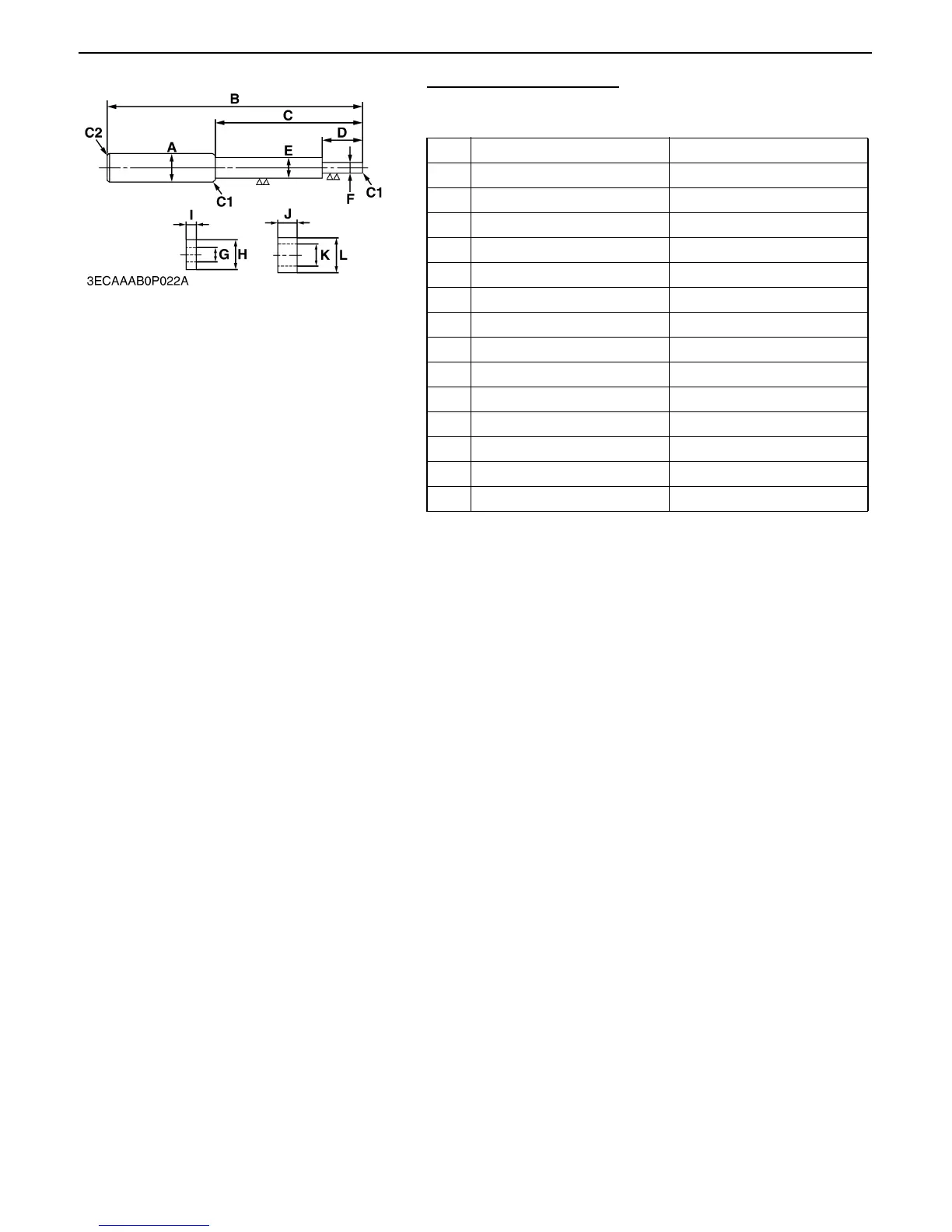

Valve Guide Replacing Tool
Application : Use to press out and press fit the valve guide.
Material : S43C
OC60-E2 OC95-E2
A 20 mm dia. (0.787 in. dia.) 20 mm dia. (0.787 in. dia.)
B 200 mm (7.874 in.) 200 mm (7.874 in.)
C 120 mm (4.724 in.) 120 mm (4.724 in.)
D 40 mm (1.575 in.) 40 mm (1.575 in.)
E 10 mm dia. (0.394 in. dia.) 11 mm dia. (0.433 in. dia.)
F 5.7 mm dia. (0.224 in. dia.) 6.4 mm dia. (0.252 in. dia.)
G 6 mm dia. (0.236 in. dia.) 6.7 mm dia. (0.264 in. dia.)
H 15 mm dia. (0.590 in. dia.) 15 mm dia. (0.590 in. dia.)
I 5 mm (0.197 in.) 5 mm (0.197 in.)
J 8 mm (0.315 in.) 8.5 mm (0.335 in.)
K 12.1 mm dia. (0.476 in. dia.) 12.1 mm dia. (0.476 in. dia.)
L 18 mm dia. (0.709 in. dia.) 18 mm dia. (0.709 in. dia.)
C1 Chamfer 1 mm (0.039 in.) Chamfer 1 mm (0.039 in.)
C2 Chamfer 2 mm (0.080 in.) Chamfer 2 mm (0.080 in.)
0000009539E
