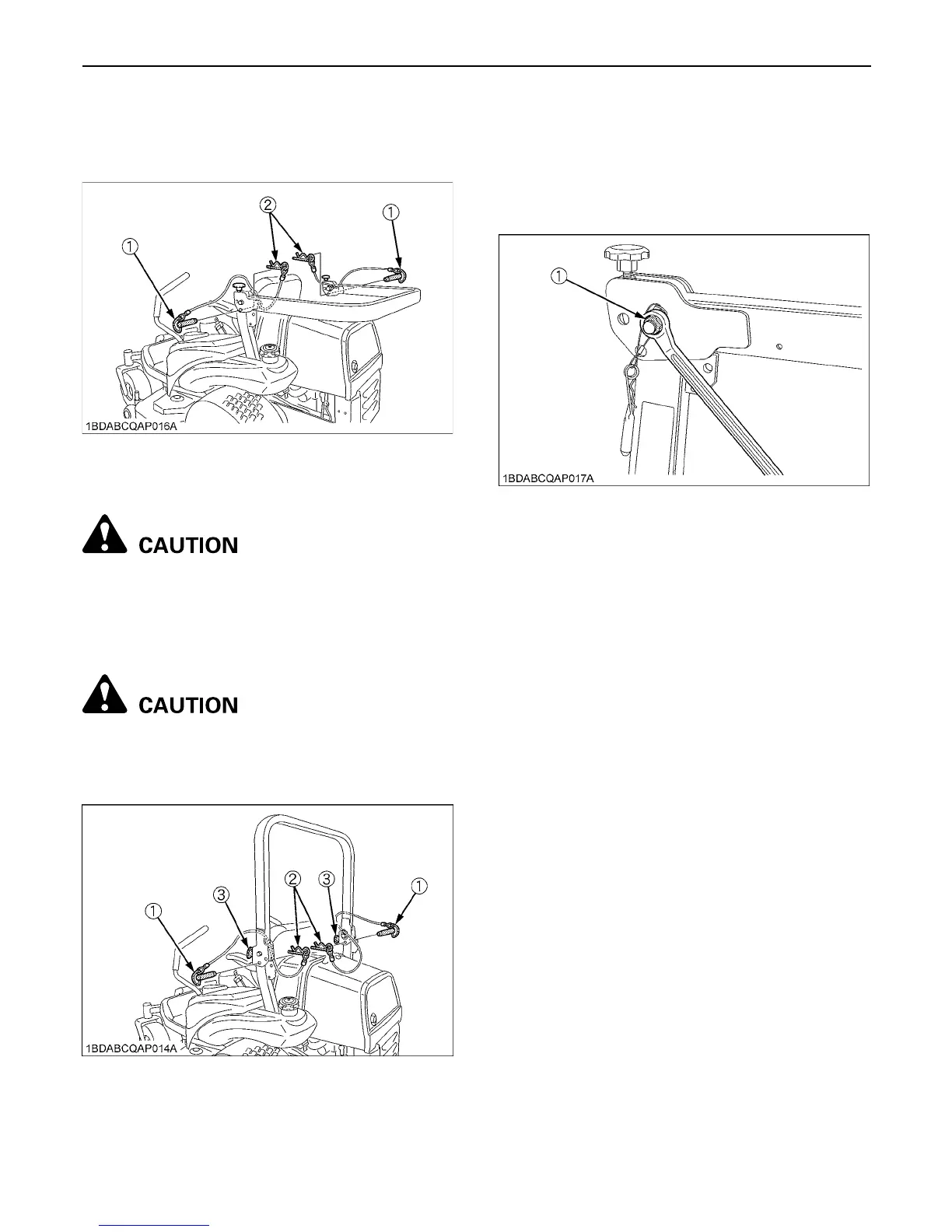

21OPERATING THE MACHINE
BTo Raise the ROPS to Upright Position
1. Remove both hair pins and lock pins.
2. Raise ROPS to the upright position.
To avoid personal injury:
A Raise the ROPS slowly and carefully.
3. Align lock pin holes, insert both lock pins and secure
them with the hair pins.
4. Tighten the knob bolts slightly.
To avoid personal injury:
A Make sure that both lock pins are properly
installed as soon as the ROPS is in the upright
position and secured with the hair pins.
BAdjustment of Foldable ROPS
A Adjust free fall of the ROPS upper frame regularly.
A If you feel less friction when folding the ROPS, tighten
the nut (1) until you feel the right friction in the
movement and then replace the cotter pin.
(1) Lock pin
(2) Hair pin
(1) Lock pin
(2) Hair pin
(3) Knob bolt
(1) Nut
