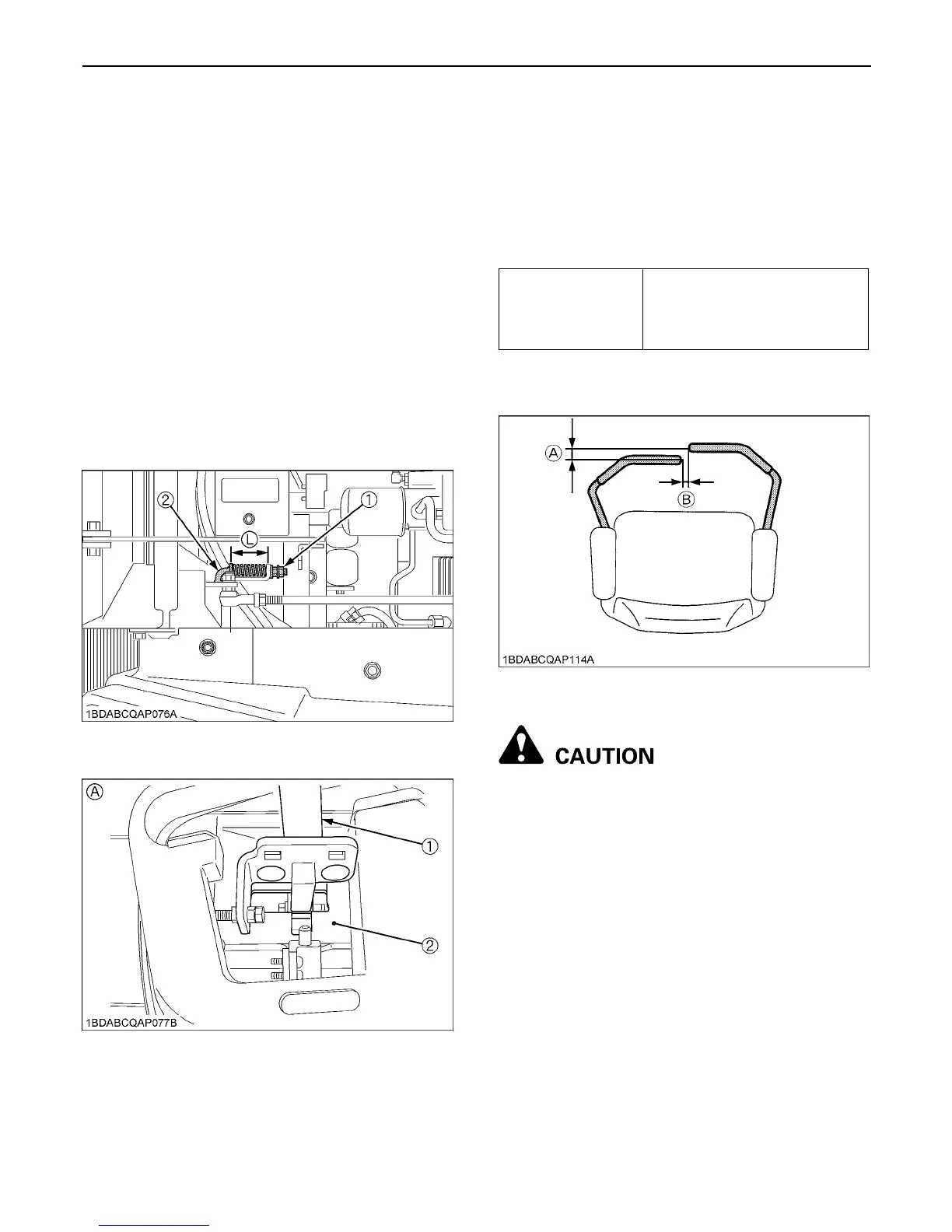

71ADJUSTMENT
BMOTION CONTROL LEVER NEUTRAL
POSITION
1. Lift-up and secure with jack stands or blocking the rear
of the machine frame.
2. Remove both rear wheels.
3. Start the engine, and run at maximum speed.
4. Place the lever in the "NEUTRAL" position.
5. Pull the lever to the reverse maximum position and
release the lever.
6. Measure the axle rotation.
7. Loosen the lock nut and adjust the speed control bolt
length so that the axle rotation would stop.
8. Tighten the lock nut.
9. Check the axle rpm again.
If it is not correct, adjust again.
10.Adjust the other side equally.
11.After adjustment, be sure to stop the engine
immediately.
BMAXIMUM SPEED (FORWARD)
Consult your local KUBOTA Dealer for this service.
BMOTION CONTROL LEVER ALIGNMENT
C Check the alignment
Check the gap and space between the levers, at the
maximum forward position.
If positions of the control levers are unequal, an
adjustment is necessary.
To avoid personal injury;
A Park the machine on a firm and level surface.
A Stop the engine, remove the key and apply the
parking brake.
(1) Lock nut
(2) Speed control bolt
(L) 50 mm (2.0 in.)
(1) Motion control lever
(2) Guide plate
(A) "NEUTRAL" position
(hands off)
Recommendation
Gap: 0 to 2 mm
(0 to 0.08 in.)
Space:10 to 20 mm
(0.4 to 0.8 in.)
(A) "GAP"
(B) "SPACE"
