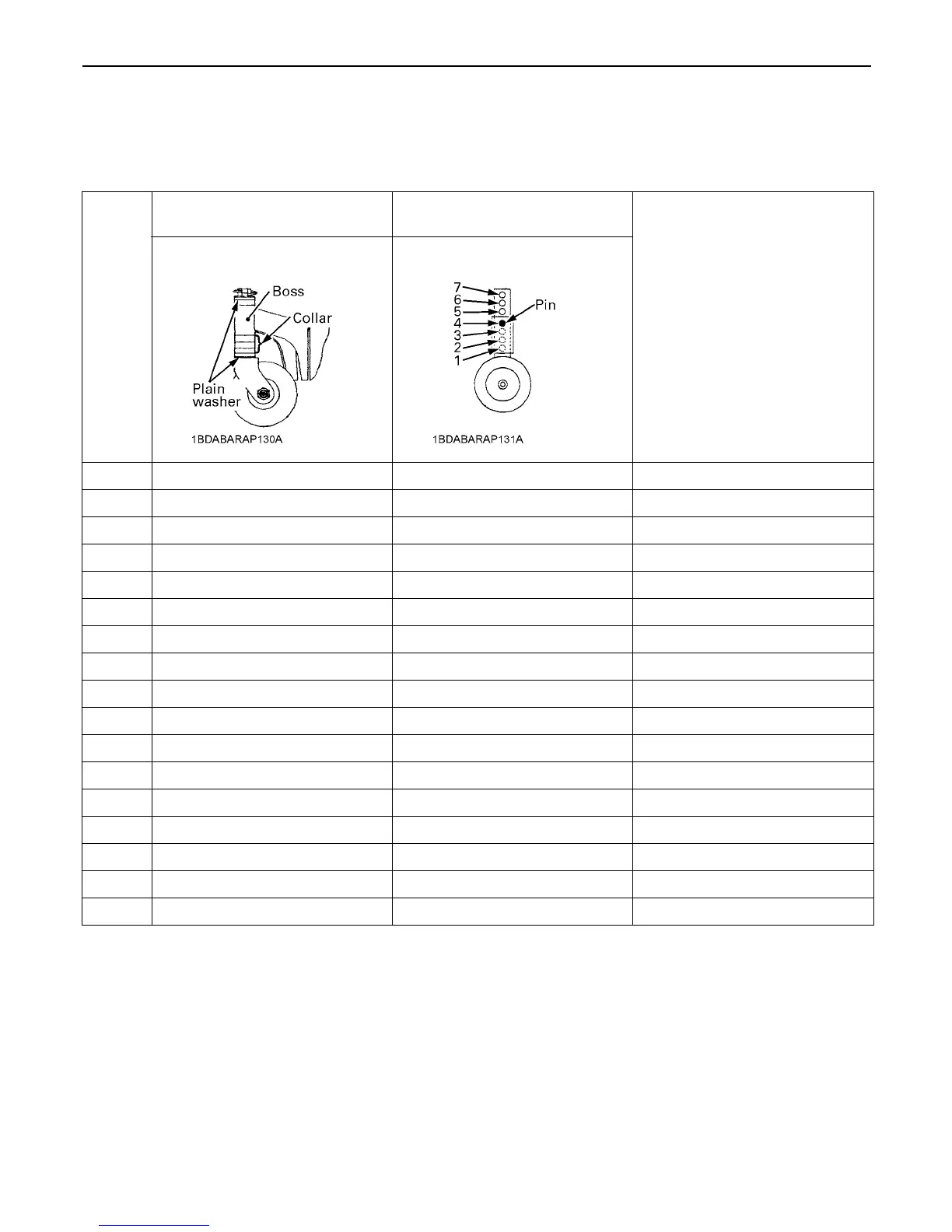

31OPERATING THE MOWER
Reference
A Set position for recommended ground clearance 19 mm (3/4 in.).
(Figure shows setting position of cutting height 3")
Cutting
height
The number of collars under the
boss
Position of
pins
Ground
clearance
1.00" 0 1 6 mm
1.25" 0 2 13 mm
1.50" 0 1 19 mm
1.75" 1 3 13 mm
2.00" 1 2 19 mm
2.25" 2 4 13 mm
2.50" 2 3 19 mm
2.75" 3 5 13 mm
3.00" 3 4 19 mm
3.25" 4 6 13 mm
3.50" 4 5 *2 19 mm
3.75" 4 7 *3 13 mm
4.00" 4 6 *3 19 mm
4.25" 4 7 *3 13 mm
4.50" 4 7 *3 19 mm
4.75" 4 7 *3 25 mm
5.00" 4 7 *3 31 mm
*1. Marked dimension shows ground clearance of bolt shift type.
*2. For cutting heights above 3.5". The anti-scalp rollers will still be effective against scalping.
*3. Use it if necessary.
A Only at cutting height 1" is ground clearance 6 mm.
To Next Page
