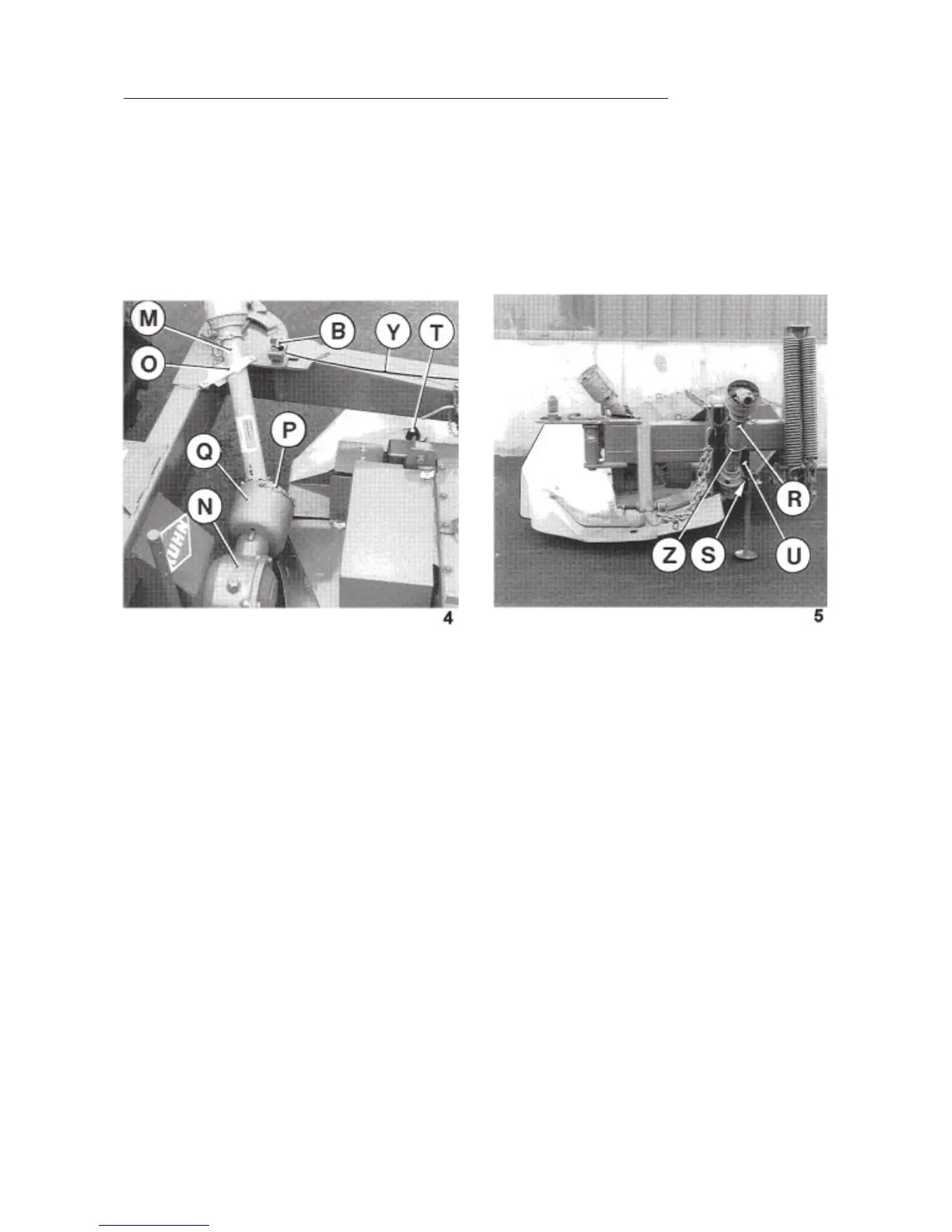

Fitting the shock absorber and the PTO shafts (photos 4 and 5)
Fit shock absorber (T) with washer (M 8) and self-locking nut (M 8) (photo 4).
Fit the intermediate PTO shaft (M) to the primary gearbox (N) and secure the opposite
end with strap (O) (photo 4). Attach the safety chain (P) to protection cone (Q) in
order to stop the guards of the PTO shaft from rotating (photo 4). Fit the primary
PTO shaft (R) making sure that the free wheel (overrun clutch) is fitted to the machine
side (photo 5). Attach the safety chain (S) to the 3-point frame (U). Support the
PTO shaft (R) using hook (Z) (photo 5).
