- 32 -

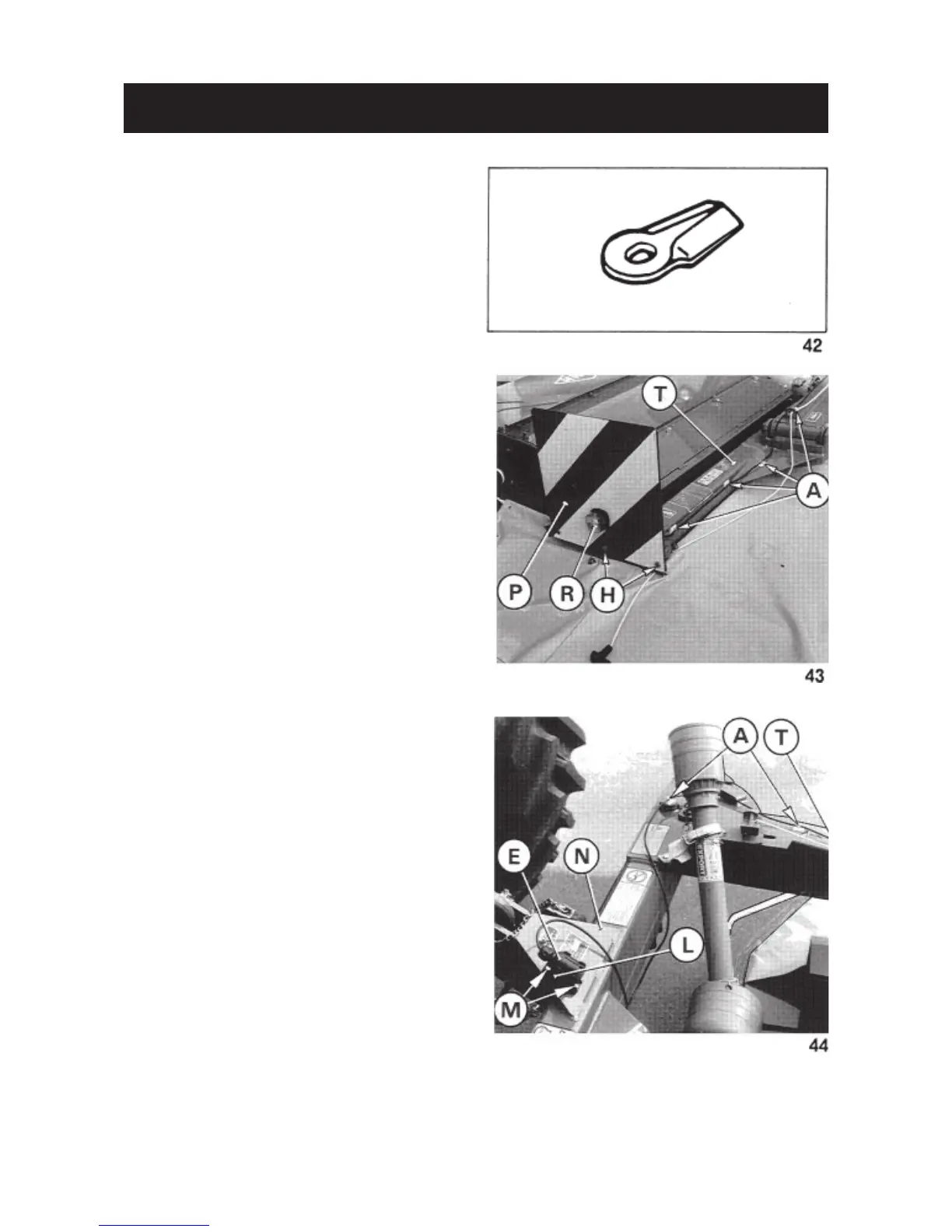

I) RIGIDIFIED BLADES (Fig. 42)
(ref. 564 516 00)
We recommend to use the rigidified
blades for mowing in difficult condi-
tions. They must be fitted in place of
the standard blades.
II. SIGNALLING ELEMENTS
(Kit No. 108 6590)
According to the legislation of a given
country, this kit may either be supplied
as standard equipment, or be available
as an optional extra.
To install the kit, proceed as
follows :
- Attach the rear warning board (P) to
the box section frame end plate (T)
with two hexagon bolts (H)(M10x20), 2
plain washers (dia 11x24x2) and two
self-locking nuts (M10) as shown in
photo 43.
- Attach tail lamp (R) to warning board
(P).
- Lay out wiring harness as shown in
photos 43 and 44 and fix onto frames (T)
and (N) with clamp collars and their
self-sticking supports (A). Avoid situ-
ations where the cables can be trapped
or stretched.
- Attach plug holder (L) to 3-point frame
(N) with 2 screws (M)(M6x30) and 2
self-locking nuts (M6)(photo 44).
NOTE : - The signalling element kit re-
quires a 7 pin socket at the
rear of the tractor.
- When detaching the implement,
place plug (E) in holder
(L)(photo 44).
OPTIONAL EQUIPMENT
