NOTE : To drain the cutterbar, first let the bar turn for 10 minutes so that the oil
warms up. Remove end plate (fig. 35) and tilt the cutterbar so that the oil
can run out freely.
Grease the following pivot points every 20 hours with SHELL Multi-Purpose grease NLGI
grade 2 :
- Horizontal pivot - chassis (U) (photo 15).
- Vertical pivot - chassis (U) (photo 15).
- Lower left-hand link bracket - 3-point frame (Z) (photo 6).
- Pulley pivot - drive belt self-tensioner (V) (FC 202) (photo 22).
- Bearings and drive chains of conditioning rollers (4 grease nipples) (FC 202 R).
The bearings are located at the ends of the conditioning rollers.
Note : The gearbox of the upper roller drive (FC 202 R) ist greased for life.
Oil all pivot and articulation points every day of operation.
PTO SHAFT

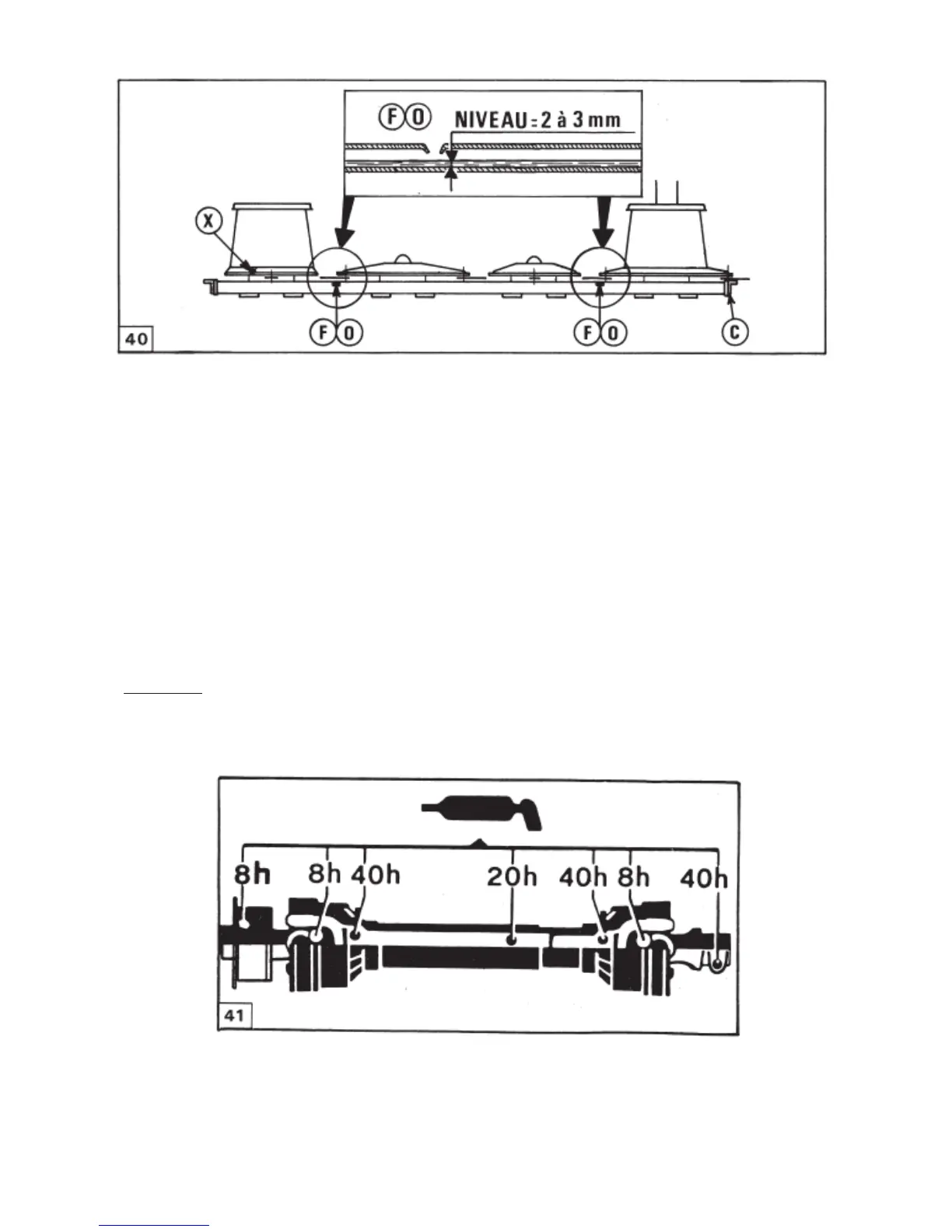

Grease the PTO shaft with SHELL Multi-Purpose grease NLGI grade 2 at the hourly
intervals indicated (fig. 41).
ATTENTION : These times have been calculated for working in normal conditions. If
the conditions are abnormal or severe, grease more often.
FOR TROUBLE FREE OPERATION OF YOUR MACHINE, WE RECOMMEND THE USE OF SHELL PRODUCTS.
