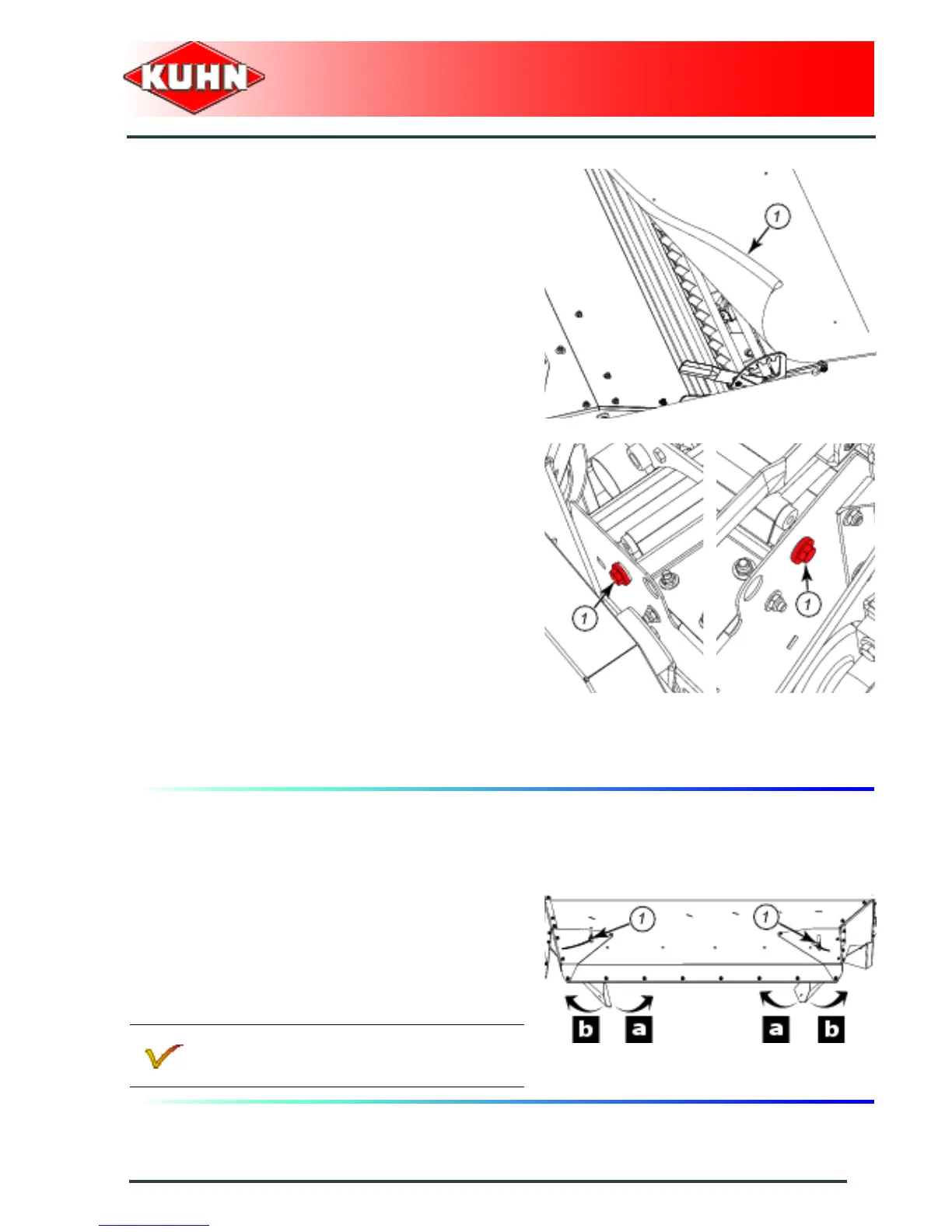

Instructions for work
Mower conditioner
FC243
45
Fold the front guard cover (1).
Remove 2 bolts (1).
Pivot and position the conditioning hood opposite the
free hole.
Reinstall bolts (1).
Reassemble the unit.
Swathing system
The swathing system comprises:
- 2 swath shields.
Swath width adjustment:
- Loosen 2 handles (1):
• Pivot swath shields inwards to reduce the swath
width (a).
• Pivot swath shields outwards to increase the swath
width (b).
- Tighten 2 handles (1).
The swath width can be adjusted of
approximately 0.90 m (2’11’’) to 1.40 m (4’7’’).
