Mower conditioner
56
FC243
Maintenance and storage

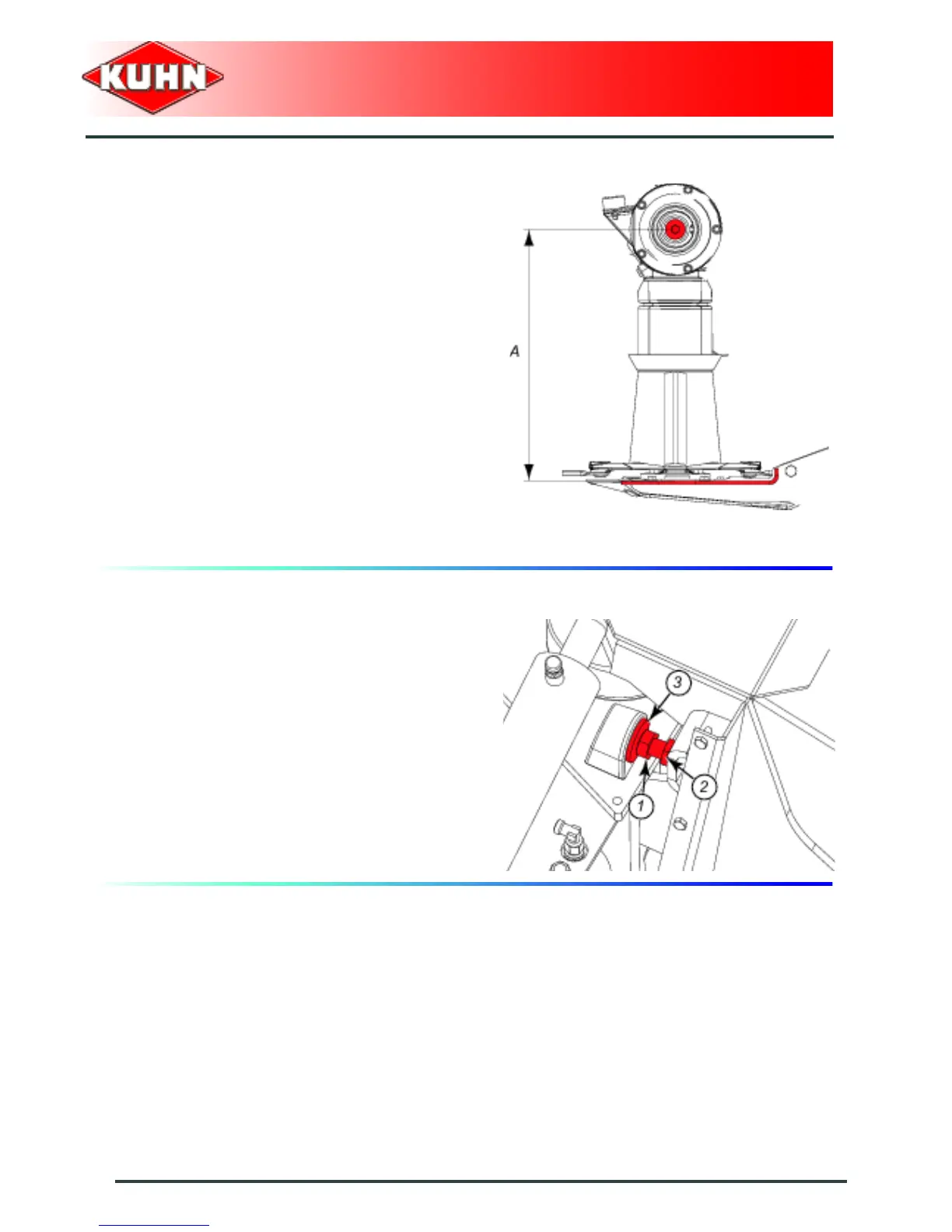

The side gearbox drive system
Following all service operations on the drive system,
check that the distance between the side gearbox drive
shaft and the upper side of the cutterbar stiffener equals
measure A =577 mm / 1’10’’ +/- 4 mm / 0.16’’.
Transport stop
The transport stop (1) limits the machine's oscillation
during transport.
Adjustment:
- Place the machine in transport position.
- Loosen counter nut (2).
- Bring stop (1) in contact with damper (3).
- Give transport stop (1) one or two preload turns.
- Tighten counter nut (2).
Replacement:
Replace damper (3) when worn or when it no longer has
a dampening effect Part no. 56864500.
