11. - Maintenance and storage
KN281CGB_L
Mower conditioner
If in doubt as to the oil quantity contained in
the cutterbar, fully drain and refill cutterbar
respecting recommended oil quantity and
quality.
- Following all service operations or in case
of an oil leak, empty and refill cutterbar.
- Before draining oil, operate the machine for a
few minutes so that the oil warms up.
FC2860TLD FC3160TLD FC3560TLD
Type of oil Gear oil
Oil volume 3.0-L (0.79 US
gal)
3.5-L (0.92 US
gal)
4-L (1.06 US gal)
Viscosity 75W90
Specification API-GL5 (extreme pressure)

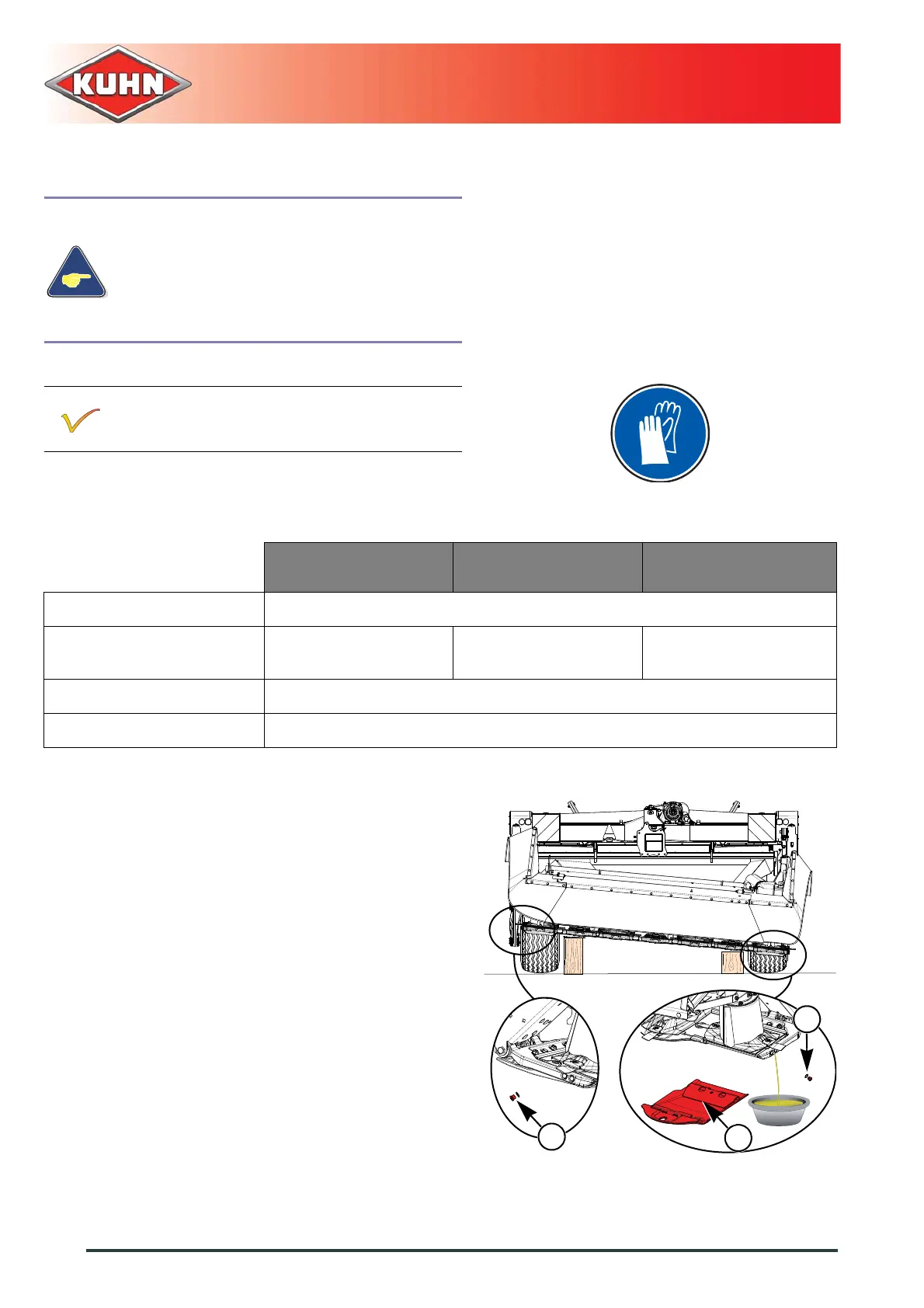

From the transport position:
- Unlock and raise side guards.
- Using two wedges of different height, rest the
cutterbar higher on opposite side of drain plug.
- Remove skid shoe (1).
- Place a container of sufficient capacity under drain
plug.
- Remove filler plug (2) and its washer.
- Remove drain plug (3) and its washer.
- Allow oil to drain completely.
- Wait for dripping to stop.
- Clean and reinstall drain plug (3) and its
washer. Replace if necessary.
- Pour the correct oil quantity and quality through the
opening of the filler plug.
- Clean and reinstall filler plug (2) and its
washer. Replace if necessary.
- Reinstall skid shoe (1).
- Lower and lock side guards.
1
2
3
