KUHN GMD24 - Page 44

GMD24-GMD28 / HD
44
6. - Putting into service
KN226BGB_A
Disc mower

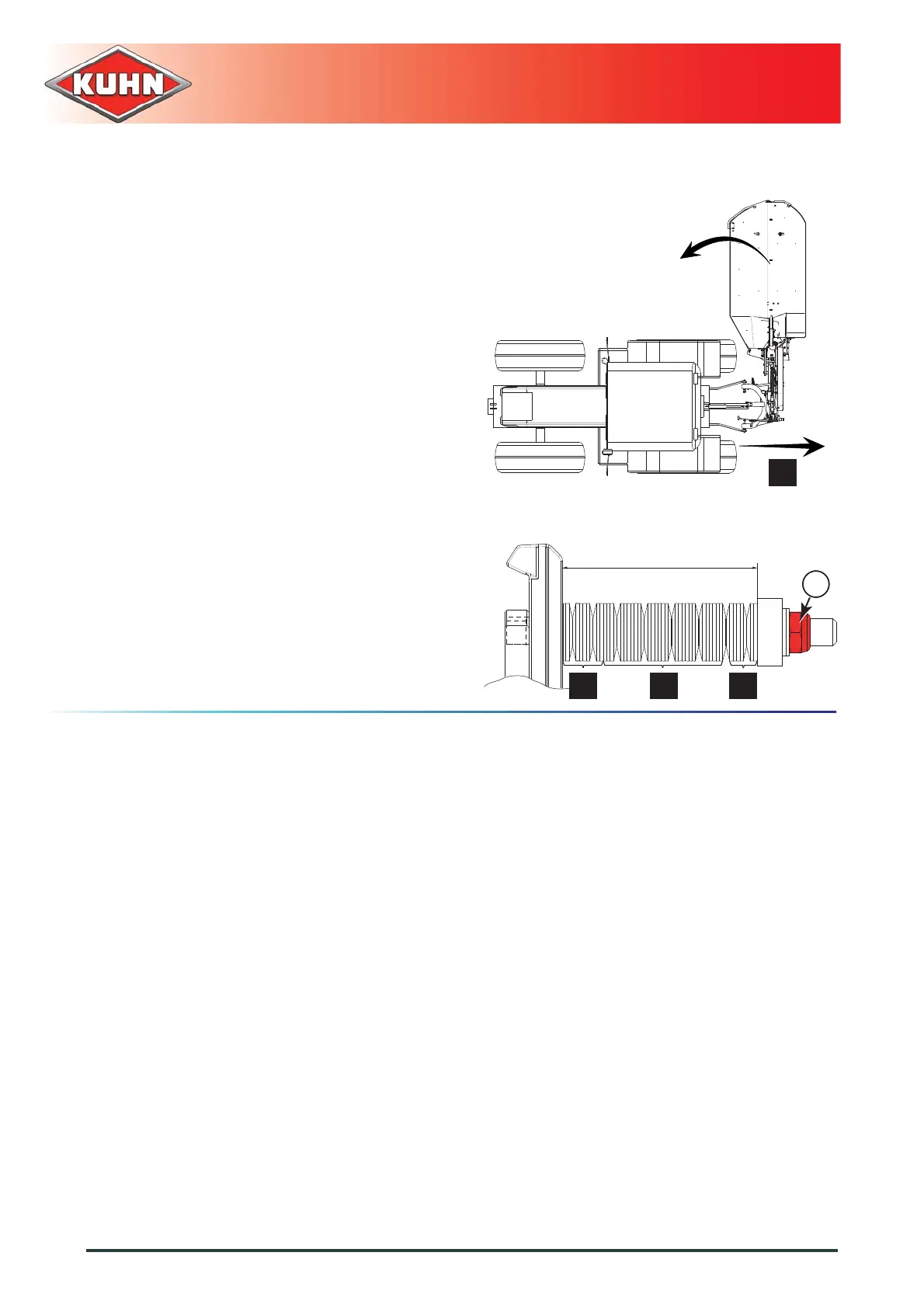

The safety breakback is reset by reversing (a).
- If the safety breakback releases after reset, tighten
screw (1) to increase spring washer compression.
Basic adjustments:
L= 94 mm (3.7’’).
a = 4 times 2 washers.
b = 9 times 3 washers.
c = 3 times 2 washers.
a
L
1
a
b
c
