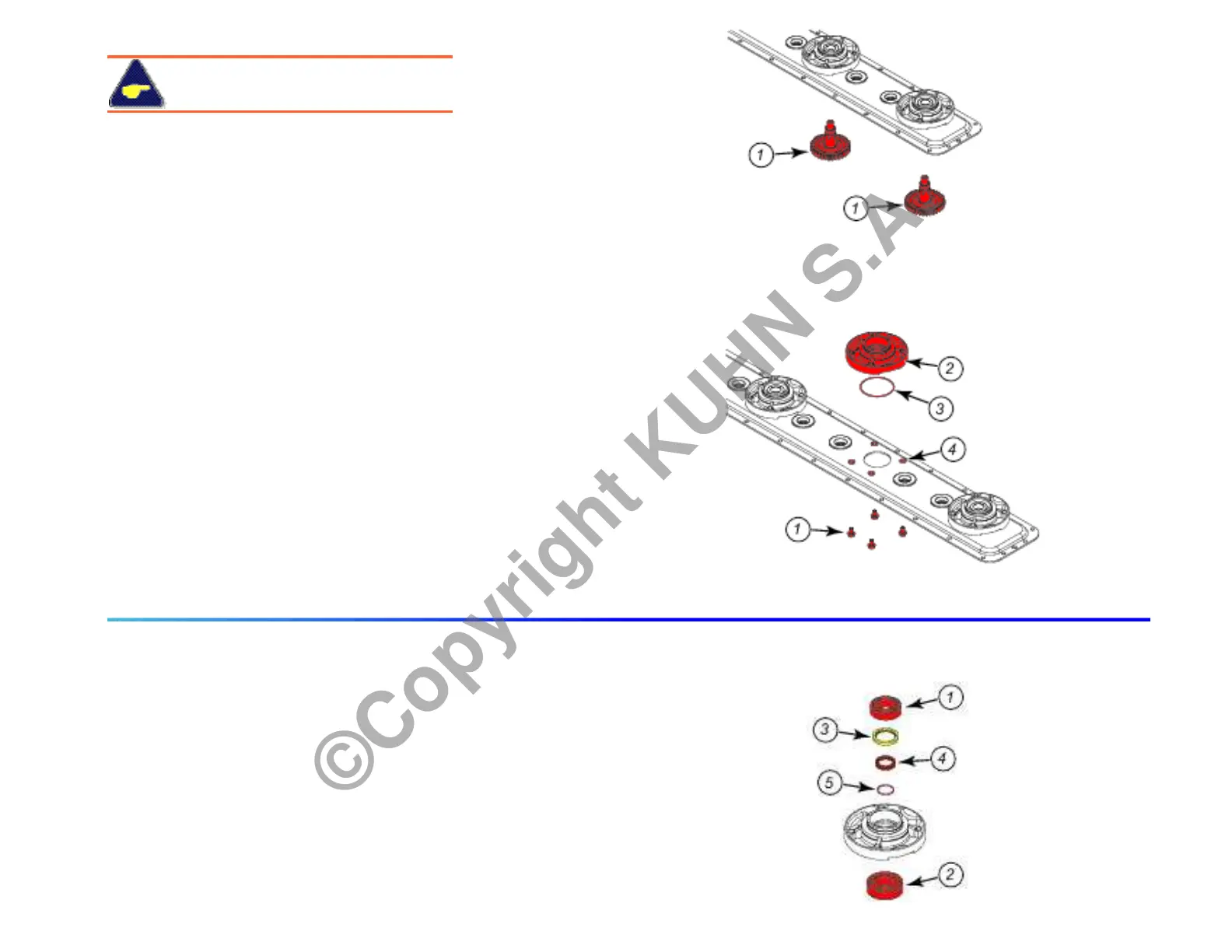

Drive helical pinions (1) out.
Remove disk bearing housings.
Remove 4 bolts (1).
Removing disk housing (2).
Remove o - rings (3) and (4).
Note position of helical pinions.
Step 7.
Remove bearings (1) and (2) with a bearing extractor.
Specific tools Part no. 83450009.
Remove o - ring (3).
Remove spacer (4).
Remove O - ring (5).
