From 760001 to 786383.

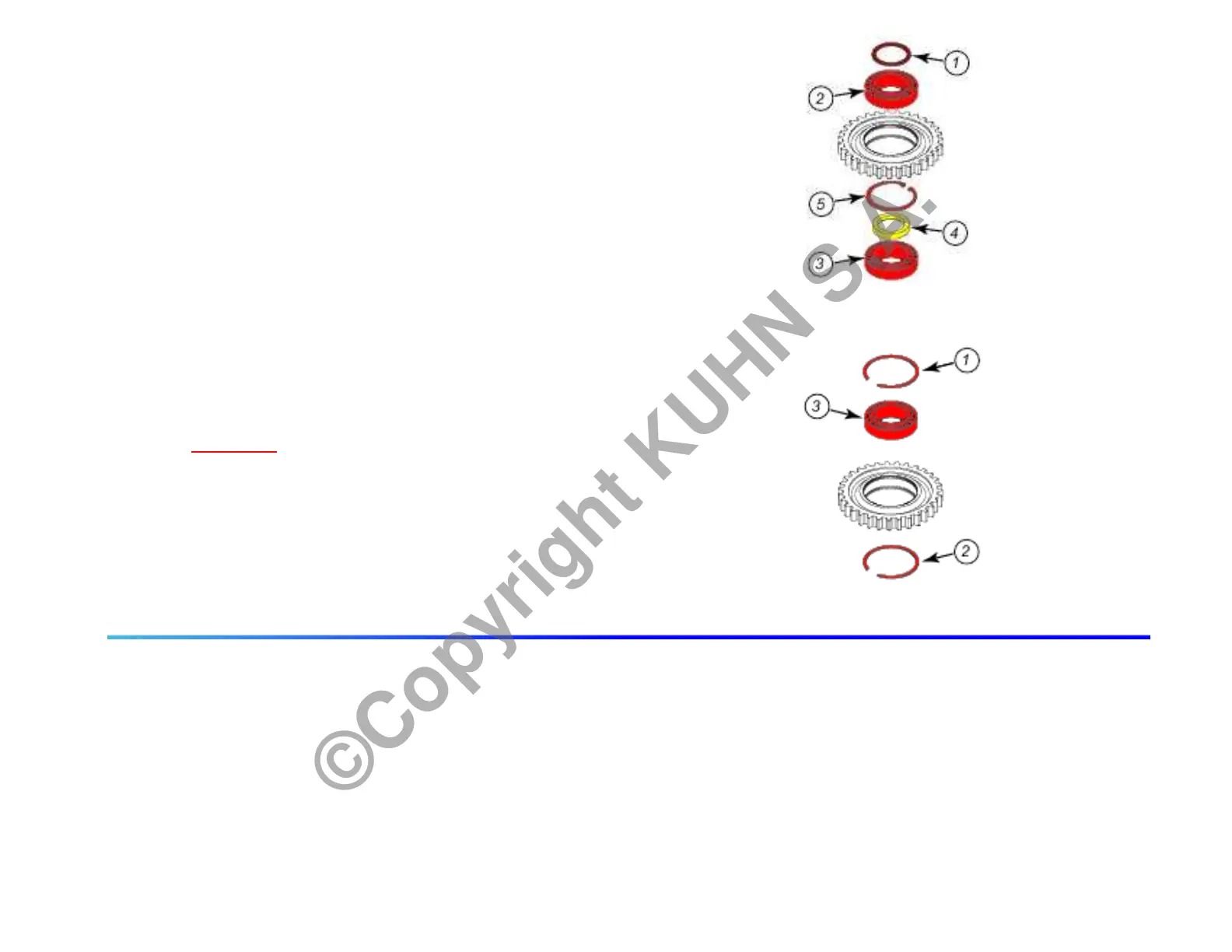

Remove shim ring (1).
Remove bearing (2).
Remove bearing (3).
Remove spacer (4).
Remove circlip (5).
From 786384 to .......
Remove snap rings (1) and (2).
Remove bearing (3).
See sheet.
Step 9.
Remove drive shaft
