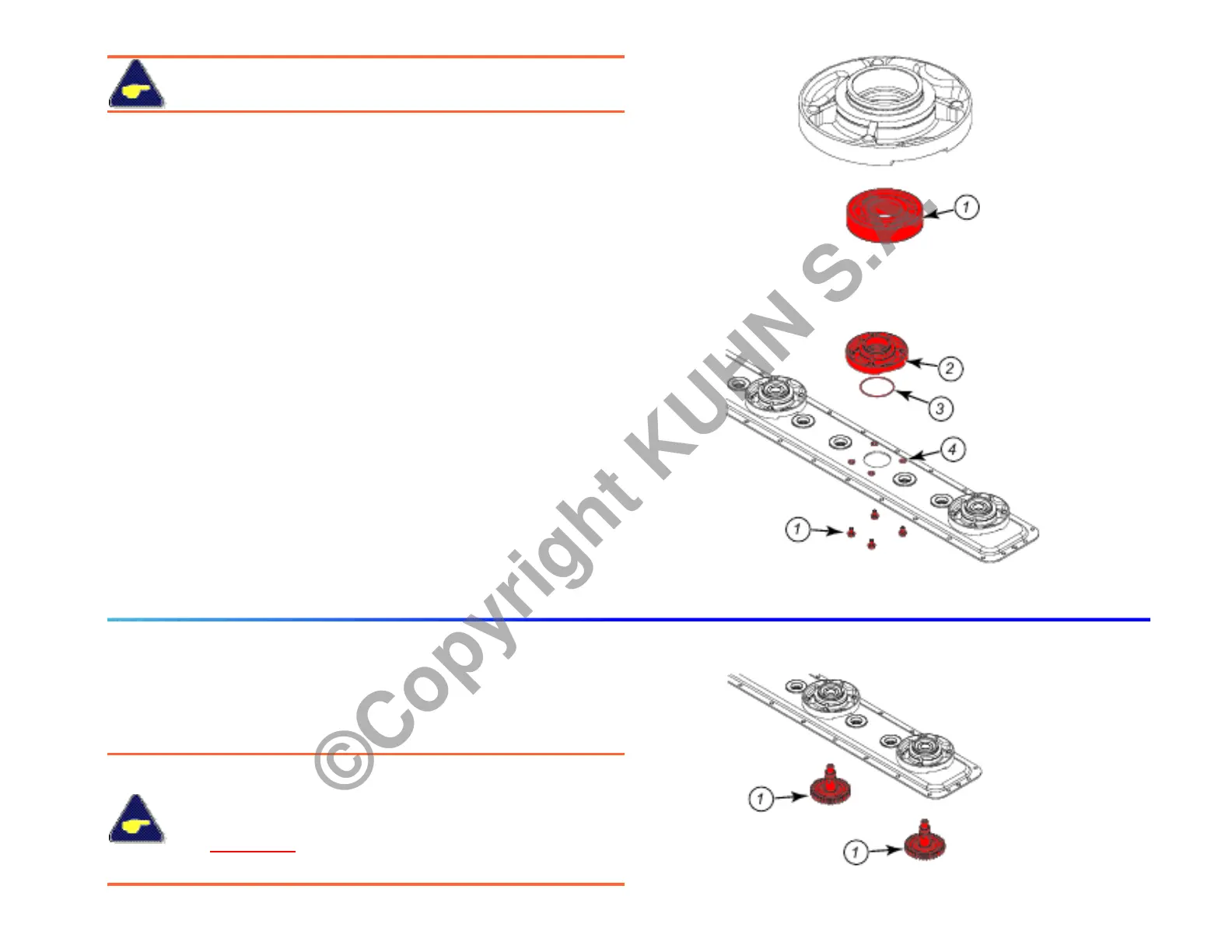

Insert lower bearing (1) until it bottoms.
Replace o - rings (3) and (4).
Reinstall disk housing (2).
Reinstall the 4 bolts (1).
Torque: 752 .
Reinstall bearings with the protected part towards
the outside of the disk housing.
Step 3.
Reinstall helical pinions (1).
Respect left and right helical pinion fitting position
according to the type of machine.
See sheet.
