KUHN GMD44 - Page 37

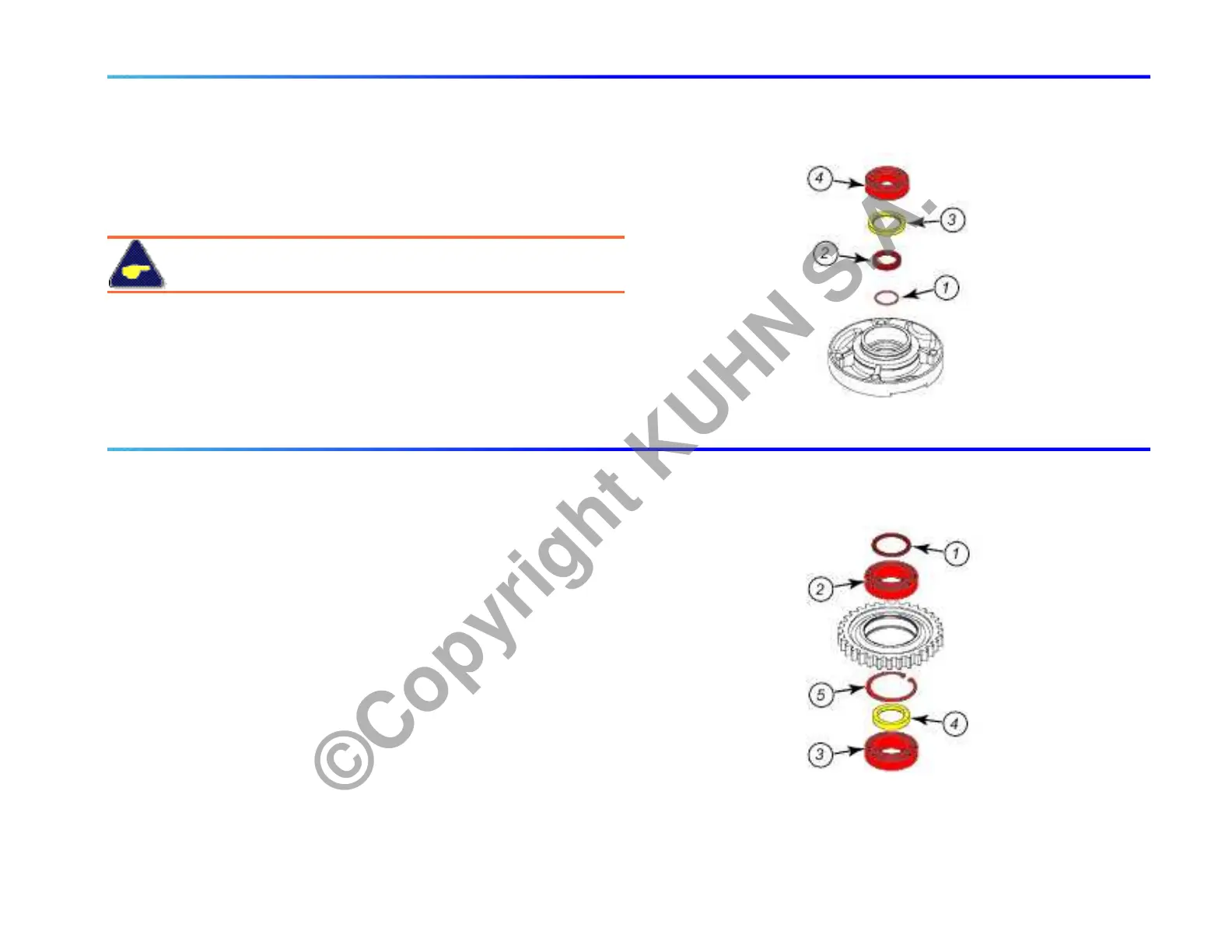

Step 4.
Reinstall disk housing upper bearings
Reinstall O - ring (1).
Reinstall spacer (2).
Reinstall oil seal (3).
Insert bearing (4) fully.
Reinstall spacers with the bevelled part
downwards.
Step 5.
Reinstall intermediate gearwheels
From 760001 to 786383.
Reinstall retaining ring (5).
Reinstall spacer (4).
Insert bearing (3) fully.
Insert bearing (2) fully.
Reinstall shim ring (1).
