Reinstall wear plates.
Reinstall the reinforcement brackets .
Reinstall bolts and nuts .
Torque: 8.5 64 .
Note position of mounting bolts, disk skids and
reinforcements.
See sheet.
Step 9.

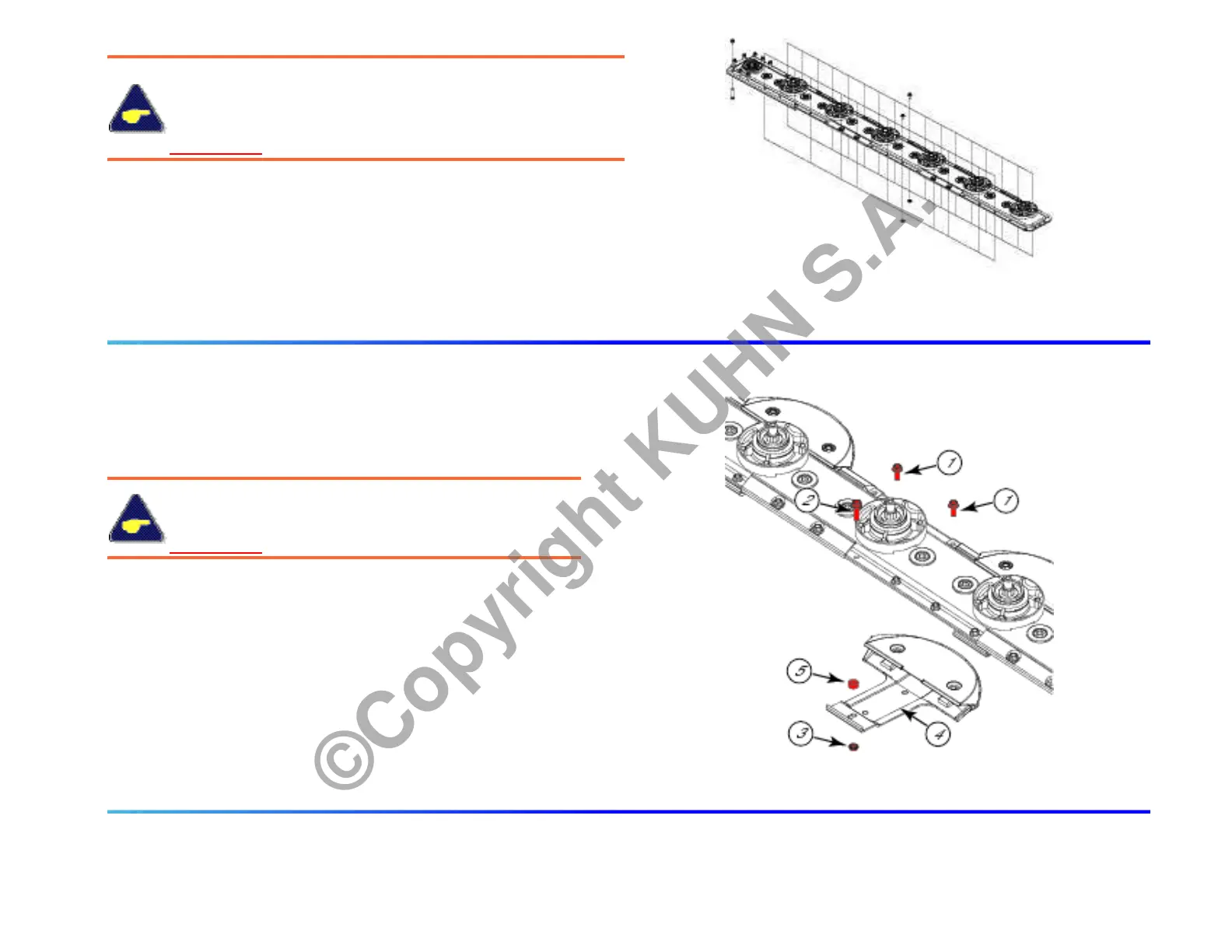

Reinstall disk guards.
Reinstall disk skid (4) and spacer (5).
Reinstall bolt (2) and nut (3).
Reinstall the 2 bolts (1).
Torque: 8.5 64 .
Note the number and position of the spacers.
See sheet.
Step 10.
