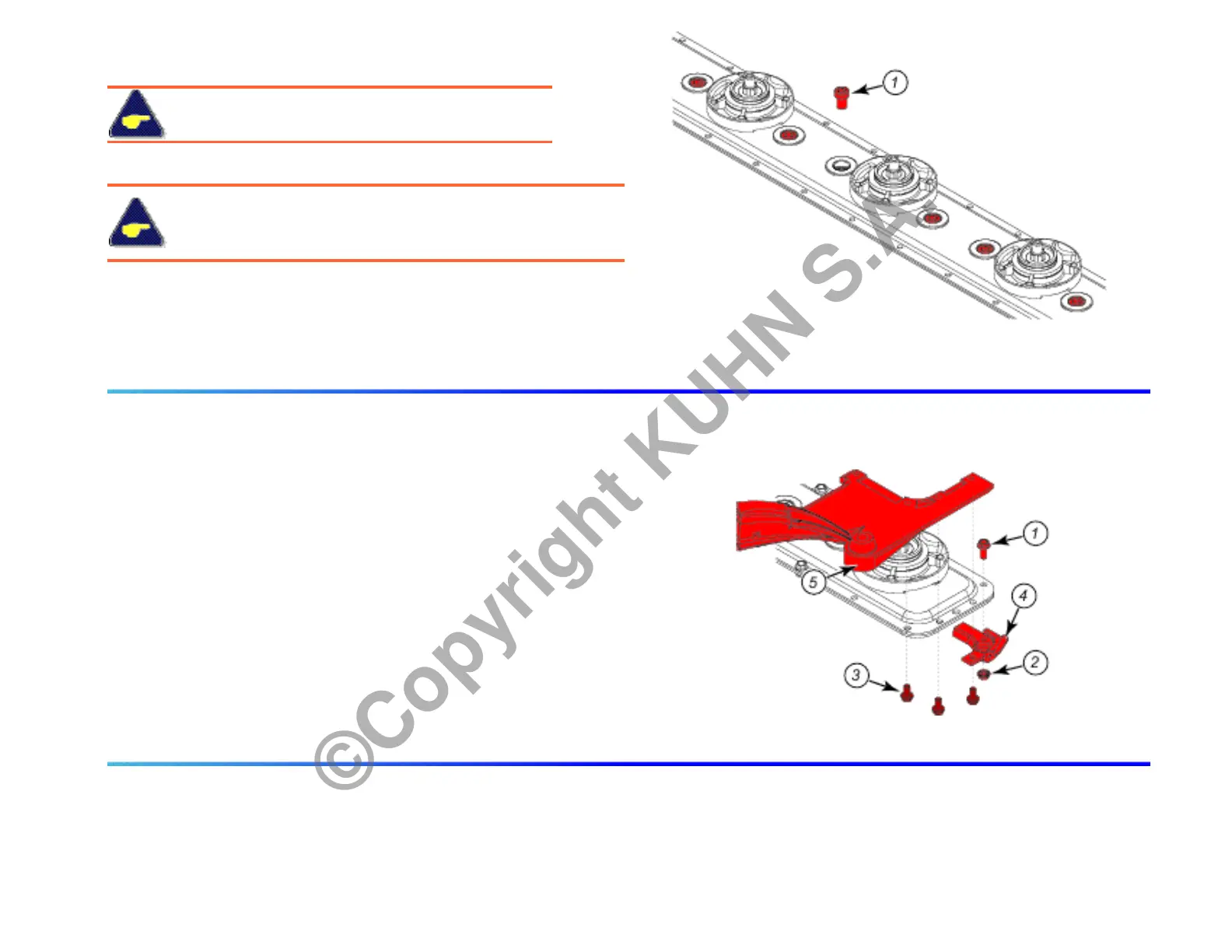

Reinstall bolts (1).
Tighten screws (1) from the center outwards.
Torque: 38280 .
Give screws 2 or 3 preload turns by hand.
Before tightening the bolts, reinstall temporarily
several disks, rotate them by hand and check
disk synchronization.
Step 7.
Guard angle bracket
Reinstall swath board holder (5).
Reinstall guard angle bracket (4).
Reinstall the 3 bolts (3).
Reinstall bolt (1) and nut (2).
Torque: 8.5 64 .
Step 8.
