Main operations

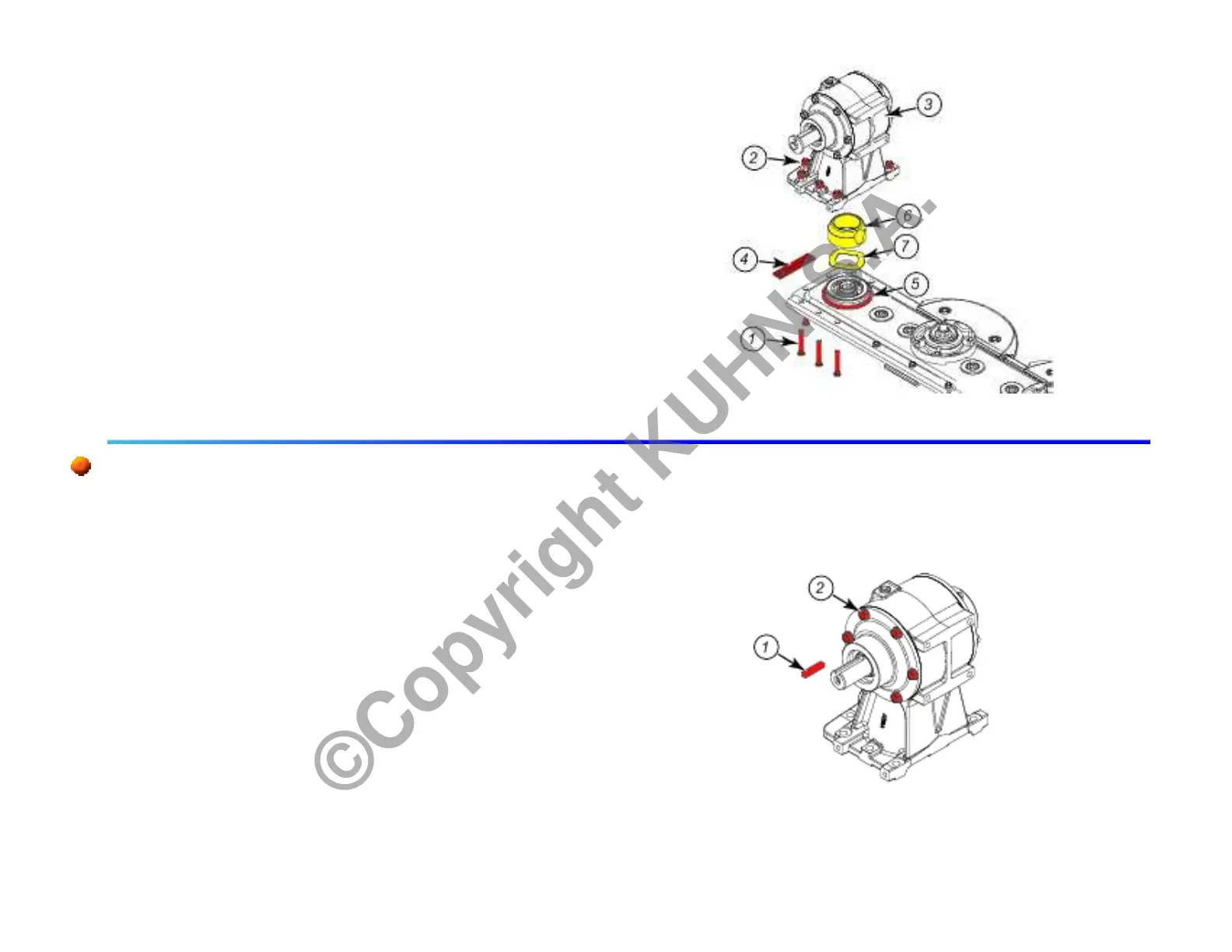

Remove the 8 bolts (1) and nuts (2).
Remove the gearbox (3).
Remove the chock (4).
Remove O
-
ring (5).
Remove compensation volume (6).
Remove wavy washer (7).
Step 1.
Parking
Remove key (1).
Remove 6 bolts (2).
Page 56/95Printing date : 06-02-2014 GMD44_760001_xxxxxx
