KVM KVM6000 Series - Page 27

- 24 -
- 25 -
11：Current 1 reached
12：Current 2 reached
13：Zero current output
14：Output current out of limit
15：Torque limited
16：OL1 motor overload pre-warning
17：OL2 AC drive overload pre-warning
18：Zero-speed running (no output at stop)
19：Acceleration running
20：Deceleration running
21：Dc breaking
22：PLC step completed
23：PLC cycle completed
24：Reserved
25：Accumulative running time reached
26：Timing reached
27：Maximum count value reached
28：Set count value reached
29：AI1 input out of limit
30：Module temperature Reached
31：Fan running
32: Data output 1 from transfer(DO function)
33: Data output 2 from transfer(DO function)
34: Data output 3 from transfer(DO function)
35: Data output 4 from transfer(DO function)
36: Pump 1 start-up37: Pump 2 start-up
38: Pump 3 start-up39: Pump 4 start-up
P4-23
Y4 terminal
function
0
0417H
P4-24
Y5 terminal
function-
Extension
0
0418H
P4-25
Y6 terminal
function-
Extension
0
0419H
P4-26
Y7 terminal
function-
Extension
0
041AH
P4-27
Y8 terminal
function-
Extension
0
041BH
P5 Analog terminal parameters
P5-00
P5-01
Function
Code
AI123
input signal
selection
AI1 input voltage
minimum value
Parameter Name
BIT0: AI2 signal selection
0：0～10V 1：0～20.00mA
BIT1: AI3 signal selection
0：0～10V 1：0～20.00mA
BIT2: AI3 signal selection
0: 0～10V 1: 0～20.00mA
BIT3: Reserved
0.00～10.00V
Setting Range
0010
0.00V
Default
0500H
0501H
Address
P5-02
AI1 input voltage
lower limit
corresponding
setting
0.00～100.00%
0.00%
0502H
P5-03
AI1 input voltage
maximum value
0.00～10.00V10.00V0503H
P5-04
AI1 input voltage
upper limit
corresponding
setting
0.00～100.00%100.00%0504H
P5-05
AI1 filter time
0.00～10.00s0.10s0505H
KVM6000

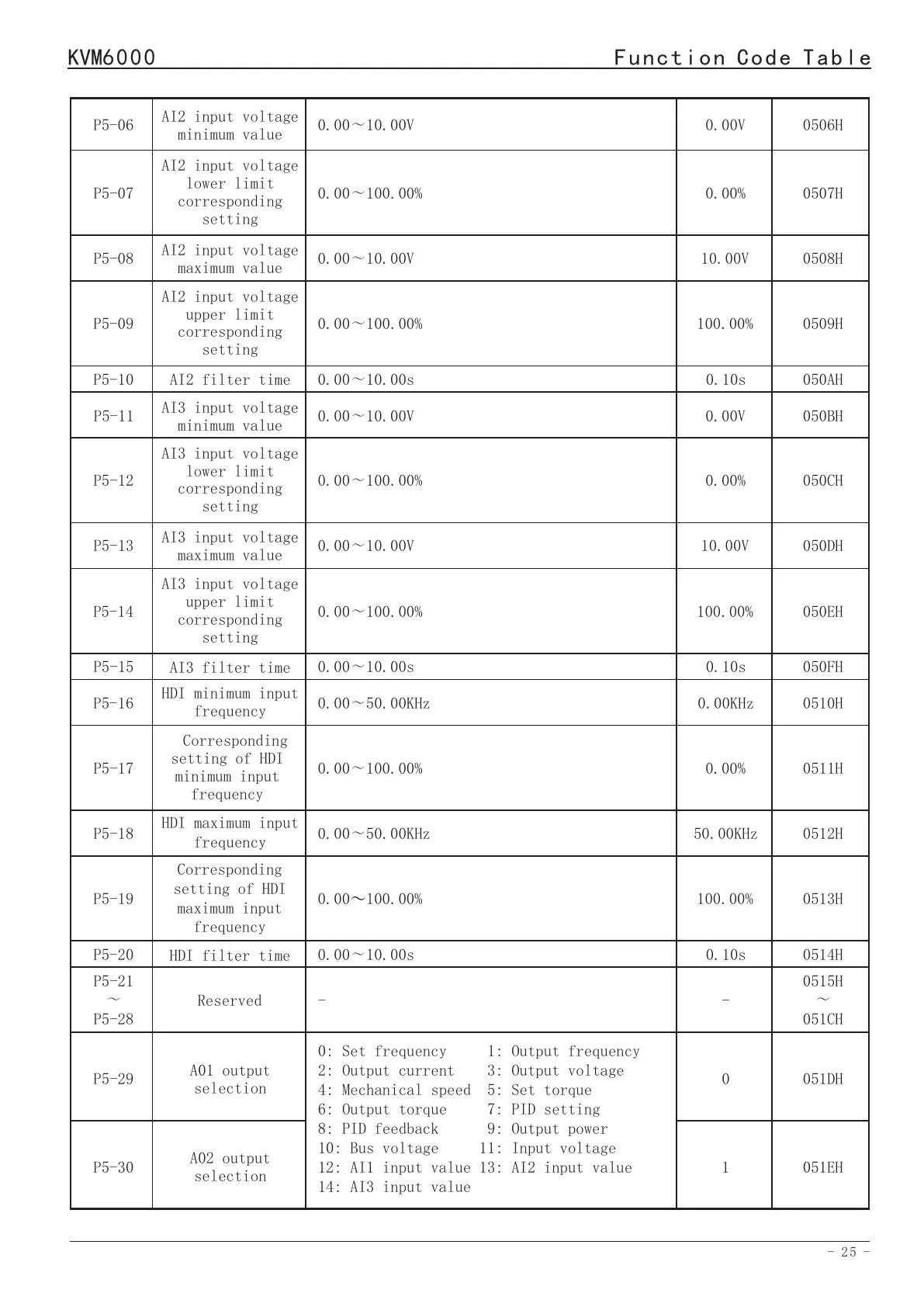

Function Code Table KVM6000 Function Code Table
P5-06
AI2 input voltage
minimum value
0.00～10.00V
0.00V
0506H
P5-07
AI2 input voltage
lower limit
corresponding
setting
0.00～100.00%
0.00%
0507H
P5-08
AI2 input voltage
maximum value
0.00～10.00V10.00V0508H
P5-09
AI2 input voltage
upper limit
corresponding
setting
0.00～100.00%100.00%0509H
P5-10
AI2 filter time
0.00～10.00s0.10s
050AH
P5-11
AI3 input voltage
minimum value
0.00～10.00V
0.00V
050BH
P5-12
AI3 input voltage
lower limit
corresponding
setting
0.00～100.00%
0.00%
050CH
P5-13
P5-14
AI3 input voltage
maximum value
AI3 input voltage
upper limit
corresponding
setting
050DH
050EH
0.00～10.00V
0.00～100.00%
10.00V
100.00%
P5-15
P5-16
P5-17
P5-19
AI3 filter time
HDI minimum input
frequency
Corresponding
setting of HDI
minimum input
frequency
Corresponding
setting of HDI
maximum input
frequency
050FH
0510H
0511H
0513H
0.00～10.00s
0.00～50.00KHz
0.00～100.00%
0.00100.00%
～
0.10s
0.00KHz
0.00%
100.00%
P5-180512H
0.00～50.00KHz50.00KHz
HDI maximum input
frequency
P5-20
P5-21
～
P5-28
HDI filter time
Reserved
0.00～10.00s
-
0.10s
-
0514H
0515H
～
051CH
P5-29
A01 output
selection
051DH
0
0: Set frequency 1: Output frequency
2: Output current 3: Output voltage
4: Mechanical speed 5: Set torque
6: Output torque 7: PID setting
8: PID feedback 9: Output power
10: Bus voltage 11: Input voltage
12: AI1 input value 13: AI2 input value
14: AI3 input value
P5-30
A02 output
selection
051EH
1
