PF-03
～
PF-67
Edit definition
by user
-
0F03H
～
0F27H
-
PF-02
PF parameter
group length
3～660F02H
18
A0-00
Function
Code
Control mode
Parameter Name
1000H
Address
A0 Torque control parameters
0: Speed control
1: Torque control
Setting Range
0
Default
A0-01
Torque setting
source selection
1000H
1
BIT0: Main frequency source X selection(The
full range of 1-7 option corresponds to A3-02)
0：Function code A3-02 setting
1：AI1 2：AI2 3：AI3
4：PULSE setting 5：Communication setting
6：MIN(AI1,AI2) 7：MAX(AI1,AI2)
BIT1: Auxiliary frequency source Y selection
(The full range of1-7 option corresponds to
A3-03)
0：Function code P5-11 setting
1：AI1 2：AI2 3：AI3
4：PULSE setting 5：Communication setting
6：MIN(AI1,AI2) 7：MAX(AI1,AI2)
The full range of 1-7 option corresponds to
P5-11
BIT 2:Main and frequency source selection
0：X×[A3-03]
1：Y×[A3-04]
2：X×[A3-03] ＋ Y×[A3-04]
3：X×[A3-03] － Y×[A3-04]
4：MAX{X×[A3-03]，Y×[A3-04]}
5：MIN{X×[A3-03]，Y×[A3-04]}
6：Any non-zero value of the main frequency
source X and auxiliary frequency source Y is
valid,and the main frequency source X takes
precedence.
1002H
1003H
1004H
1005H
A0-02
Torque digital
setting in main
frequency source X
0～200.0%
A0-03
A0-04
A0-05
Torque digital
setting in
auxiliary frequency
source Y
Torque setting in
main frequency
source X Gain
Torque setting
in auxiliary
frequency source
Y Gain
0～200.0%
0～5.000
0～5.000
100%
100%
1.000
1.000
- 44 -

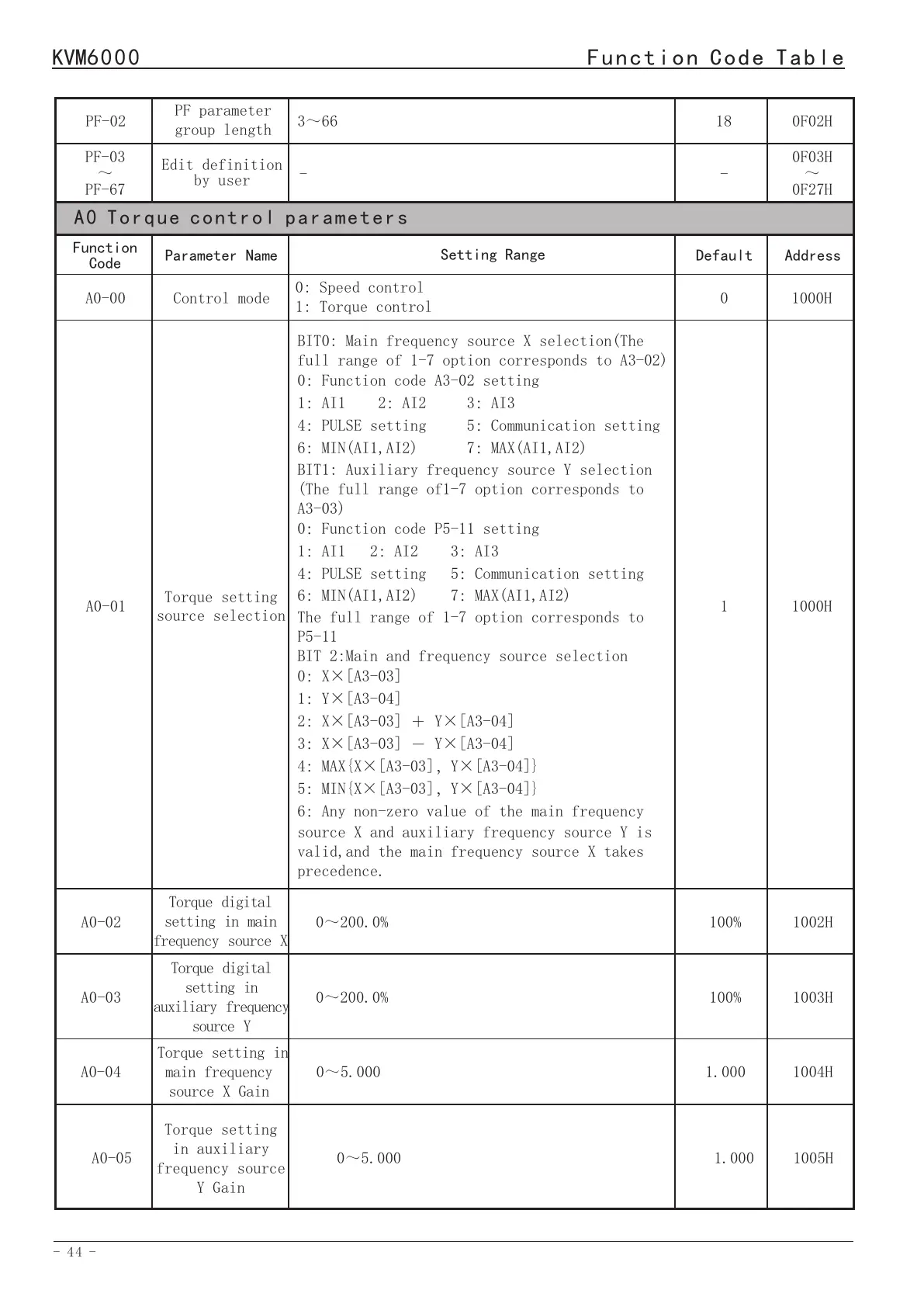

KVM6000
Function Code Table KVM6000 Function Code Table
1006H
A0-06
Torque given
filter time
0.0～10.000.10
1007H
～
1009H
100AH
100BH
100CH
A0-07
～
A0-09
A0-10
A0-11
A0-12
Forward maximum
frequency in
torque control
Reverse maximum
frequency in
torque control
Acceleration time
in torque control
Reserved
0.0Hz～maximum frequency
0.00～100.00s
-
50.00Hz
50.00Hz
-
0.00s
0.0Hz～maximum frequency
100DH
A0-13
Deceleration time
in torque control
0.00～100.00s
0.00s
1100H
A1-00
Multiple
pump control
A1 Constant Pressure Water Supply Parameters
BIT0:
0: Multiple pump control is invalid
1: Frequency transform pump fix, no timing
shift
2: Frequency transform pump fix with timing
shift
3: Frequency transform pump circulating, no
timing shift
4: Frequency transform pump circulating, has
timing shift
BIT1: Quantity of pump
BIT2:
0: Start first then stop(suitable to unequal
pump power)
1: Start first then stop firs(suitable to
equal pump power)
BIT3: Reserved
0110
Function
Code
Parameter Name
Setting Range
Default
Address
A1-01
A1-02
A1-03
A1-04
Add pump given
increment 1
Add pump given
increment 2
Add pump given
increment 3
Motor connect-in
judge function
0.0～100.0%
0.0～100.0%
0.0～100.0%
BIT0: Valid pump judge invalid
0: Invalid
1: By S terminal invalid
2: Decided by A01-05 setting
BIT1: Reserved
BIT2: Reserved
BIT3: Reserved
1101H
1102H
1103H
1104H
0.0%
0.0%
0.0%
0002
A1-05
Motor connect-in
setting
0: This motor and system isconnect
1: This motor connect-in system
1105H
1111
A1-06
Timing
rotation time
0.16000.0～
1106H
0.1h
