- 32 -
- 33 -
KVM6000
Function Code Table
KVM6000
Function Code Table
P9-18
AC drive status
upon 2nd fault
0912H
Same as P9-09
P9-19
S terminal status
upon 2nd fault
0913HSame as P9-10
P9-20
Y terminal status
upon 2nd fault
0914HSame as P9-11
P9-21
Power-on time
upon 2nd fault
Read-only
0915HSame as P9-12
P9-22
Running time
upon 2nd fault
Read-only
0916HSame as P9-13
P9-23
Frequency
upon 3rd fault
Read-only
0917H
Same as P9-05
Read-only
Read-only
Read-only
P9-31091FH
100.0%0.0～100.0%
P9-320920H1.000.20～10.00
P9-24
P9-25
P9-26
P9-27
P9-28
P9-29
P9-30
0918H
0919H
091AH
091BH
091CH
091DH
091EH
Same as P9-06
Same as
P9-07
Same as P9-09
Same as P9-10
Same as P9-11
Same as P9-12
Same as P9-13
Current upon
3rd fault
Output voltage
upon 3rd fault
AC drive status
upon 3rd fault
S terminal status
upon 3rd fault
Y terminal status
upon 3rd fault
Power-on time
upon 3rd fault
Running time
upon 3rd fault
Backup frequency
upon abnormality
Motor overload
protection gain
Read-only
Read-only
Read-only
Read-only
Read-only
Read-only
Read-only
P9-33
0921H
80%
50～100%
Motor overload
warning coefficient
0～100%
P9-34
Recognize voltage
at instantaneous
stop action
80%0922H
0～100%
P9-35
Recognize voltage
at instantaneous
stop action
90%0923H
P9-36
Recognize time
at instantaneous
rise action
0.50s
0924H0.00～100.00s
0～200P9-37
Instantaneous stop
deceleration gain
100
0925H
0.0～100.0%P9-38
Detection level of
load becoming 0
10.0%0926H
0.0～60.0s
P9-39
Detection time of
load becoming 0
1.0s0927H
0.0～50.0%(Maximum frequency)
P9-40
Over-speed
detection value
20.0%
0928H

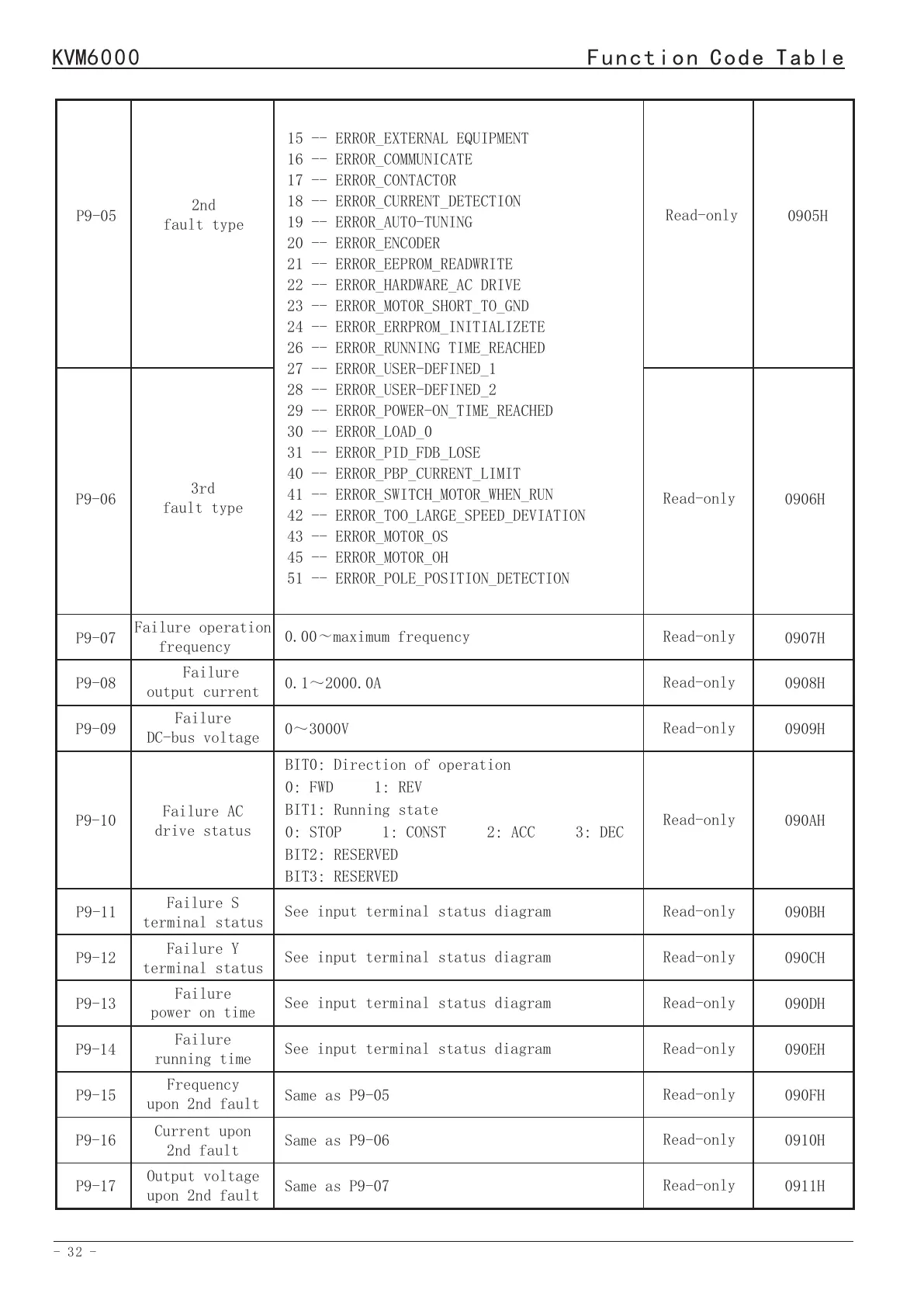

P9-05
2nd
fault type
Read-only
0905H
15 -- ERROR_EXTERNAL EQUIPMENT
16 -- ERROR_COMMUNICATE
17 -- ERROR_CONTACTOR
18 -- ERROR_CURRENT_DETECTION
19 -- ERROR_AUTO-TUNING
20 -- ERROR_ENCODER
21 -- ERROR_EEPROM_READWRITE
22 -- ERROR_HARDWARE_AC DRIVE
23 -- ERROR_MOTOR_SHORT_TO_GND
24 -- ERROR_ERRPROM_INITIALIZETE
26 -- ERROR_RUNNING TIME_REACHED
27 -- ERROR_USER-DEFINED_1
28 -- ERROR_USER-DEFINED_2
29 -- ERROR_POWER-ON_TIME_REACHED
30 -- ERROR_LOAD_0
31 -- ERROR_PID_FDB_LOSE
40 -- ERROR_PBP_CURRENT_LIMIT
41 -- ERROR_SWITCH_MOTOR_WHEN_RUN
42 -- ERROR_TOO_LARGE_SPEED_DEVIATION
43 -- ERROR_MOTOR_OS
45 -- ERROR_MOTOR_OH
51 -- ERROR_POLE_POSITION_DETECTION
Read-only
3rd
fault type
P9-060906H
P9-07
P9-08
P9-09
P9-10
0907H
0908H
0.00～maximum frequency
BIT0：Direction of operation
0：FWD 1：REV
BIT1：Running state
0：STOP 1：CONST 2：ACC 3：DEC
BIT2：RESERVED
BIT3：RESERVED
0.1～2000.0A
Failure operation
frequency
Failure
output current
Failure
DC-bus voltage
Failure AC
drive status
Read-only
Read-only
Read-only
0909H
Read-only
090AH
P9-11
Failure S
terminal status
Read-only
090BH
See input terminal status diagram
P9-12
Failure Y
terminal status
090CH
See input terminal status diagram
P9-13
Failure
power on time
090DH
See input terminal status diagram
P9-14
Failure
running time
090EH
See input terminal status diagram
P9-15
Frequency
upon 2nd fault
090FHSame as P9-05
P9-16
Current upon
2nd fault
0910H
Same as P9-06
P9-17
Output voltage
upon 2nd fault
0911H
Same as P9-07
Read-only
Read-only
Read-only
Read-only
Read-only
Read-only
0～3000V
