KVM6000
Function Code Table
KVM6000
Function Code Table
PD Internal control PLC Function and frequency parameters
Address
0D00H
Default
20.0%
Function
Code
PD-00
Setting Range
Parameter Name
Multi-
frequency 1
0D01H
40.0%
PD-01
Multi-
frequency 2
0D02H
60.0%
PD-02
Multi-
frequency 3
0D03H
80.0%
PD-03
Multi-
frequency 4
0D04H100.0%PD-04
Multi-
frequency 5
0D05H
80.0%
PD-05
Multi-
frequency 6
0D06H
60.0%
PD-06
Multi-
frequency 7
0～100.0%
0D10H
10.0
PD-16
Running time of
PLC reference 1
0D07H
40.0%
PD-07
Multi-
frequency 8
0D08H
20.0%
PD-08
Multi-
frequency 9
0D09H
40.0%
PD-09
Multi-
frequency 10
0D0AH
60.0%
PD-10
Multi-
frequency 11
0D0BH
80.0%
PD-11
Multi-
frequency 12
0D0CH100.0%
PD-12
Multi-
frequency 13
0D0DH
80.0%
PD-13
Multi-
frequency 14
0D0EH
60.0%
PD-14
Multi-
frequency 15
0D0FH0000
PD-15
PLC
running mode
BIT0: Circulation mode
0: Stop after the AC drive runs one cycle
1: Repeat after the AC drive runs one cycle
2: Keep final values after the AC drive runs one
cycle
BIT1:Chronograph unit
0: Second 1: Minute 2: Hour
BIT2: Power down storage mode
0: No 1: Yes
BIT3: Start-up mode
0: Rerun from stage one
1: Rerun from downtime
2: Continue operation with the rest of the
downtime phase
0.0～6500.0（s/m/h)
0D11H
10.0

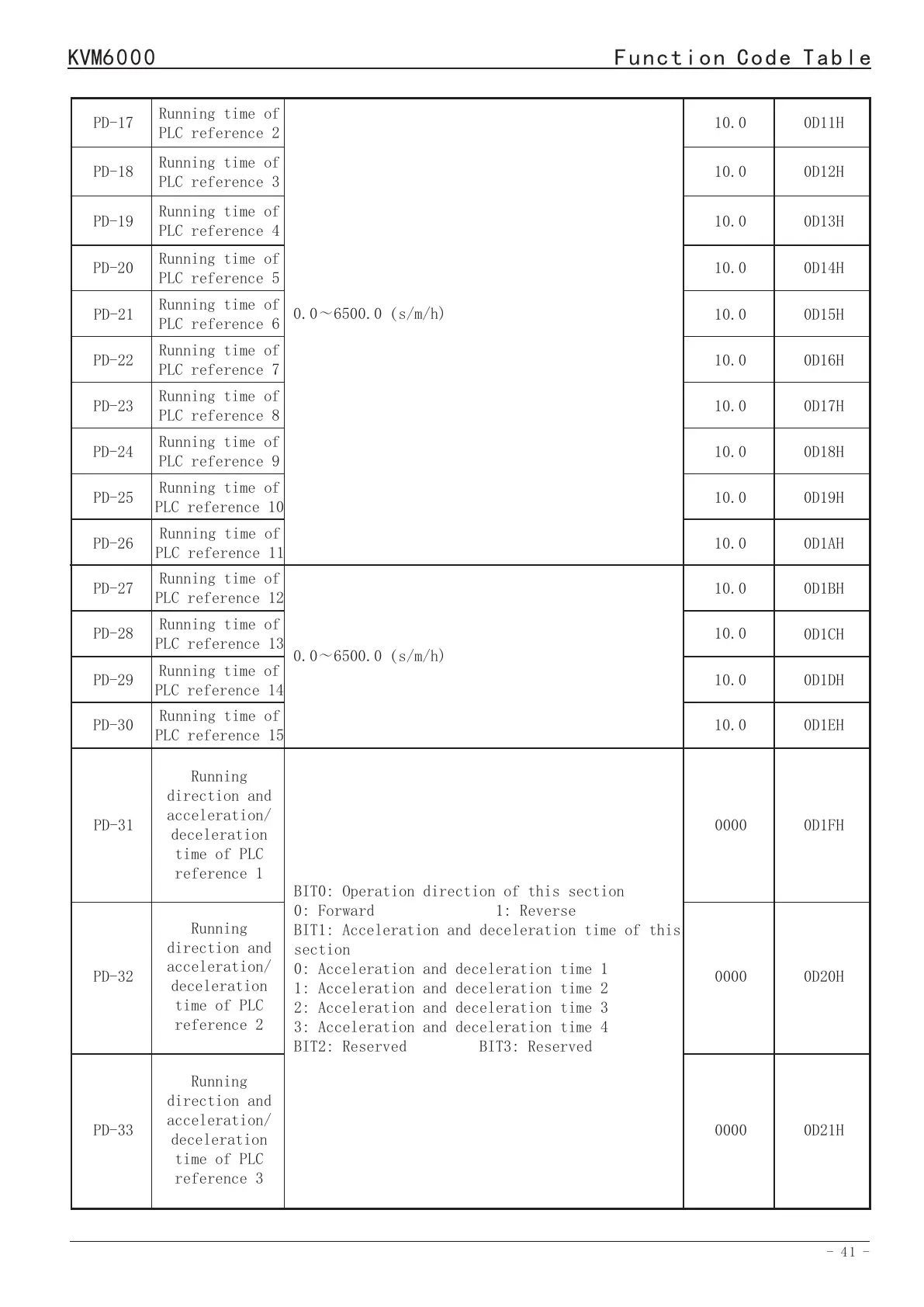

PD-17
Running time of
PLC reference 2
0D12H
10.0
PD-18
Running time of
PLC reference 3
0D13H
10.0
PD-19
Running time of
PLC reference 4
0D14H
10.0PD-20
Running time of
PLC reference 5
0D15H
10.0
PD-21
Running time of
PLC reference 6
0D16H
10.0
PD-22
Running time of
PLC reference 7
0D17H
10.0PD-23
Running time of
PLC reference 8
0D18H
10.0
PD-24
Running time of
PLC reference 9
0D19H
10.0PD-25
Running time of
PLC reference 10
0D1AH
10.0PD-26
Running time of
PLC reference 11
0.0～6500.0（s/m/h)
0D1BH
10.0PD-27
Running time of
PLC reference 12
0D1CH
10.0
PD-28
Running time of
PLC reference 13
0D1DH
10.0PD-29
Running time of
PLC reference 14
0D1EH
10.0PD-30
Running time of
PLC reference 15
0.0～6500.0（s/m/h)
0D1FH
0000
PD-31
Running
direction and
acceleration/
deceleration
time of PLC
reference 1
0D20H0000PD-32
Running
direction and
acceleration/
deceleration
time of PLC
reference 2
0D21H
0000PD-33
Running
direction and
acceleration/
deceleration
time of PLC
reference 3
BIT0: Operation direction of this section
0: Forward 1: Reverse
BIT1: Acceleration and deceleration time of this
section
0: Acceleration and deceleration time 1
1: Acceleration and deceleration time 2
2: Acceleration and deceleration time 3
3: Acceleration and deceleration time 4
BIT2: Reserved BIT3: Reserved
