6. ENGINE REMOVAL
6-4

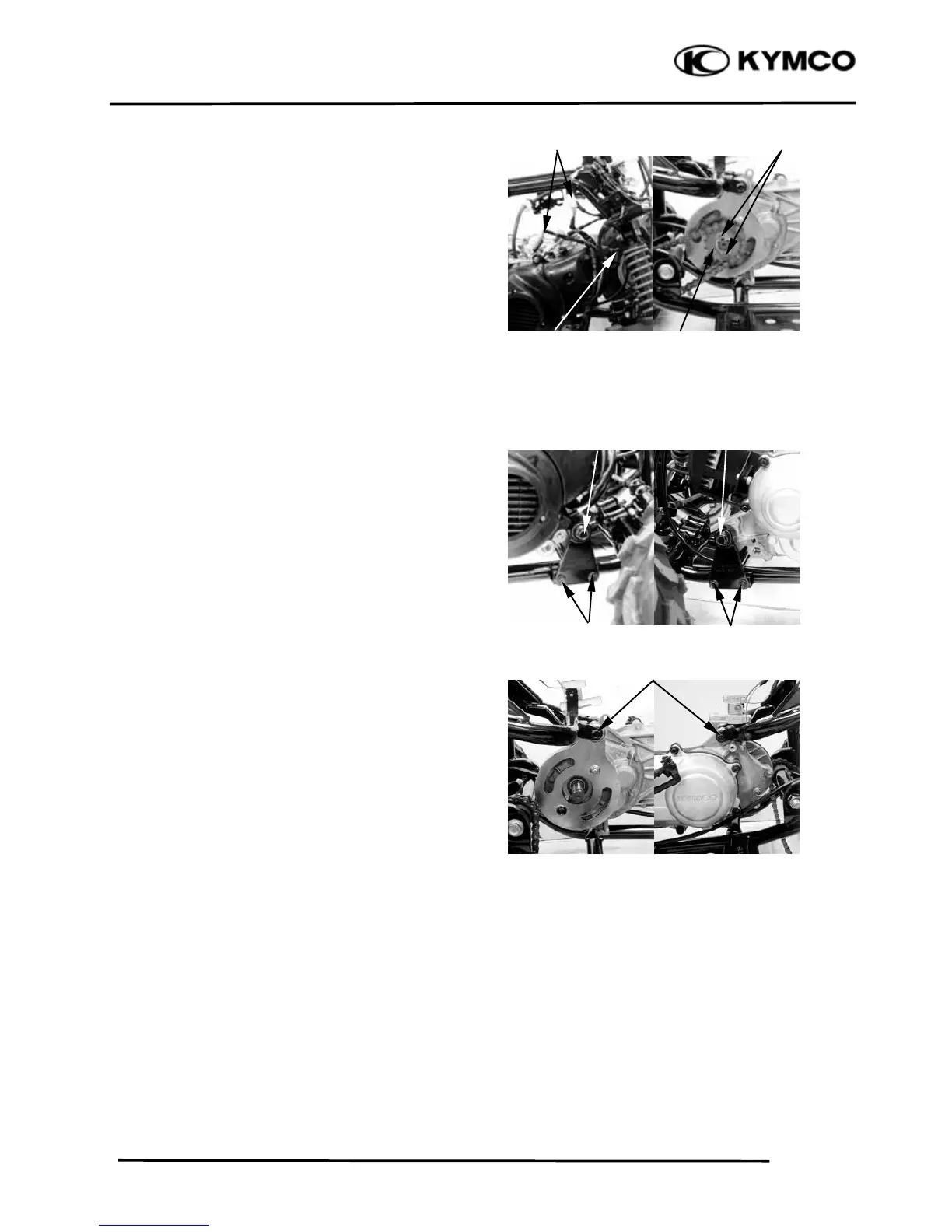

ENGINE REMOVAL (50cc-2T)
Remove frame covers and exhaust pipe.
(Refer to chapter 2)
Remove oil tank. (Refer to chapter 4)
Remove air cleaner and carburetor. (Refer
to chapter 5)
Drain transmission oil. (Refer to chapter 3)
Disconnect the A.C. generator and starter
motor couplers.
Remove the spark plug cap.
Remove the two bolts on the drive sprocket.
Remove the drive sprocket and washer.
Remove the front two mounting bolts and
two nuts at the engine right/left side.
Remove the four bolts and then remove the
left and right engine brackets at the engine
right/left side.
Remove the rear two mounting bolts and
two nuts.
A.C. Generator/Starte
r
Motor Couplers
Spark Plug Cap
Bolts
Drive Sprocke
t
Bol
t
s and Nuts
Bol
t
and Nu
t
Bolts
Bol
t
and Nu
t
Bolts
