6. ENGINE REMOVAL/INSTALLATION
6-5

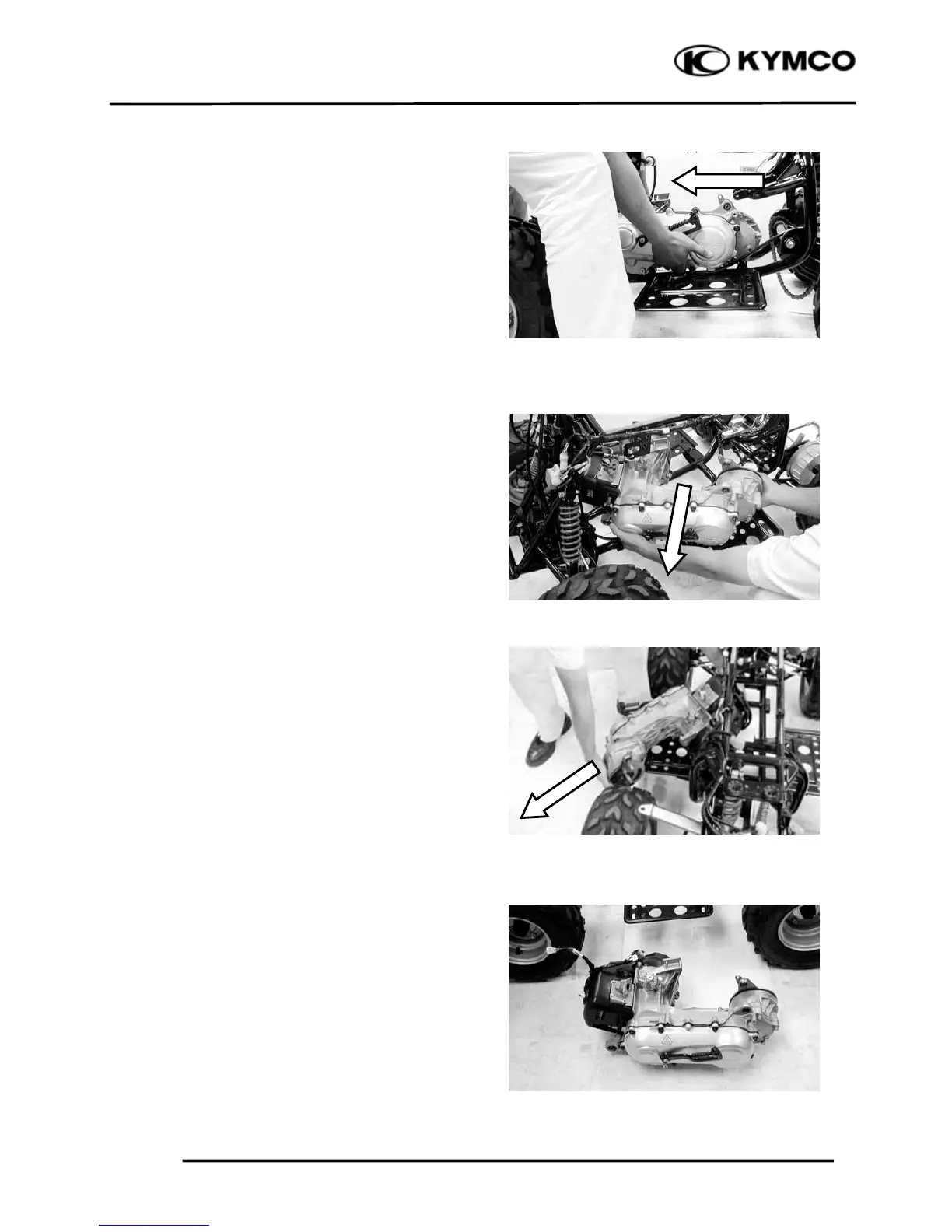

Remove the engine assembly to the left side
of the machine.
INSTALLATION
Reverse the “REMOVAL” procedures.
TORQUE VALUES
Engine bracket bolt
27 N-m (2.7 kgf-m, 19 lbf-ft)
Front engine mounting bolt
45 N-m (4.5 kgf-m, 32 lbf-ft)
Rear engine mounting bolt
32 N-m (3.2 kgf-m, 23 lbf-ft)
