7. CYLINDER HEAD/VALVES
(90cc/70cc/50cc-4T)
7-9

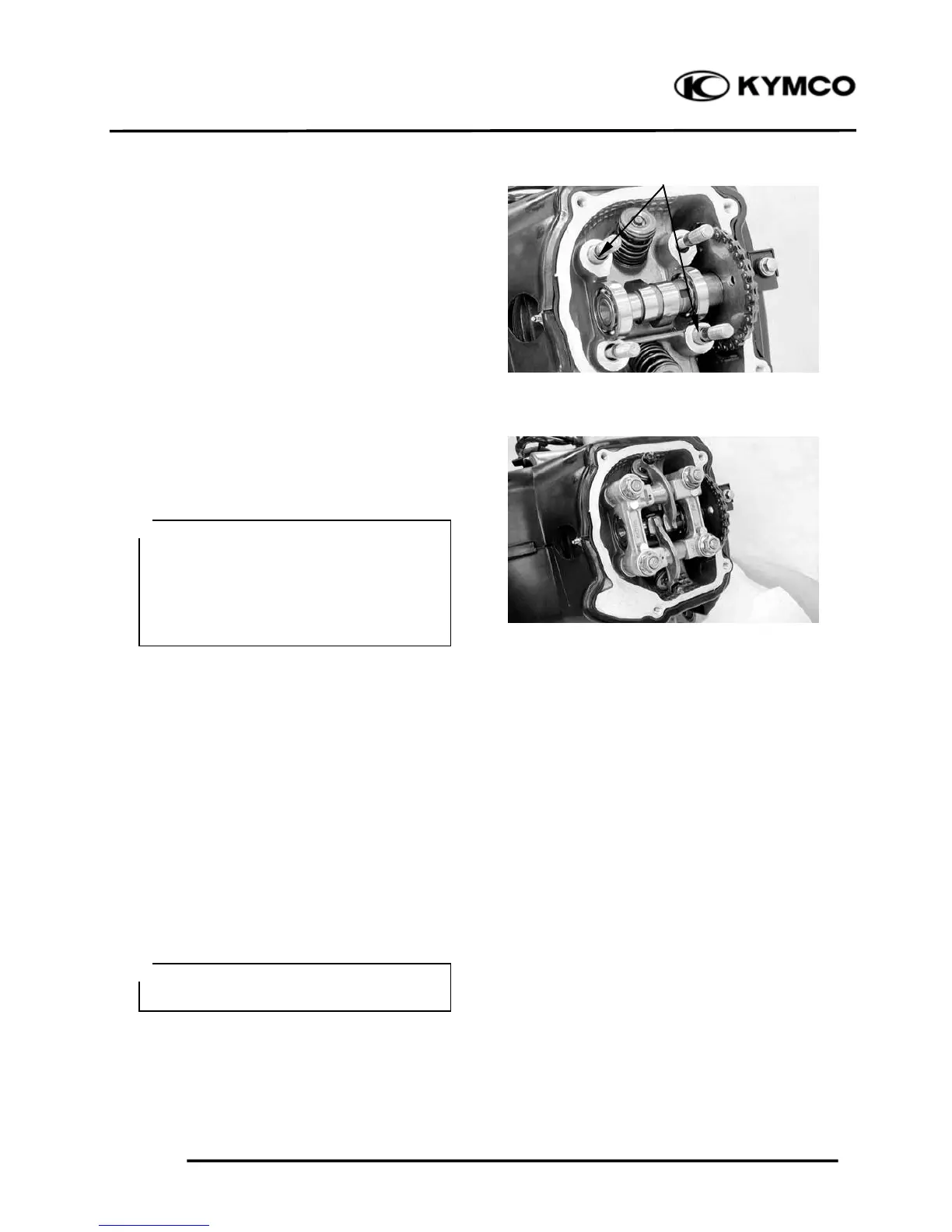

INSTALLATION
Reverse the “CAMSHAFT REMOVAL”
procedures.
Note the following points:
1. Turn the flywheel so that the “T” mark on
the flywheel aligns with the index mark
on the crankcase.
Keep the round hole on the camshaft
gear facing up and align the punch marks
on the camshaft gear with the cylinder
head surface (Position the intake and
exhaust cam lobes down.) and install the
camshaft onto the cylinder head. (Refer
to the “VALVE CLEARANCE” section
in the chapter 3)
Install the camshaft dowel pins and
holder.
Torque:
Cam shaft hold nut:
(90cc): 20 N-m (2 kgf-m, 14 lbf-ft)
Apply engine oil to threads
(70cc/50cc-4T):
14 N-m (1.4 kgf-m, 10 lbf-ft)
Apply engine oil to threads
2. Turn the cam chain tensioner screw
counter-clockwise to release it.
Apply engine oil to a new O-ring and
install it.
Tighten the cam chain tensioner cap bolt.
3. Adjust the valve clearance. (Refer to the
“VALVE CLEARANCE” section in the
chapter 3)
• Apply engine oil to the threads of the
cylinder head nuts.
• Diagonally tighten the cylinder head
nuts in 2～3 times.
• Position the camshaft holder “EX”
mark on the exhaust valve side.
＊
Dowel Pins
Be sure to install the O-ring into the
groove properly.
＊
