7. CYLINDER HEAD/VALVES
(90cc/70cc/50cc-4T)
7-10

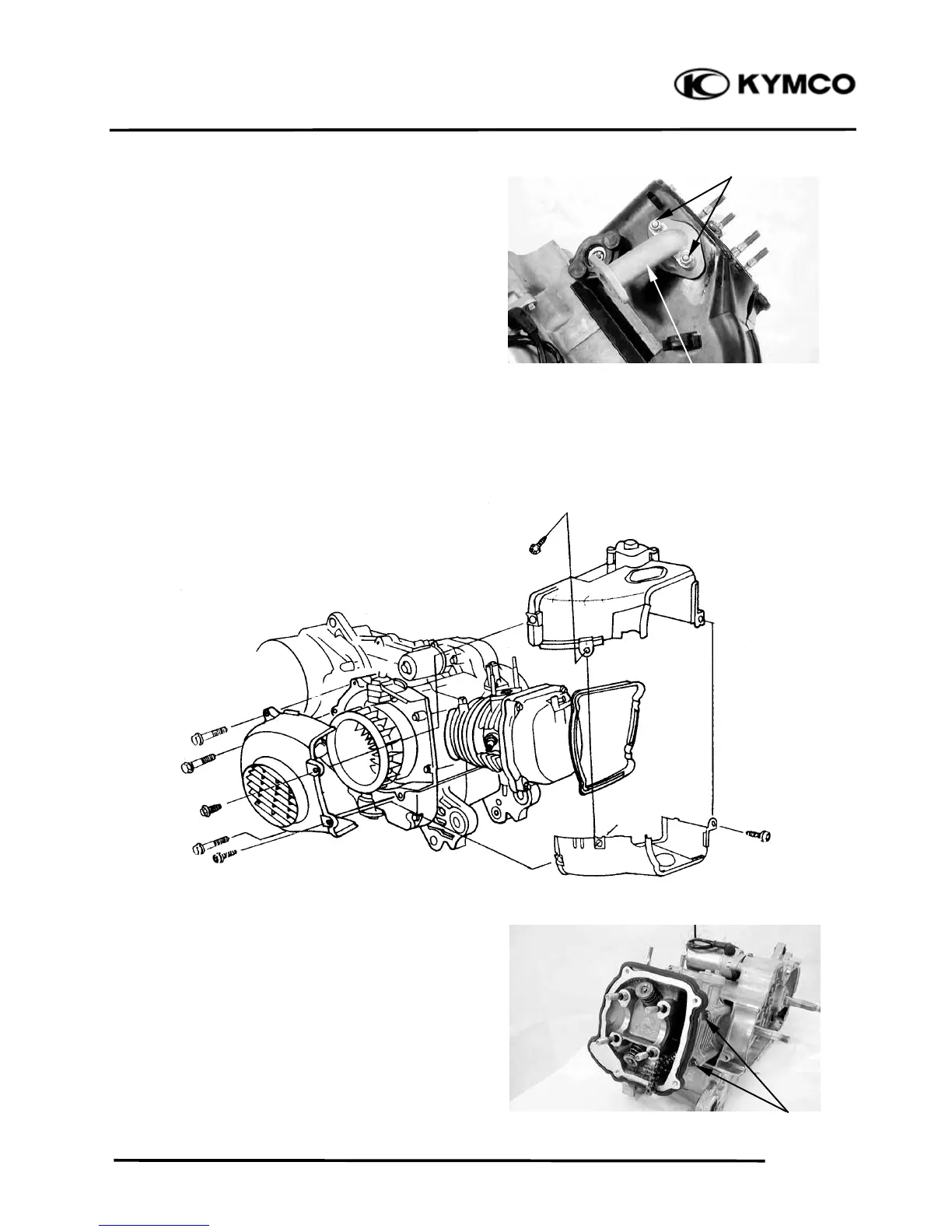

CYLINDER HEAD
REMOVE
Remove the camshaft. (Refer to the
“camshaft remove” section in the chapter 7)
Remove the carburetor. (Refer to the
“CARBURETOR REMOVE” section in the
chapter 5)
Remove the exhaust muffler. (Refer to the
“EXHAUST MUFFLER REMOVE”
section in the chapter 2)
Remove the two nuts and then remove the
carburetor intake manifold.
Remove the cooling fan cover. (
Ö
14-8)
Remove the engine cover bolts and screws.
Separate the engine cover joint claws.
Remove the two cylinder head bolts.
Remove the cylinder head.
