12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-11

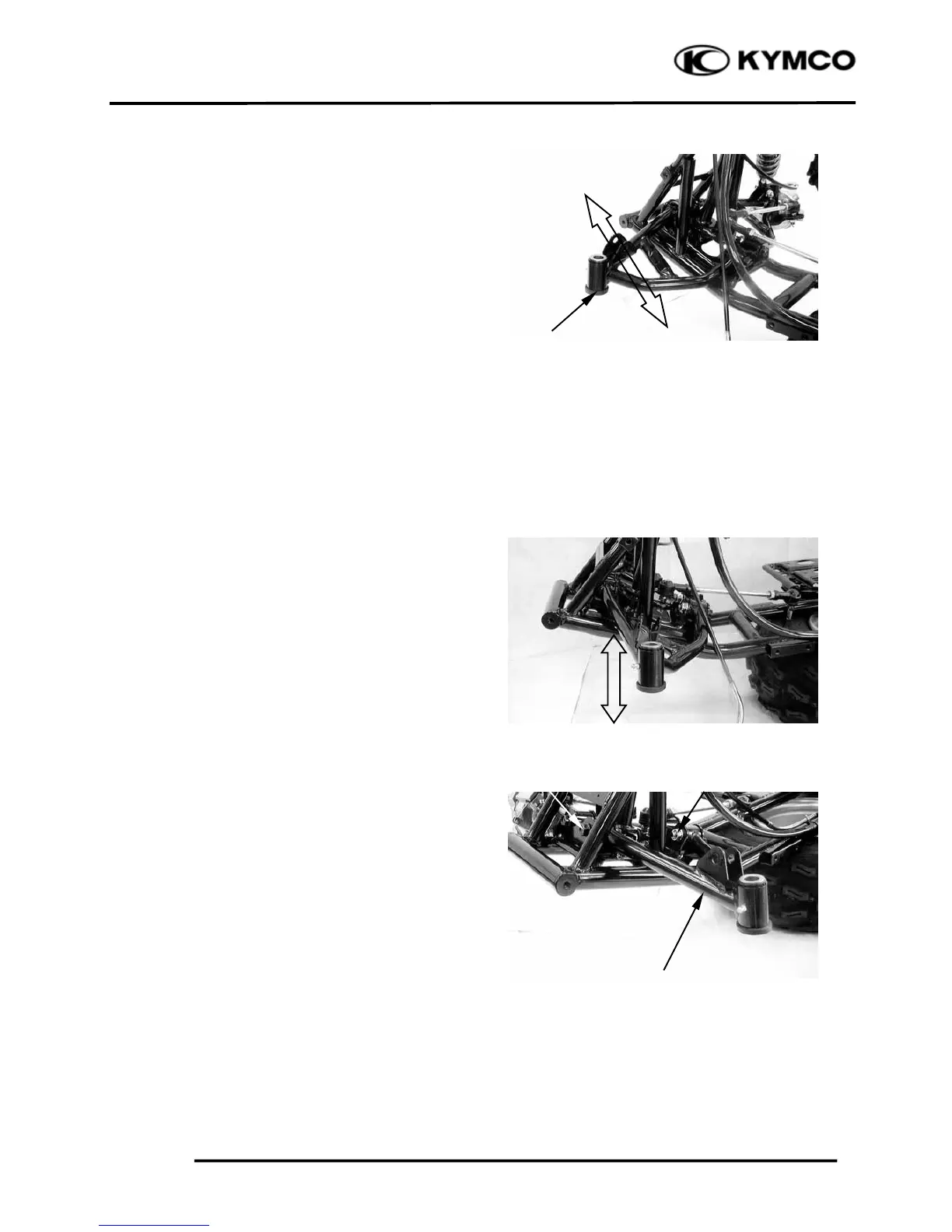

Check the front arm brackets of the frame.
If bent, cracked or damaged, repair or
replace the frame.
Check the tightening torque of the front
arms securing nuts.
Torque: 45 N-m (4.5 kgf-m, 32 lbf-ft)
Check the dust seal.
If wear or damage, replace the dust seal.
Check the front arm side play by moving it
from side to side.
If side play noticeable, replace the bushings.
Check the front arm vertical movement by
moving it up and down.
If vertical movement is tight, binding or
rough, then replace the bushings.
Remove the two bolts and nut attaching the
front arm.
Remove the front arm.
