12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-12

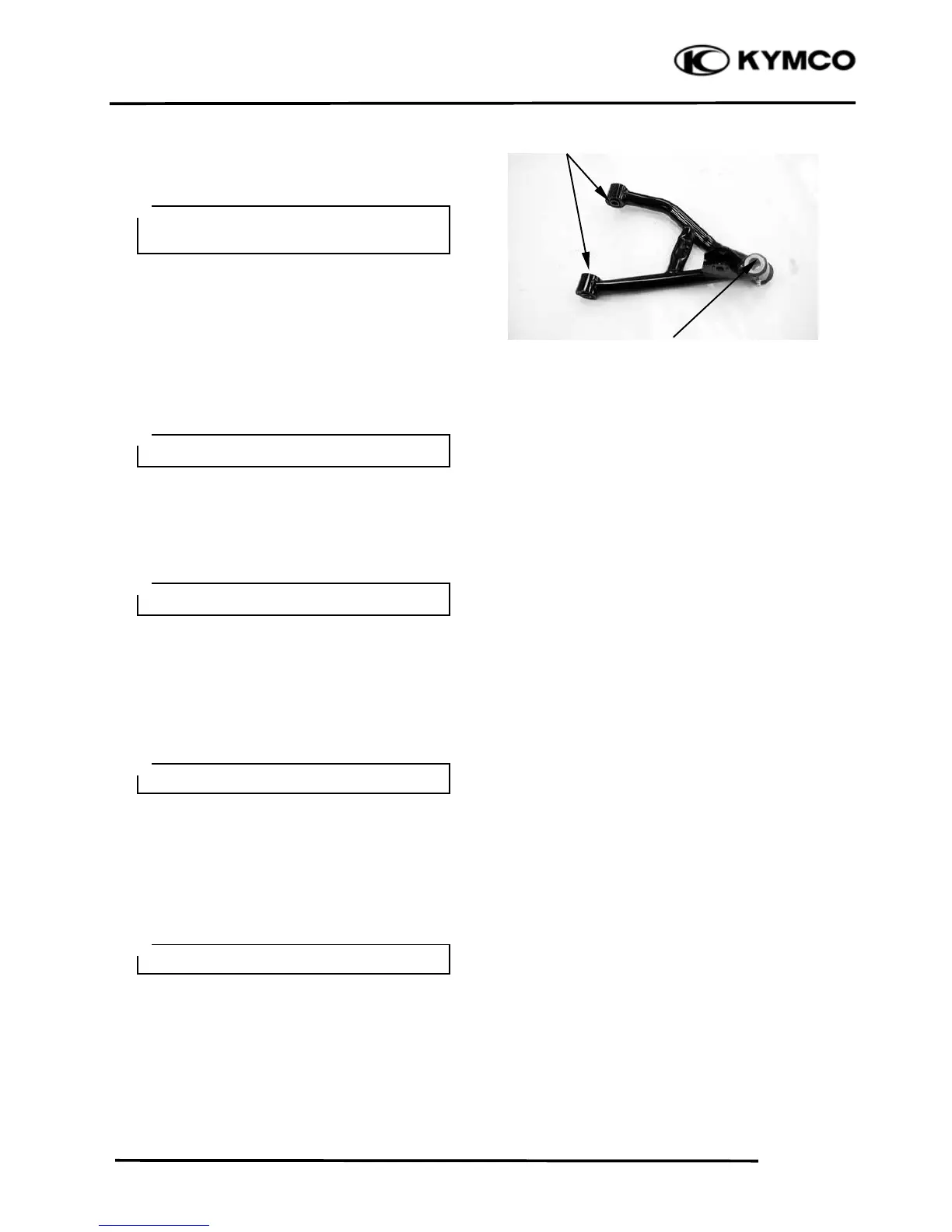

Inspect the front arm.
Replace if cracks, bends or damage.
Inspect bushes.
Replace if wear or damage.
INSTALLATION
Reverse the “REMOVAL” procedures.
Install the front arm onto the frame and
tighten the bolts and nut.
Torque: 45 N-m (4.5 kgf-m, 32 lbf-ft)
Install the steering knuckle into the front
arm and tighten the knuckle arm nut.
Torque: 50 N-m (5 kgf-m, 36 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Install the tie-rod into the steering knuckle
and tighten the nut.
Torque: 35 N-m (3.5 kgf-m, 25 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Do not attempt to straighten a bent arm,
this ma
y
dan
g
erousl
y
weaken the arm.
＊
Bushes
Apply the grease onto the bushes.
＊
Bushes
Apply the grease onto the bushes.
＊
Always use a new cotter pin.
＊
Always use a new cotter pin.
＊
