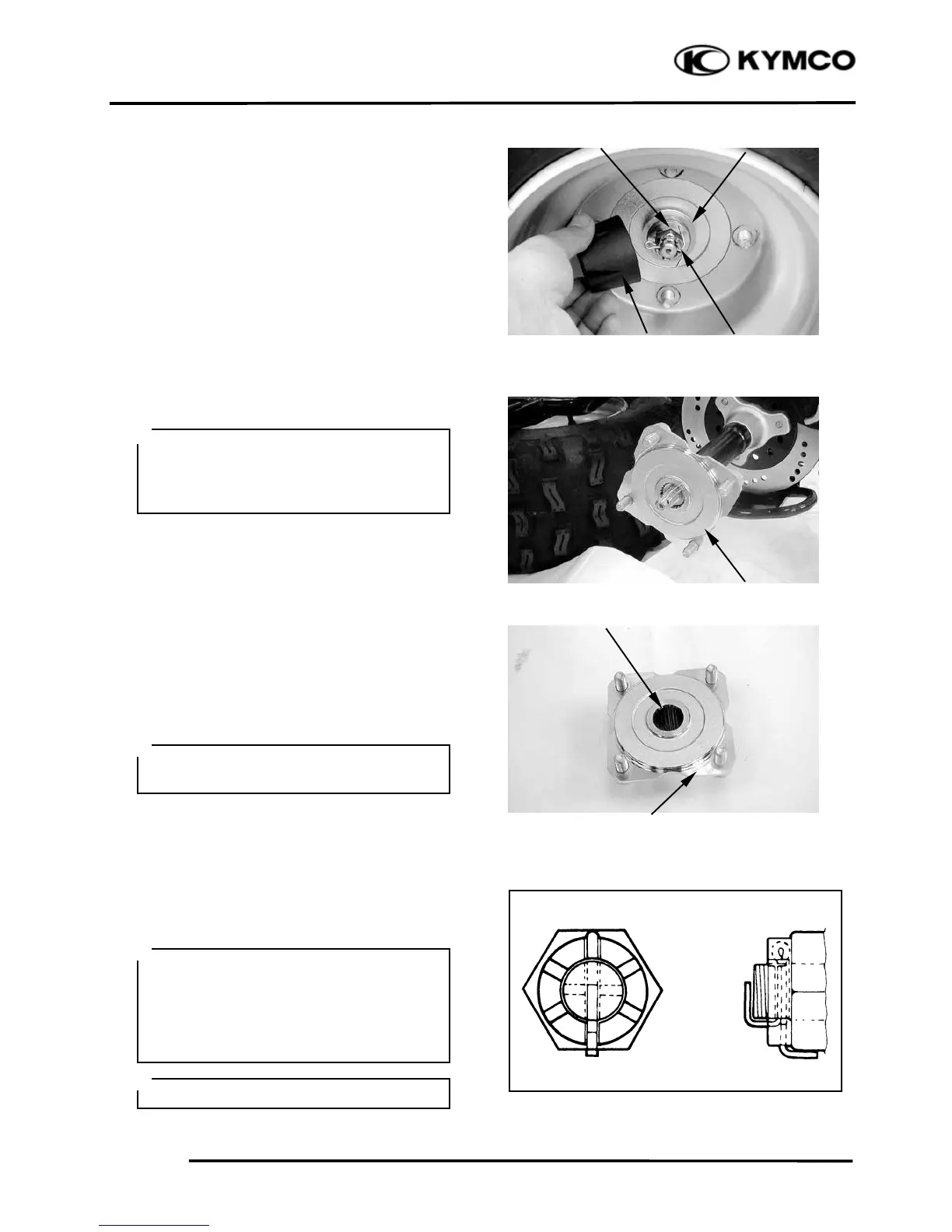

13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13-5
REAR WHEEL HUB REMOVAL
Remove rear wheel nuts. (See page 13-4)
Remove the wheel hub nut cover and cotter
pin.
Loosen nut attaching the wheel hub.
Remove rear wheel. (See page 13-4)
Remove wheel hub nut, washer and wheel
hub.
INSPECTION
Replace it if the wheel hub is cracks or
damage.
Replace it if splines of the wheel hub is
wear or damage.
INSTALLATION
Install wheel hub, washer and wheel hub
nut.
First, tighten the left wheel hub nut and then
tighten the right wheel hub nut.
Torque: 80 N-m (8 kgf-m, 58 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Wheel Hub
Splines
Wheel Hub
Do not loosen the axle nut after torque
tightening. If the axle nut groove is not
aligned with the cotter pin hole, align
groove with the hole by tightening up on
the axle nut.
＊
Always use a new cotter pin.
＊
Apply grease onto the splines of the
wheel hub.
＊
Elevate the rear wheels by placing a
suitable stand under the rear of frame.
Support the machine securely so there is
no danger of it falling over.
＊
