13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13-6

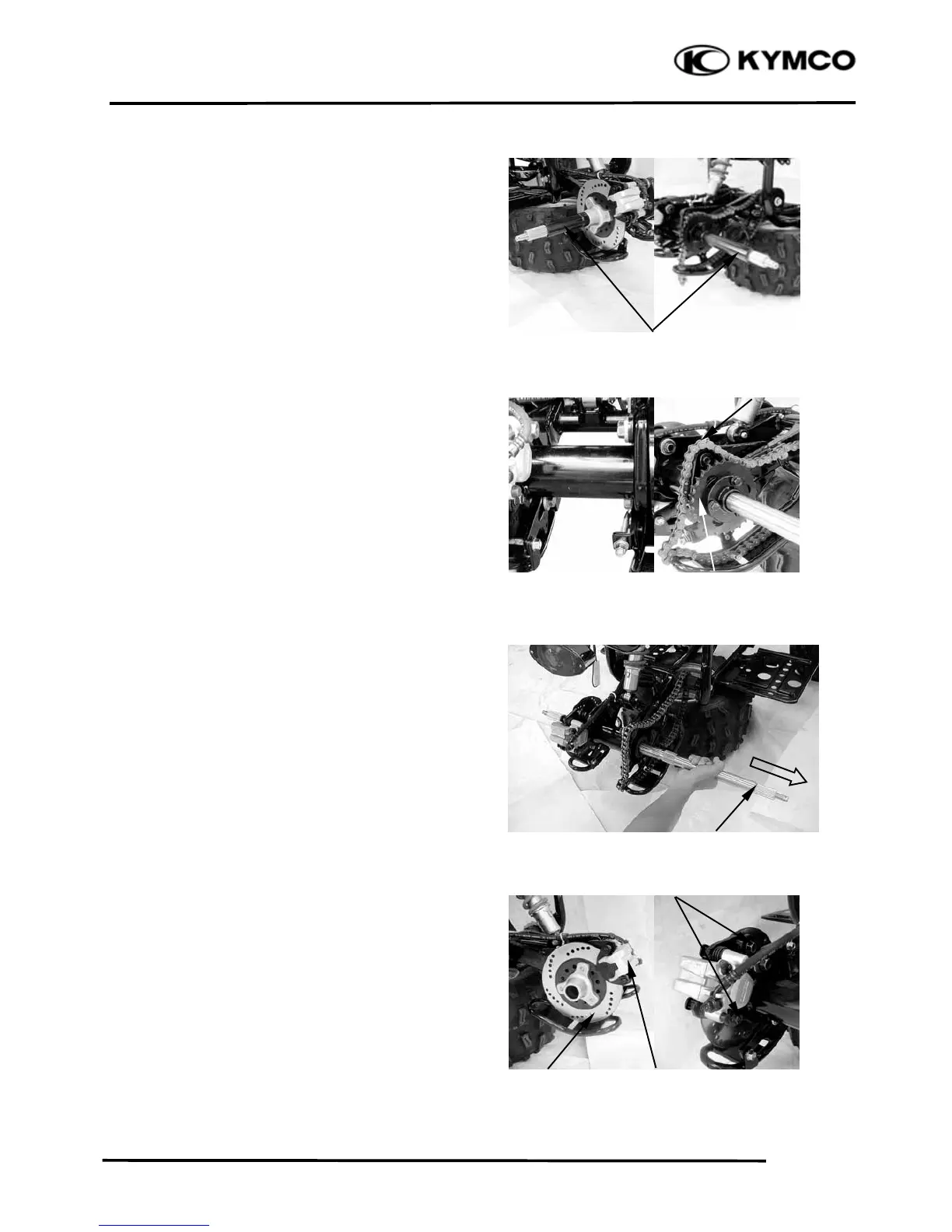

REAR AXLE REMOVAL
Remove the rear wheel hub of the both rear
wheels (See page 13-5).
Remove the collars on the rear axle right
and left side.
Relax the drive chain. (Refer to the “DRIVE
CHAIN SLACK ADJUSTMENT” section
in chapter 3.)
Remove driven sprocket.
Remove the rear axle from right side.
Remove the two bolts and caliper and then
remove brake disk.
Collars
Driven Sprocke
