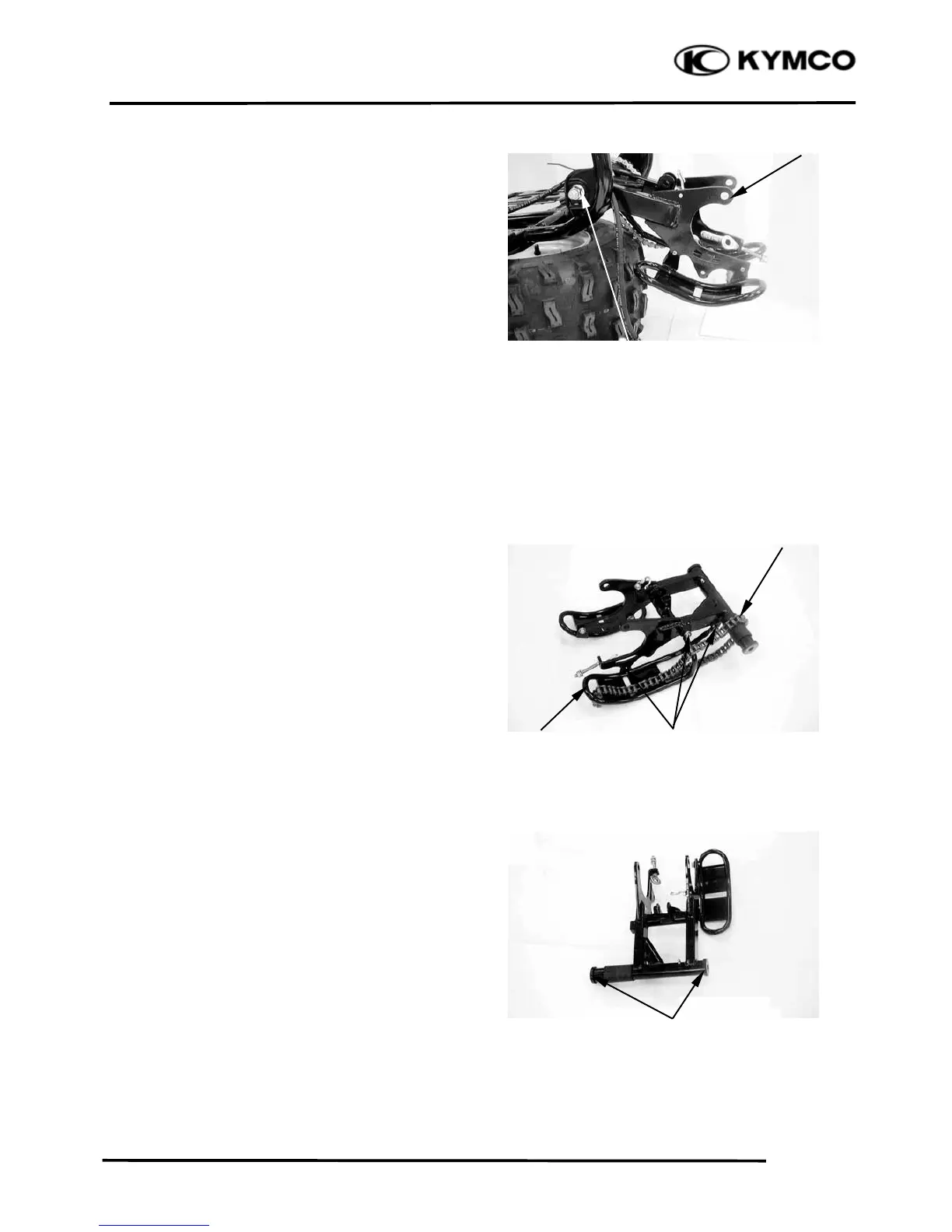

13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13-12
REAR SWING ARM REMOVAL
Remove the nut and pivot shaft, then
remove swing arm.
Remove the three bolts and chain guard.
Remove the drive chain.
Remove thrust covers and collar.
N
u
t
Thrust Covers
Swing Ar
m
Bolts
Drive Chain
Chain Guard
