16. STARTING SYSTEM
16-9

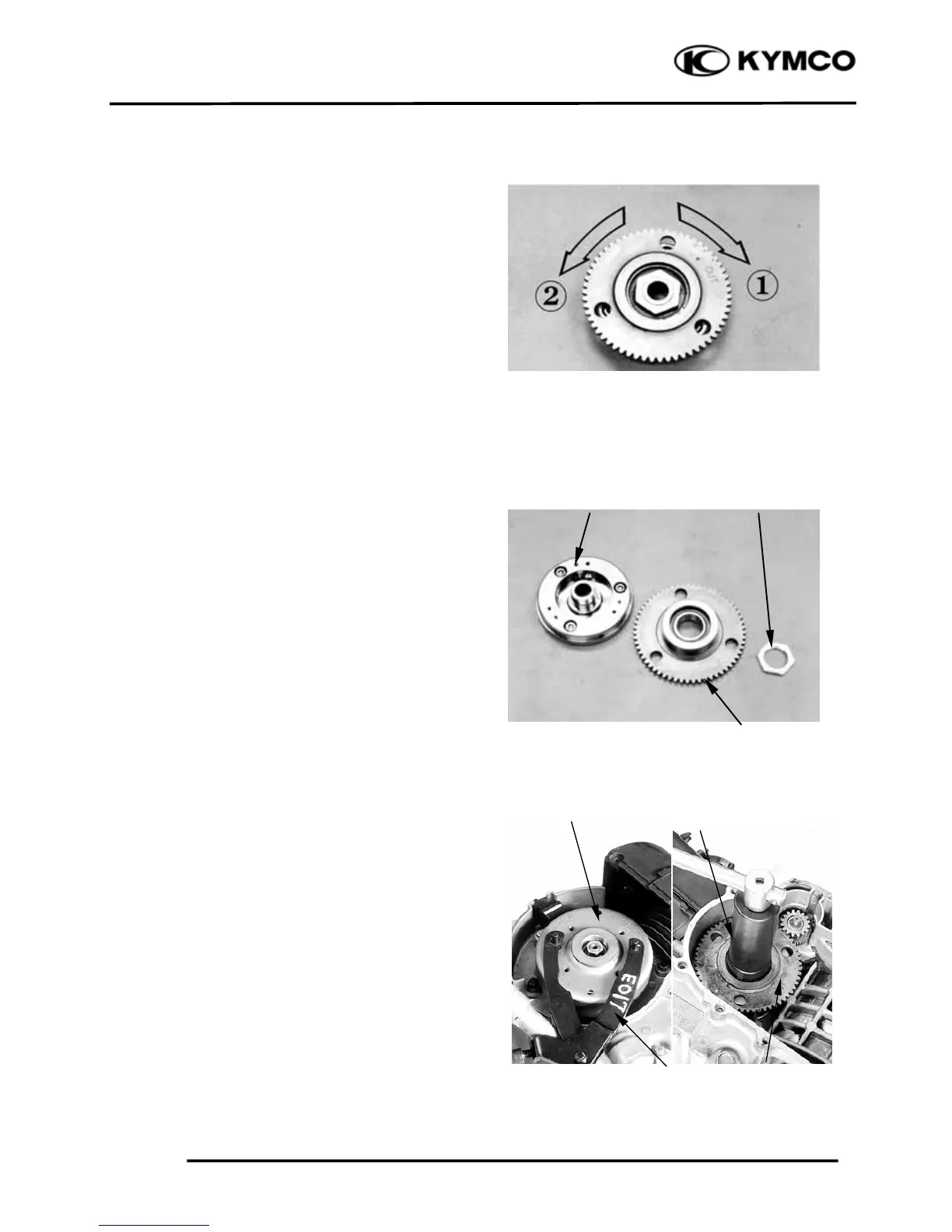

Check starter clutch operation.
Clutch operation checking steps:
Install the starter wheel gear to the starter
clutch, and hold the starter clutch.
When turning the wheel gear clockwise (1)
the starter clutch and the wheel gear
should be engaged. If not, the starter
clutch is faulty. Replace it.
When turning the wheel gear
counterclockwise (2), the wheel gear should
turn freely. If not, the starter clutch is faulty.
Replace it.
INSTALLATION
Install the starter one-way clutch drive gear
onto the starter one-way clutch.
Install the lock nut but do not need tighten
it.
Install the starter clutch assembly onto the
crankshaft.
Hold flywheel using universal holder (refer
to chapter 14) while tighten the starter one-
way clutch drive nut to the specified torque
with the special tool.
Special tool:
Universal holder A120E00017
Lock nut socket wrench A120E00015
Torque:
Starter one-way clutch drive nut:
55 N•m (5.5 kgf•m, 40 lbf•ft)
Starter One-way Clutch
Drive Gear
Starter One-way Clutch
32mm Lock Nu
