17. BULBS REMOVAL/INSTRUMENT/HORN
17-1

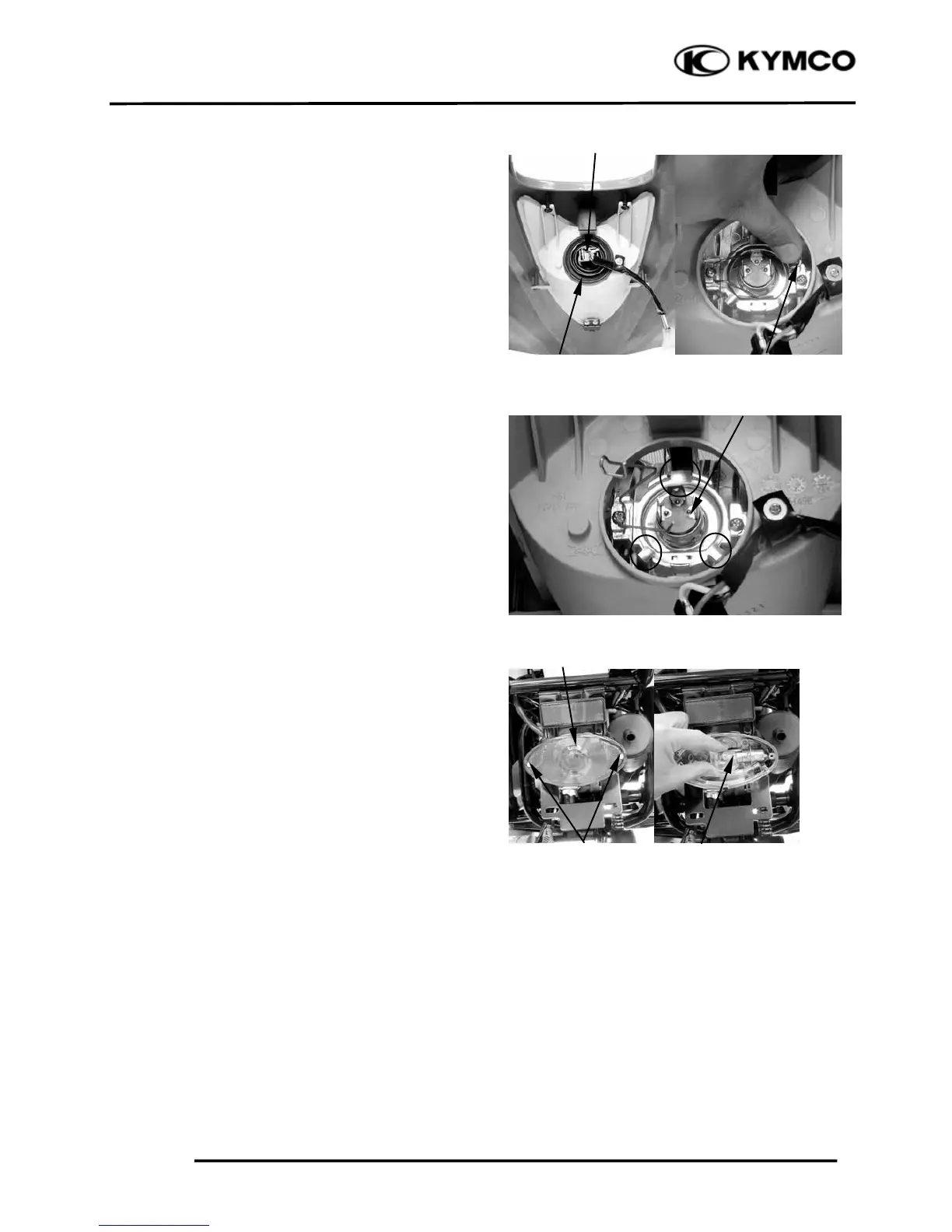

BULBS REMOVAL
HEADLIGHT (ON ROAD ONLY)
Remove the front fender. (See page 2-5)
Disconnect the headlight wire coupler.
Remove the rubber boot from the bulb
socket.
Relax the lock clip to remove the bulb and
replace with a new one.
Install the bulb, aligning the bulb socket
groove with the bulb tab and set the lock
clip.
Install the rubber boot.
Install the front fender in the reverse order
of removal.
TAIL/BRAKE LIGHT
Remove the two screws and then remove
lens.
Remove the bulb by turning it
counterclockwise and replace the bulb with
a new one.
Installation is in the reverse order of
removal.
Headlight Wire Coupler
Lens
Bulb
Rubber Boot
Lock Clip
Bulb
Screws
