12
.
FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-9

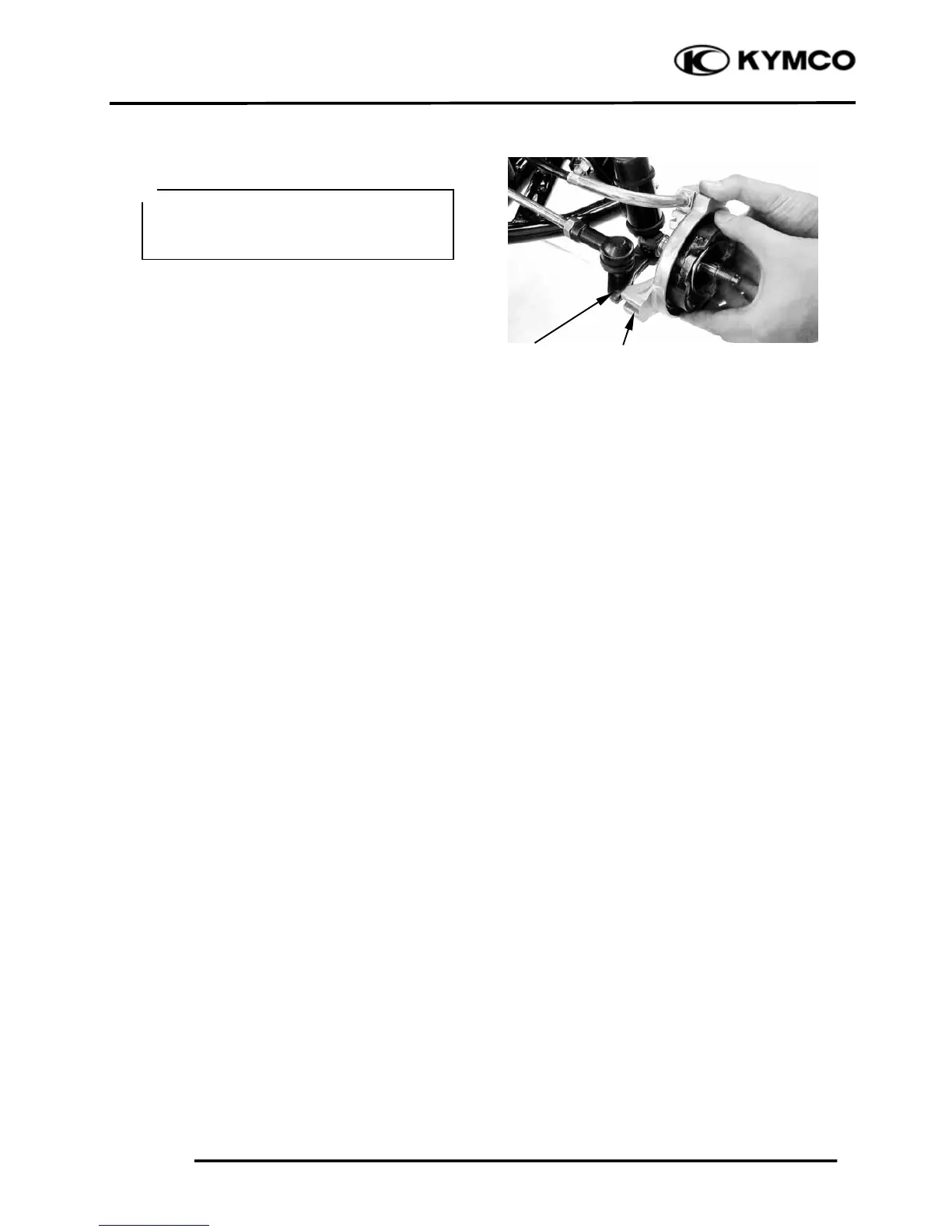

Install the brake shoe plate.
Install front wheel. (See page 12-7)
Adjust the front brake cable free play.
Refer to the “BRAKE LEVER FREE
PLAY” section in the CHAPTER 3.
Brake cable free play:
10
～
20 mm (0.4
～
0.8 in)
Make sure that the boss on the knuckle
correctly engages with the locating slot
on the brake shoe plate.
＊
Boss
Locatin
g
Slo
t
187
