KYMCO Mongoose 90

5. FUEL SYSTEM
5-11

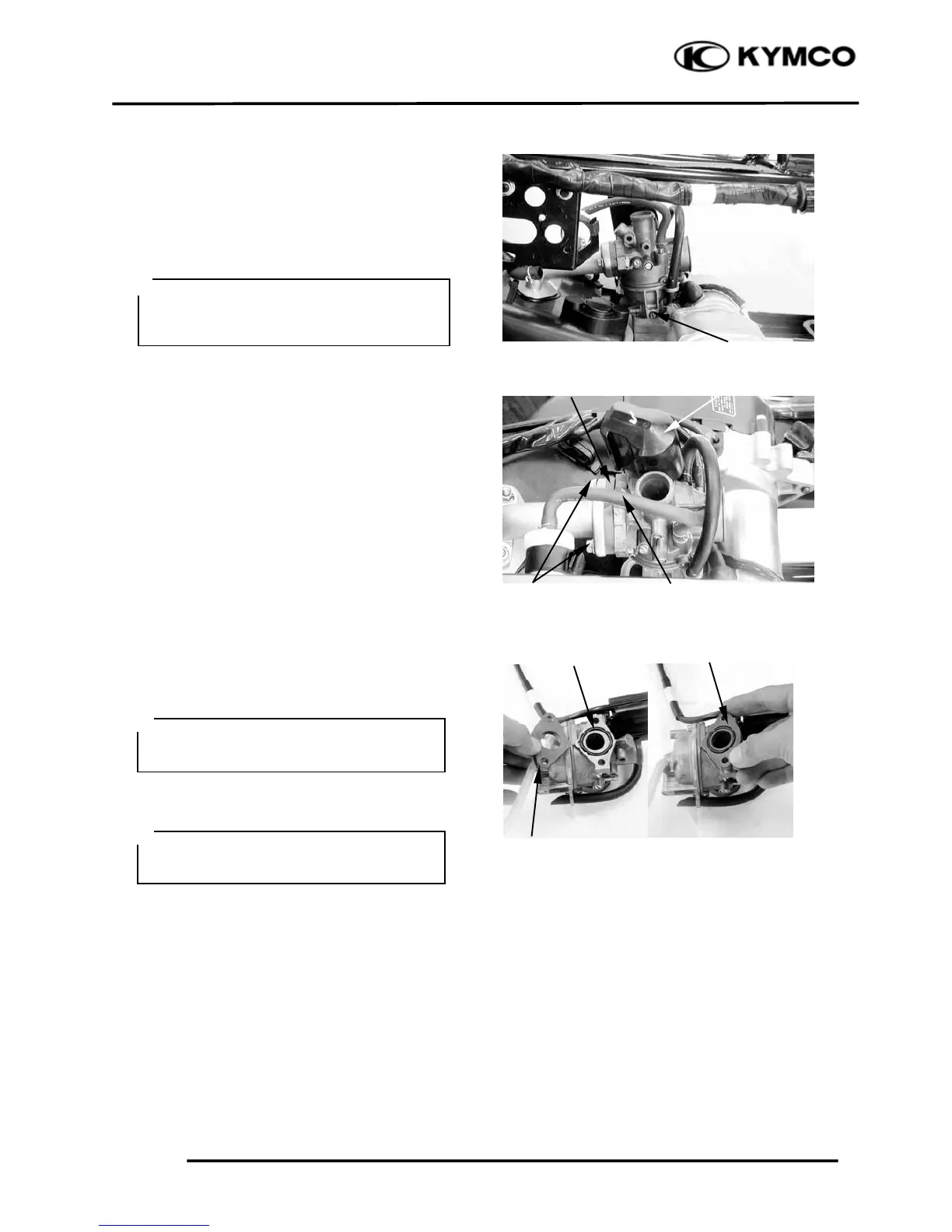

CARBURETOR
REMOVAL
Remove the fuel tank, carburetor cap and air
filter. (Refer to chapter 5)
Loosen the drain plug to drain the gasoline
from the float chamber.
Disconnect the fuel tube from carburetor and
auto bystarter leads.
Remove the two bolts (nuts) attaching
carburetor, then remove carburetor and
insulator.
INSTALLATION
Reverse the “REMOVAL” procedures.
Check the carburetor insulator and O-rings
for wear or damage.
Fuel Drain Plug
• Keep sparks and flames away from the
work area.
• Drain gasoline into a clean container.
＊
Bolts
Fuel Tube
Auto Bystarte
r
Insulato
r
When installation, do not allow foreign
particles to enter the carburetor.
＊
When installation, be sure the insulato
r
O-ring face the intake manifold.
＊
Insulato
r
Insulator O-ring
O-ring
