3
. INSPECTION/ADJUSTMENT
3-21

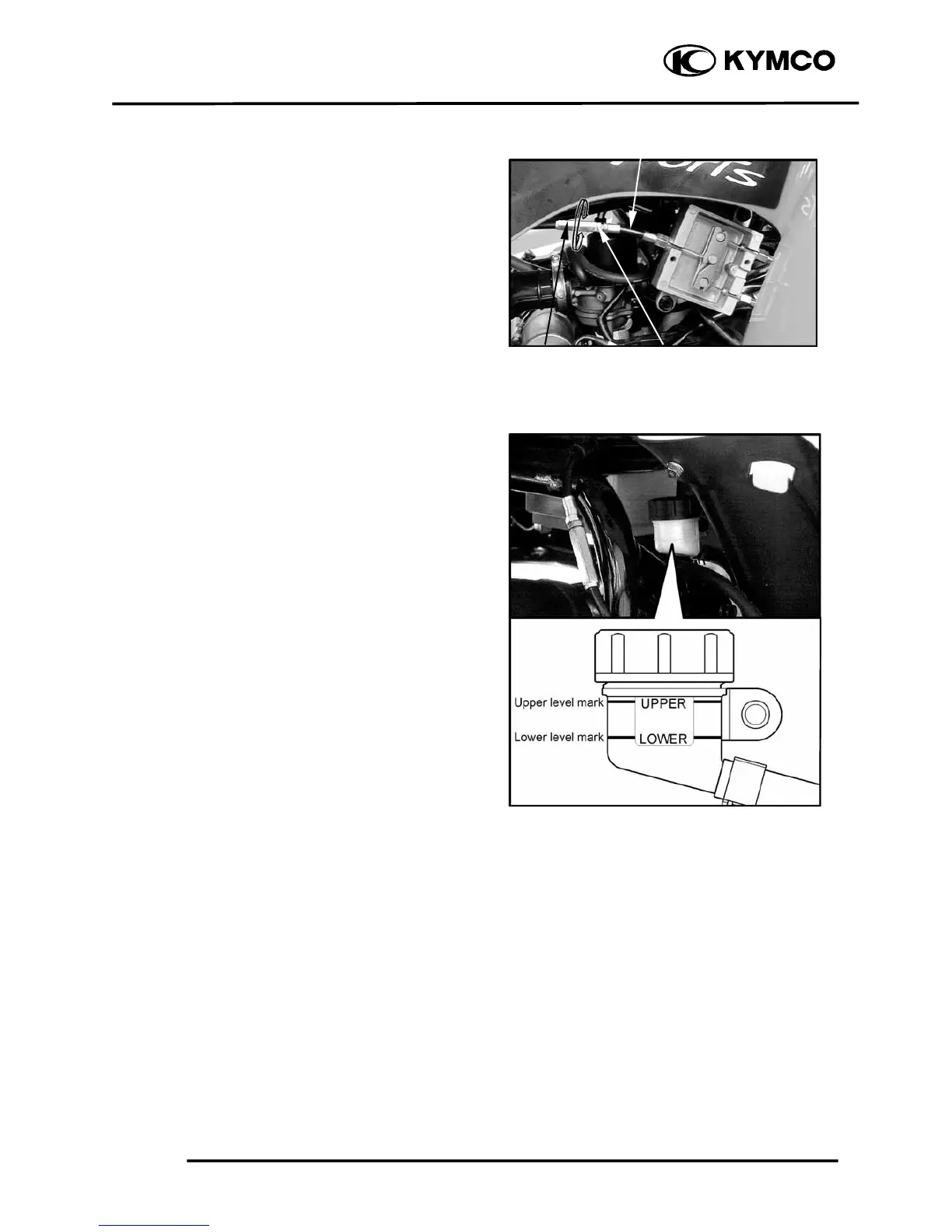

7. Loosen the locknut. (Brake pedal cable)
8. Turn the adjusting bolt until the specified
free play is obtained.
9. Tighten the locknut. (Brake pedal cable)
BRAKE FLUID
Check if the fluid level is below the lower
level mark through the inspection window.
Locknu
t
Adjusting Blo
t
Brake Pedal Cable
66
68
