3. INSPECTION/ADJUSTMENT
3-5
If the oil pump is not synchronized properly,
the following will occur:
• Excessive white smoke or hard starting
due to pump control lever excessively
open
• Seized piston due to pump control lever
insufficiently open
AIR CLEANER
AIR CLEANER
REPLACEMENT/CLEANING
(90cc/70cc/50cc-4T)

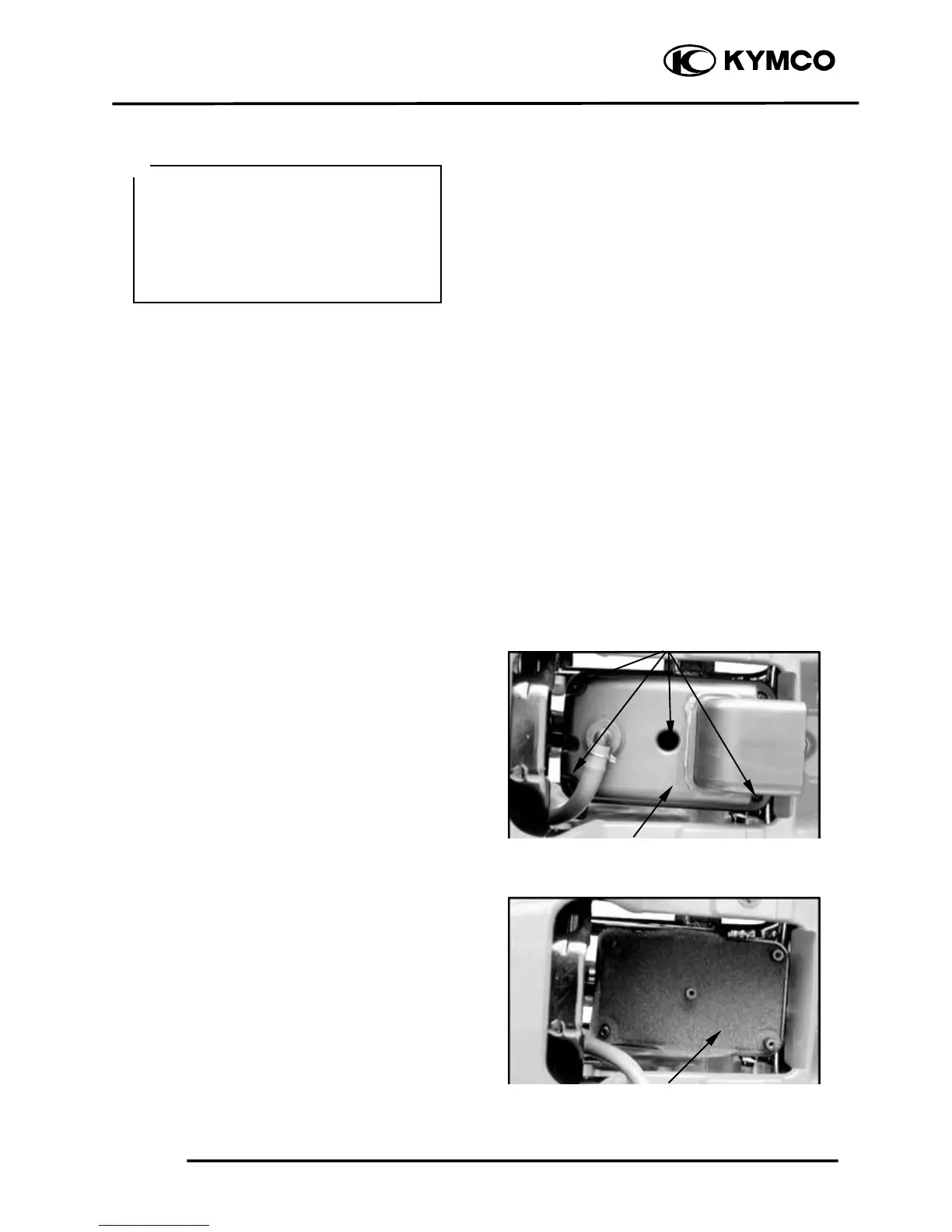

To replace the air cleaner
1. Remove the seat. (See page 2-3.)
2. Remove the five screws and then remove
air filter case cover.
3. Remove the air filter element, and
separate it from the box.
Screws
Air Filter Case Cove
Reference tip alignment within 1mm of
index mark on open side is acceptable.
However, the aligning mark on the
control lever must never be on the
closed side of the index mark, otherwise
engine damage will occur because of
insufficient lubrication.
＊
