KYMCO Mongoose 90 Service Manual

5. FUEL SYSTEM
5-9

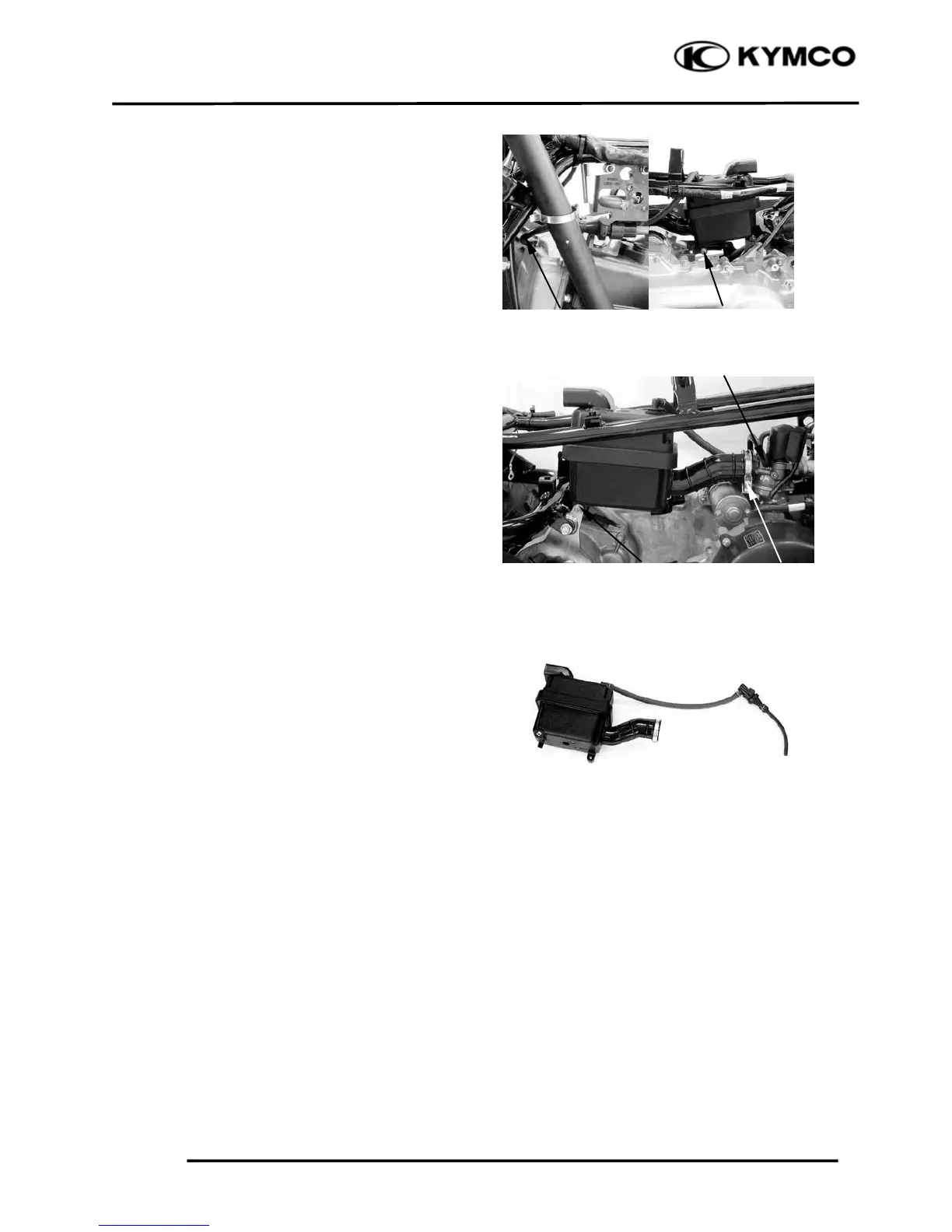

AIR CLEANER (90cc/70cc/50cc-4T)
CLEANING
Refer to “AIR CLEANER” section in the
chapter 3.
REMOVAL
Remove front fender. (See page 2-5)
Disconnect the oil recycle tube from cylinder
head and frame.
Remove the bolt at the air cleaner left side.
Loosen the screw at the band and remove bolt at
the air cleaner right side, then remove air cleaner.
INSTALLATION
Reverse the “REMOVAL” procedures.
Oil Recycle Tube
Bol
t
Bol
t
Screw
Band
