13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13-14
INSTALLATION
Reverse the “REMOVAL” procedure.
Apply grease onto the collar, bush, pivot
shaft and thrust cover.
Install the swing arm and tightening the nut.
Torque: 70 N-m (7 kgf-m, 50 lbf-ft)
Install the shock absorber and tightening the
bolts.
Torque: 40 N-m (4 kgf-m, 29 lbf-ft)

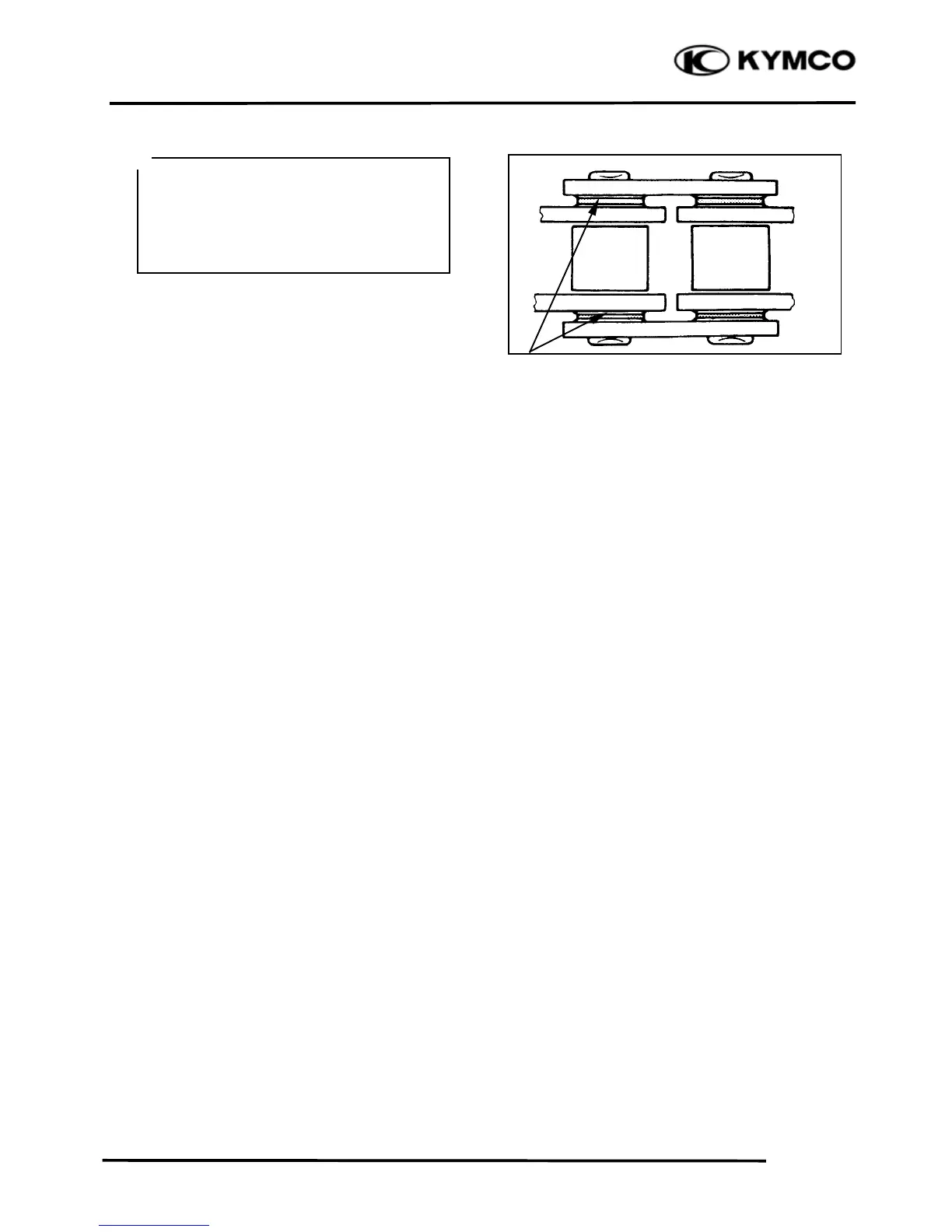

This machine has a drive chain with
small rubber O-rings between the chain
plates. Steam cleaning, high-pressure
washes, and certain solvent can damage
these O-rings. Use only kerosene to clean
the drive chain.
＊
O-ring
To Next Page
