2. FRAME COVERS/EXHAUST MUFFLER
2-10
ATV 50

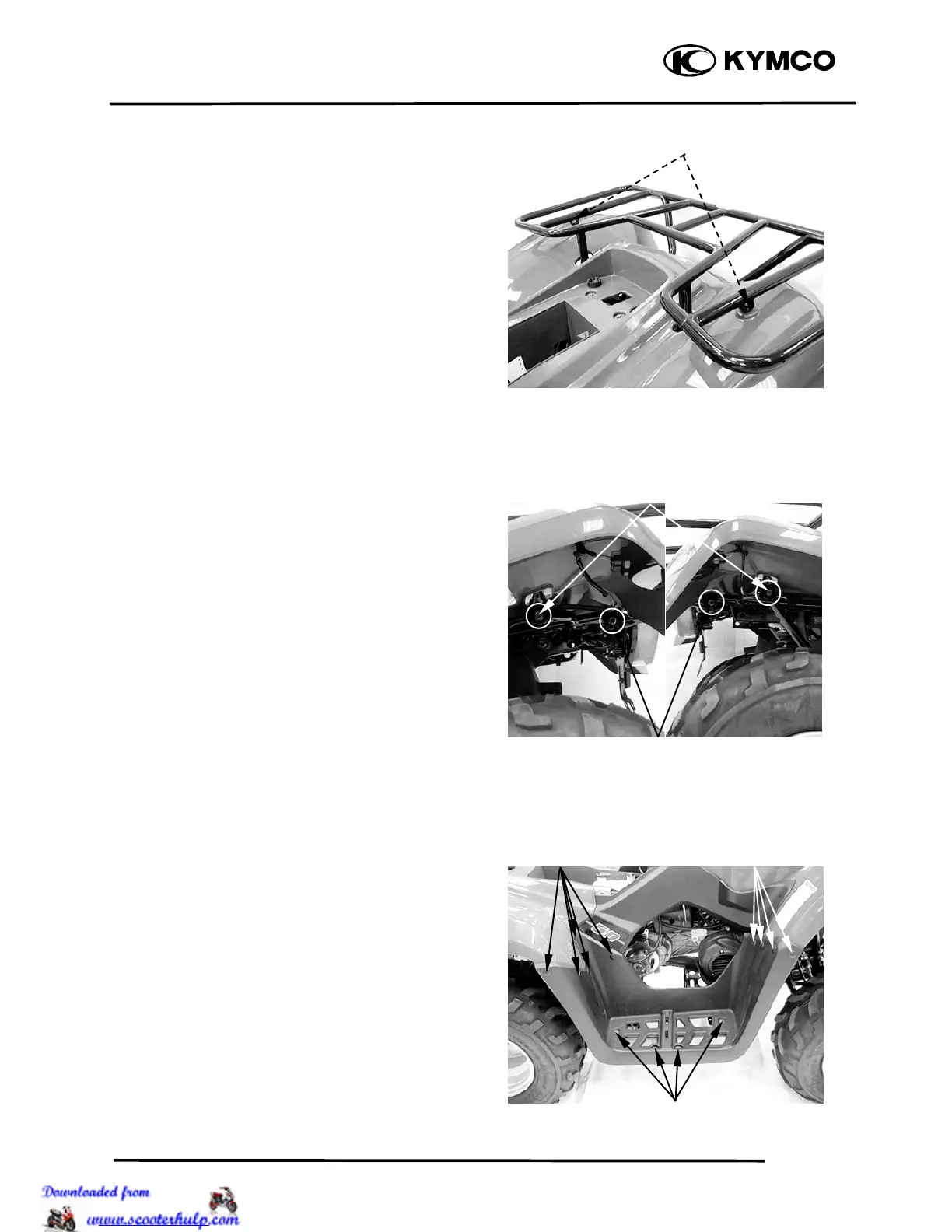

REAR CARGO RACK
REMOVAL/INSTALLATION
Remove the two bolts under the rear fender.
Remove the two mounting bolts and two
mounting nuts from the rear cargo rack
right/left side under the rear fender.
Installation is in the reverse order of
removal.
RIGHT/LEFT FOOTBOARD
REMOVAL/INSTALLATION
Remove 9 fasteners, 4 mounting bolts and
the right footboard.
Bolts
Mounting Bolts
Mounting Bolts
Fasteners Fasteners
Mounting Nuts
To Next Page
