2. FRAME COVERS/EXHAUST MUFFLER
2-11
ATV 50

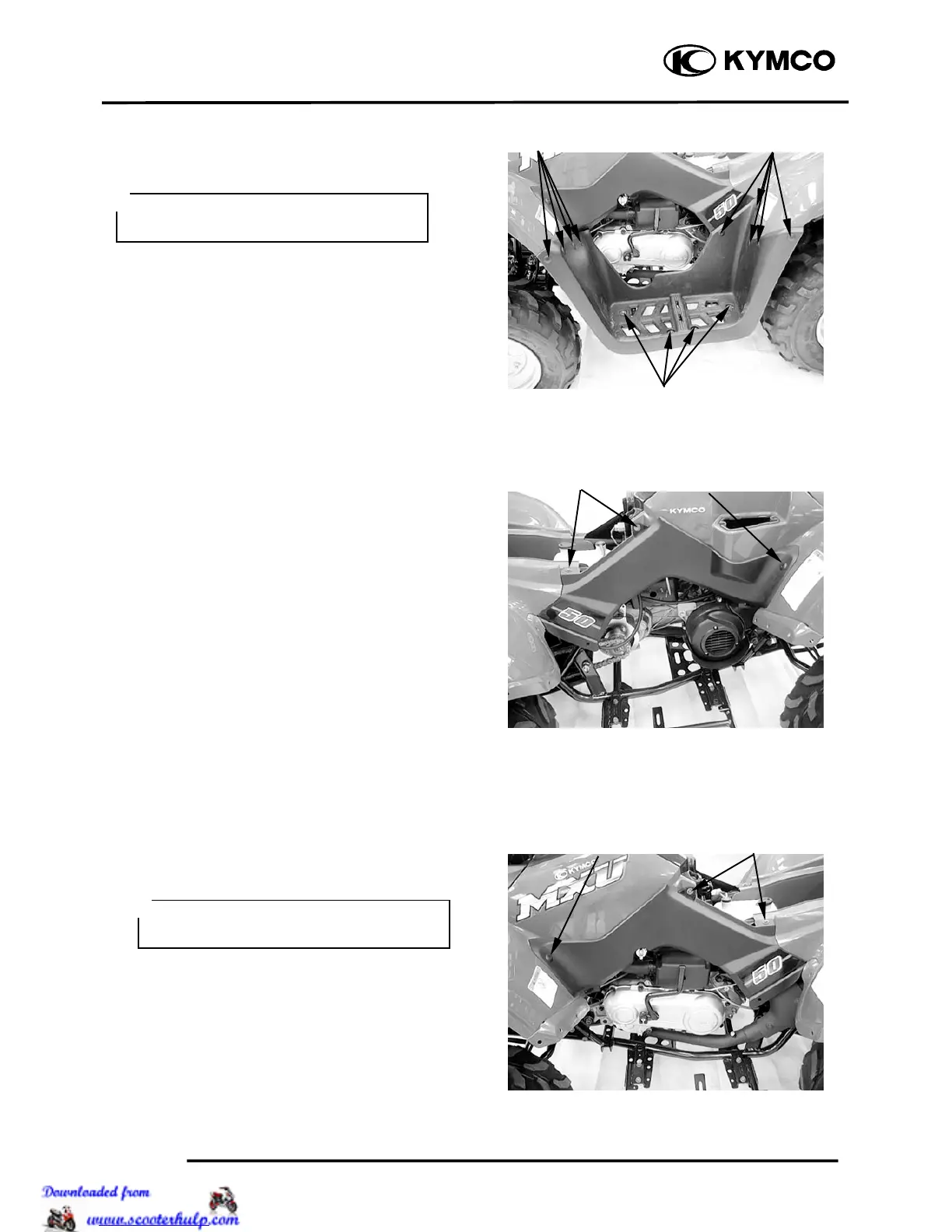

Remove 9 fasteners, 4 mounting bolts and
the left footboard.
Installation is in the reverse order of
removal.
RIGHT/LEFT SIDE COVER
REMOVAL/INSTALLATION
Open the seat (see page 2-8).
Remove the right/left footboard (see page 2-
10).
Remove the two bolts, fastener and right
side cover.
Remove the two bolts, fastener and left side
cover.
Installation is in the reverse order of
removal.
During removal, do not pull the joint
claws forcedly to avoid damage.
＊
During removal, do not pull the joint
claws forcedly to avoid damage.
＊
Mounting Bolts
Fasteners Fasteners
Fastener Bolts
Bolts Fastene
