2. FRAME COVERS/EXHAUST MUFFLER
2-15
ATV 50

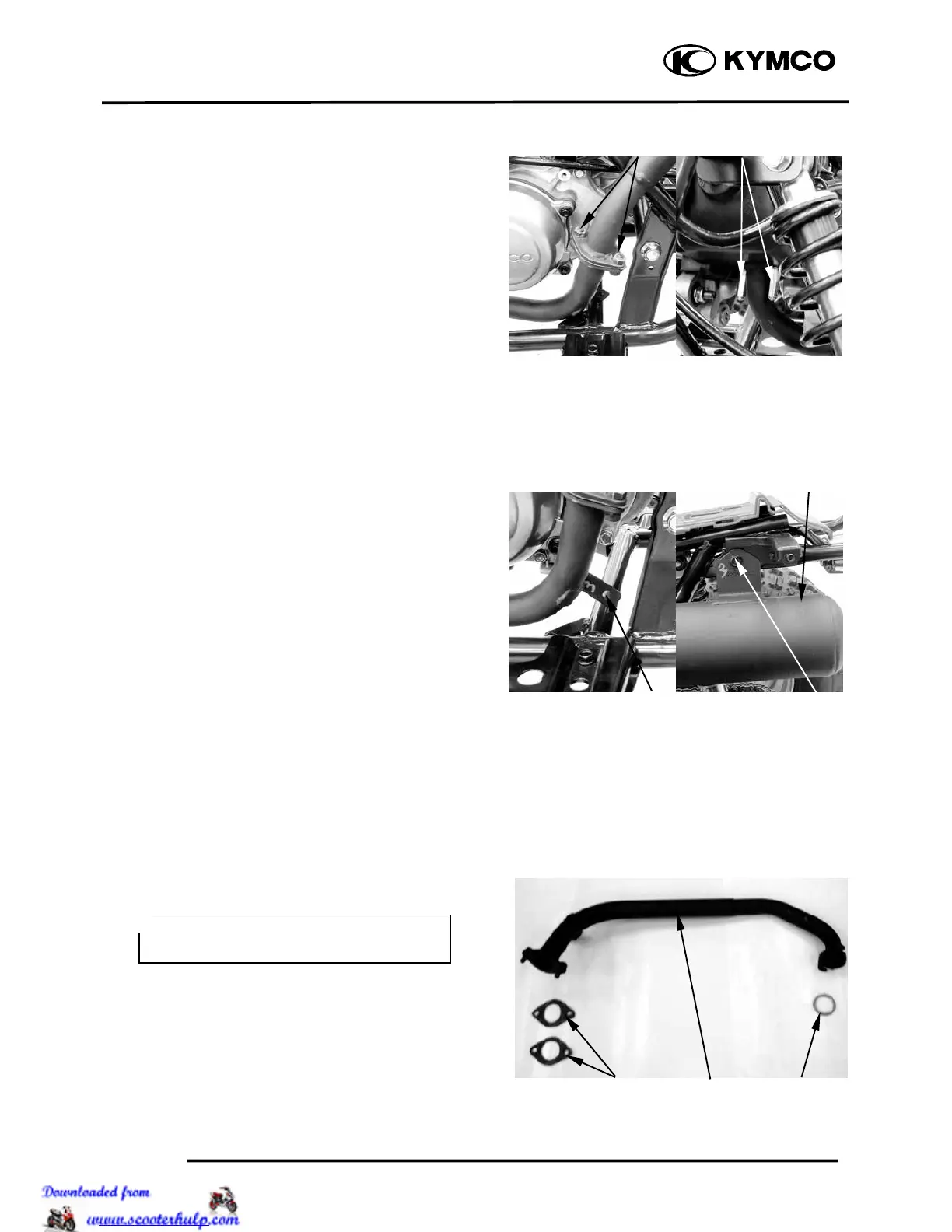

EXHAUST MUFFLER (MX’ER
50)
REMOVAL
Remove the two nuts attaching the exhaust
muffler.
Remove the two nuts attaching the exhaust
pipe.
Remove the exhaust muffler lock bolts.
Remove the exhaust muffler and them
remove exhaust pipe.
When installing, first install the exhaust
pipe onto the engine and then install the
exhaust muffler.
Torque:
Exhaust muffler lock bolt:
3.3 kgf-m (33 N-m, 24 lbf-ft)
Exhaust muffler joint lock nut:
1.2 kgf-m (12 N-m, 9 lbf-ft)
Bol
t
Bol
t
Muffle
r
Exhaust Pipe
Gaske
t
Gaske
t
N
u
t
s
N
u
t
s
Be sure to install a new exhaust muffle
r
gasket.
＊
