2. FRAME COVERS/EXHAUST MUFFLER
2-16
ATV 50

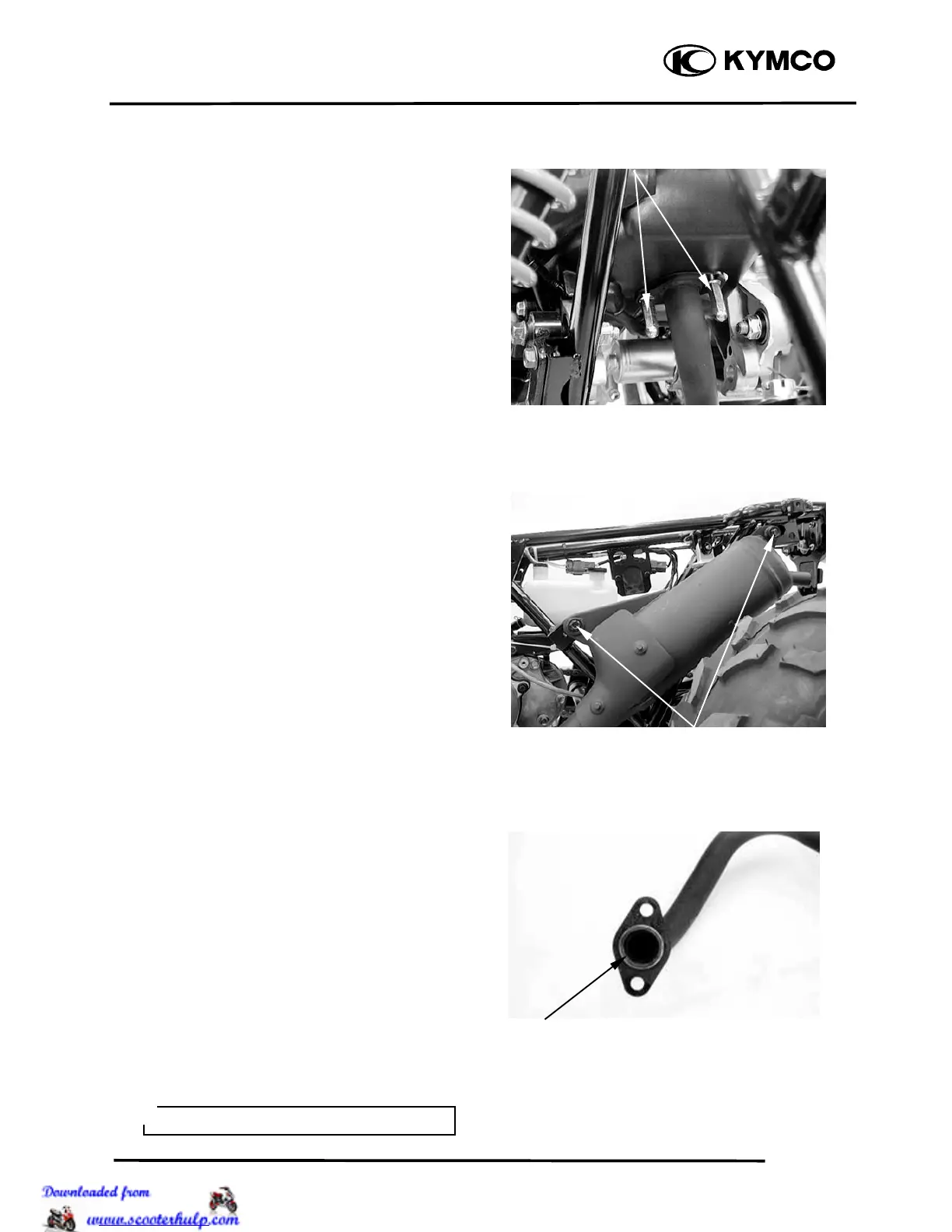

EXHAUST MUFFLER (MXU 50
REVERSE/MXU 50)
REMOVAL
Remove the two nuts attaching the exhaust
pipe and cylinder head.
Remove the two bolts attaching the exhaust
muffler, then remove the exhaust muffler.
Inspect the gasket.
If the exhaust gas leaks, the gasket should
be replaced.
Install by reversing the removal sequence.
Torque:
Exhaust muffler lock bolt:
3.3 kgf-m (33 N-m, 24 lbf-ft)
Exhaust muffler joint lock nut:
1.2 kgf-m (12 N-m, 9 lbf-ft)
Bol
t
Bol
t
N
u
t
s
Gaske
t
Be sure to install a new exhaust gasket.
＊
