5. FUEL SYSTEM
5-4
ATV 50

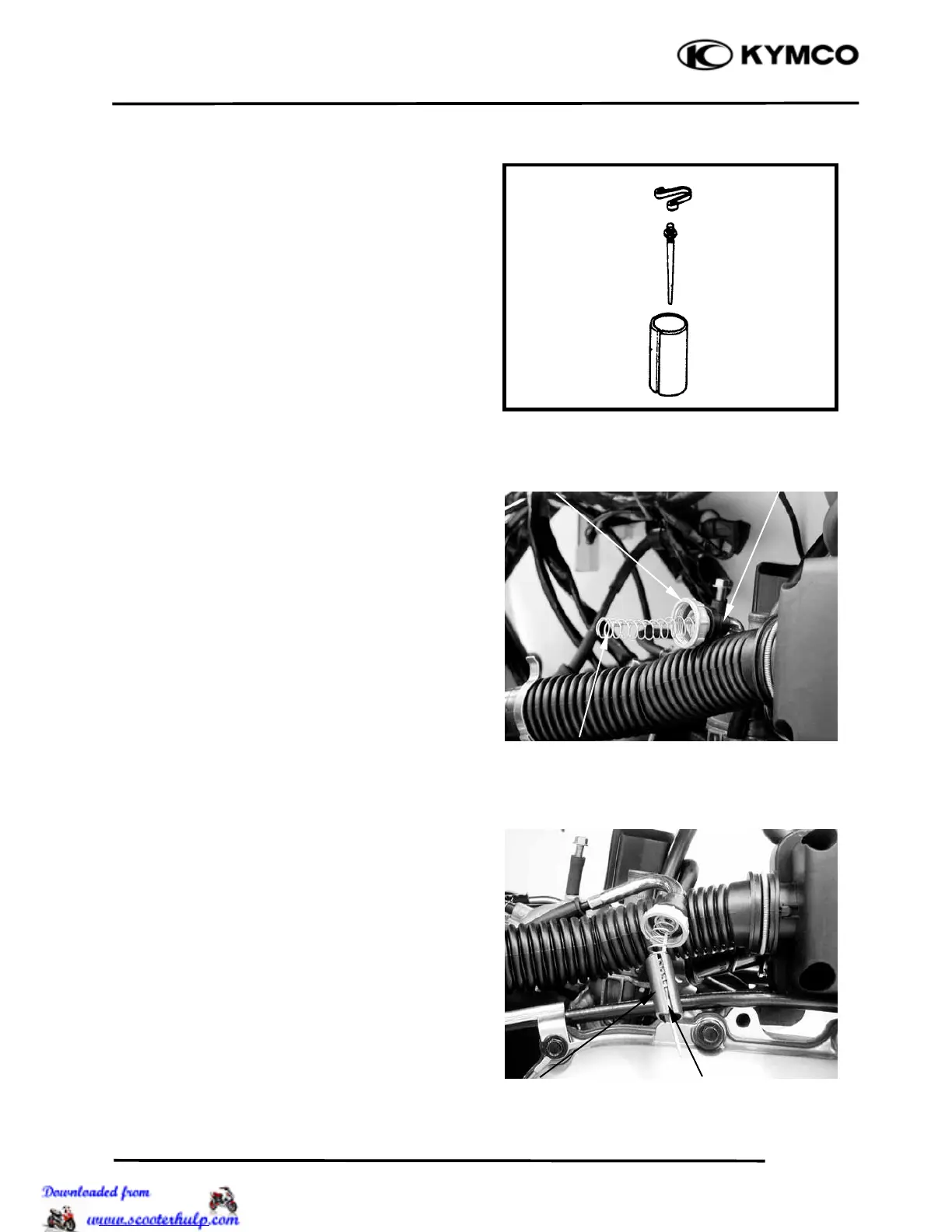

Remove the jet needle by removing the
needle clip.
Check the jet needle and throttle valve for
wear or damage.
THROTTLE VALVE INSTALLA-TION
Install the jet needle on the throttle valve and
secure with the needle clip.
Install the rubber seal on the throttle cable
and then install the carburetor cap and
throttle valve spring.
Connect the throttle cable to the throttle
valve.
