5. FUEL SYSTEM
5-5
ATV 50

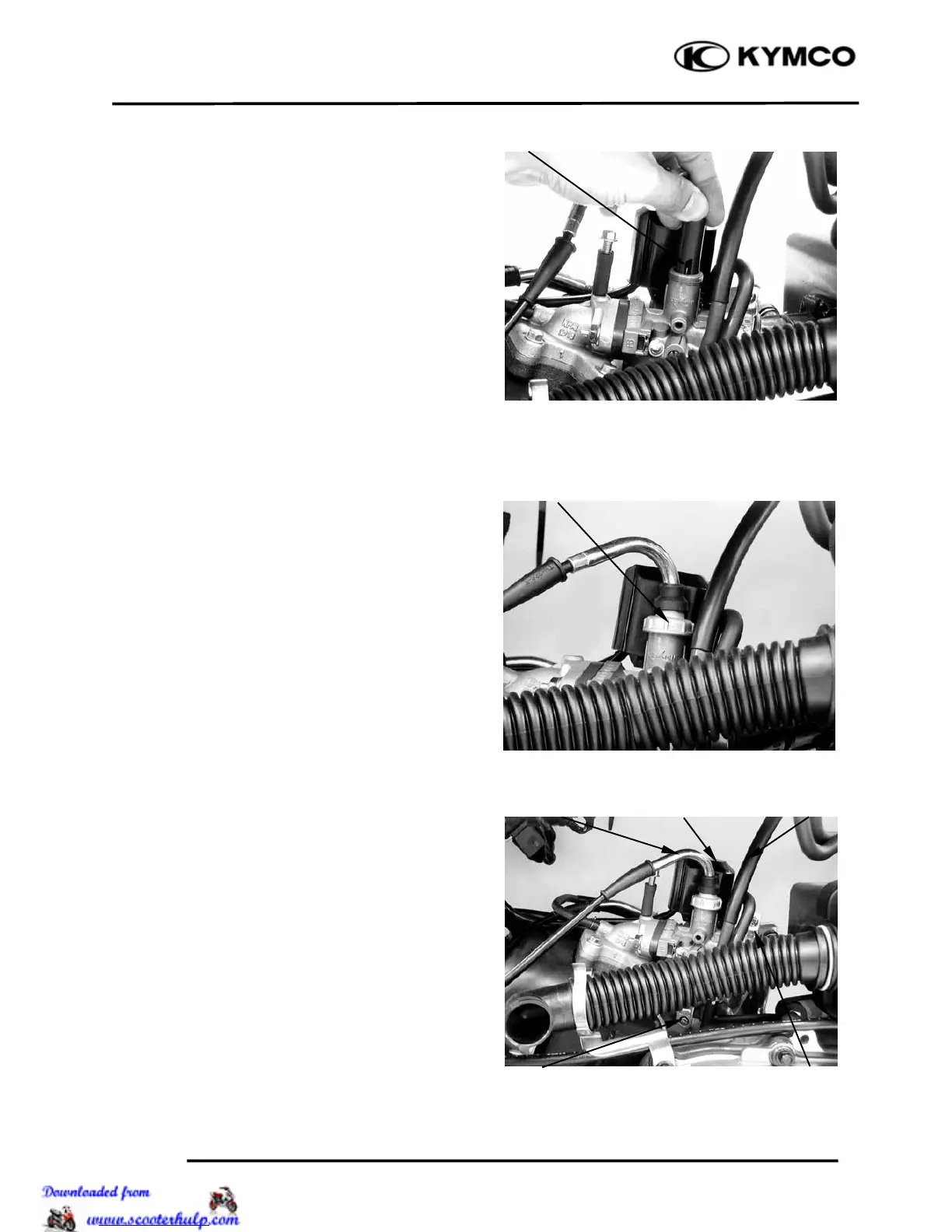

Install the throttle valve by aligning the
groove in the throttle valve with the throttle
stop screw.
Tighten the carburetor cap.
After installation, perform the following
adjustments and inspections.
• Throttle cable free play (
Ö
3-3)
• Idle speed adjustment (
Ö
3-7)
CARBURETOR REMOVAL
Remove the air cleaner by removing the air
cleaner band screw and attaching bolts.
Disconnect the fuel tube.
Loosen the drain bolt to drain fuel from the
carburetor.
Disconnect the auto bystarter wire
connector.
Groove
Carburetor Cap
Drain Bol
To Next Page
